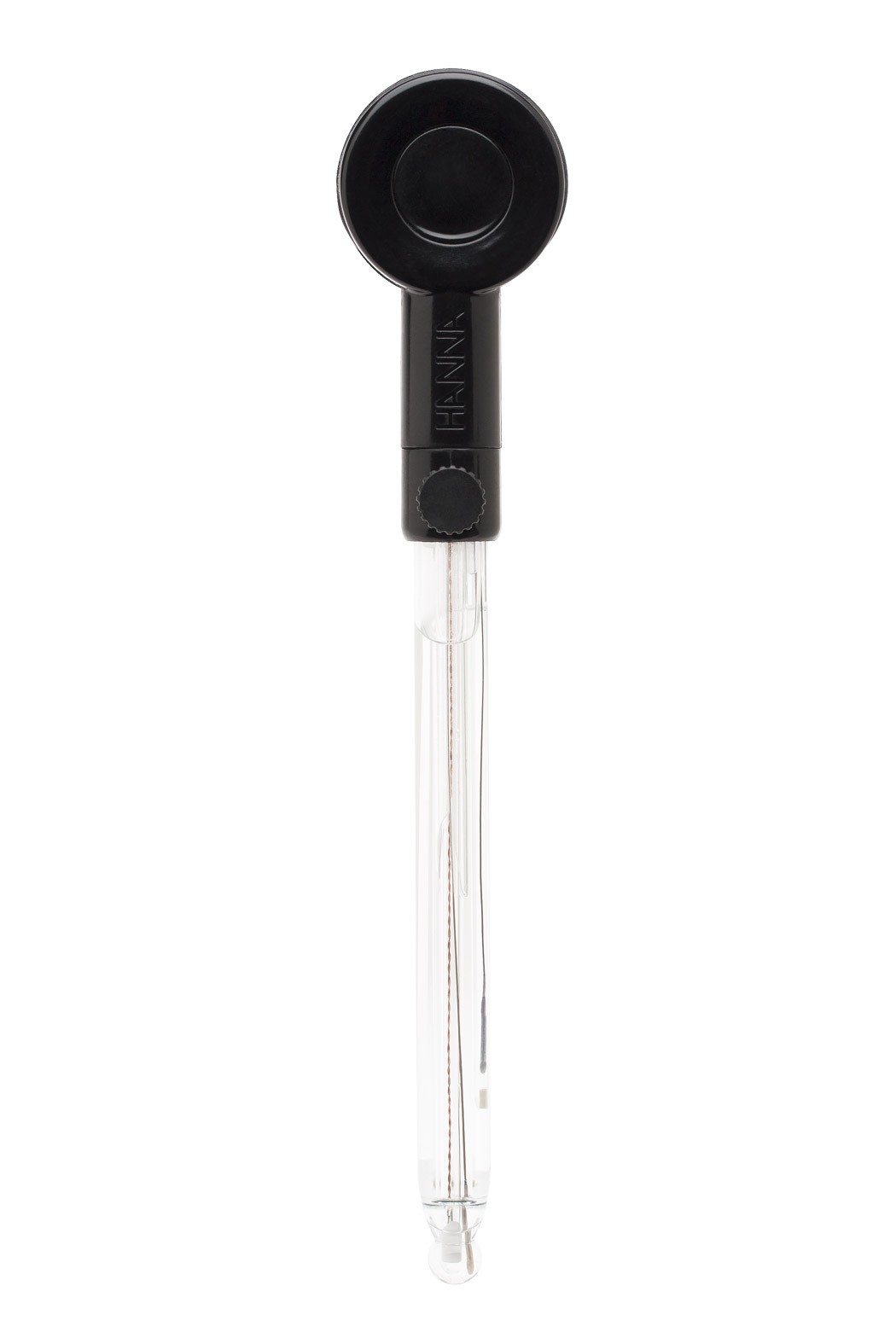

אלקטרודת HALO העשוייה זכוכית ובעלת טכנולוגיית בלוטות' למדידת PH. תוצרת HANNA INSTRUMENTS דגם HI11312

HALO™ is the world's first professional pH probe with Bluetooth® Smart technology (Bluetooth® 4.0). It is a high quality, double junction, refillable glass pH probe with a built-in temperature sensor that can be used virtually anywhere: in the field, laboratory or classroom. Its flexibility and ease of use will revolutionize the way pH is measured. HALO™ transmits measurement data directly to an iPad® (not included) running the Hanna Lab App.

תיאור

One press Connect: Easily connect to the Hanna Lab App (required for use) at the press of a button via Bluetooth® wireless technology (10 m range (33’)).

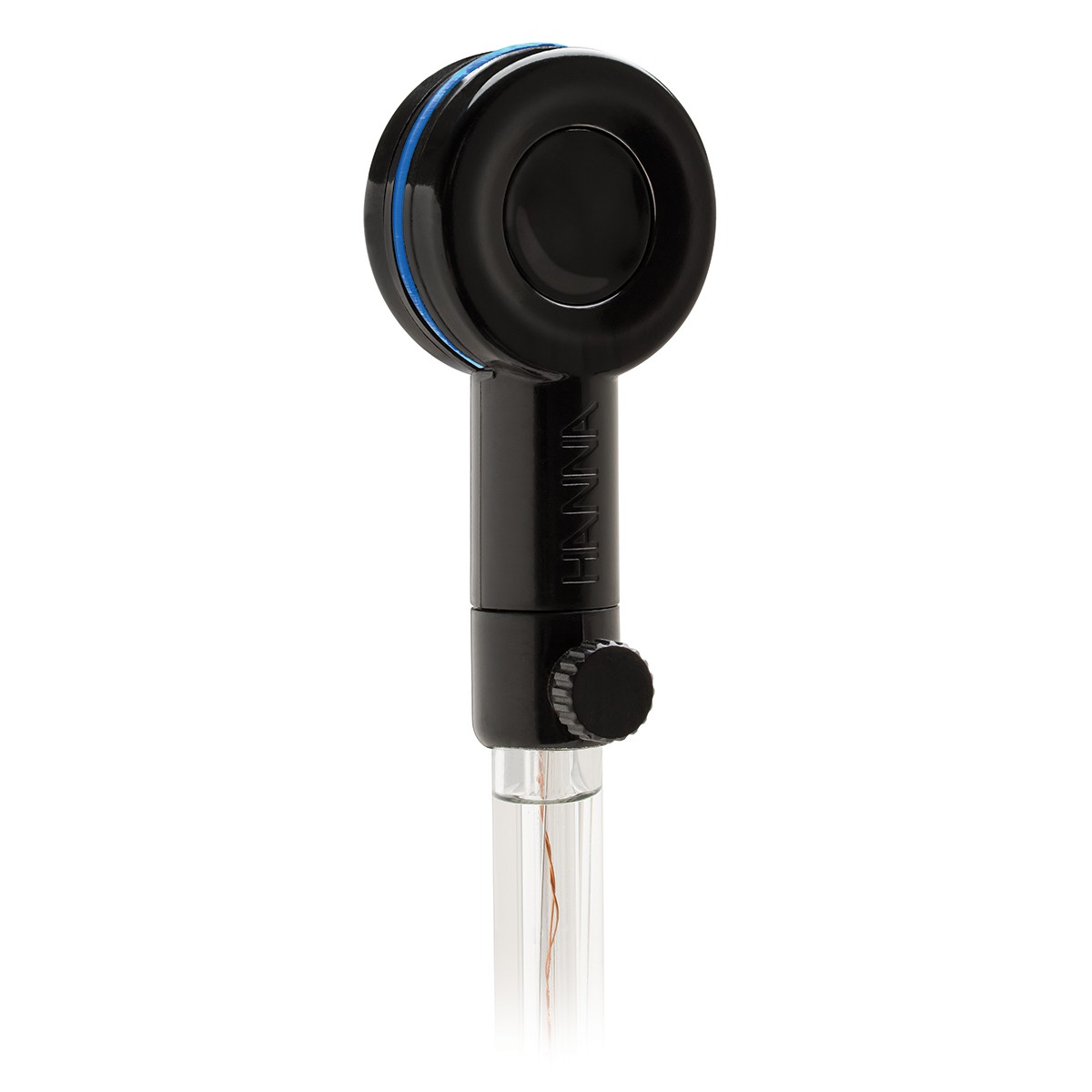

Status Indicator: Visible from a distance, LED "halo" light indicates probe is active and transmitting.

Easy to replace battery: The HALO's CR2032 lithium ion battery is easily replaceable and lasts for approximately 500 hours.

One Button Sample Tagging: Pressing either the button on the HALO™ pH probe or the probe icon in the Hanna Lab App will tag sample data for easy reference.

Integrated Temperature Sensor: Ensures the calibration and measurement is automatically temperature compensated, thus eliminating error.

Stored Calibration Data: HALO™ stores calibration information; no additional calibration is needed when switching to another iPad.

The Hanna Lab App turns an iPad into a full-featured pH meter when used with the Hanna HALO™ pH probe with Bluetooth Smart technology. Functions include calibration, measurement, data logging, graphing and data sharing. Measurement and logging of pH and temperature at one second intervals start as soon as the probe is connected. Measurements can be displayed alone on the display, with tabulated data, or as a graph. The graph can be panned and zoomed with the iPad’s pinch-to-zoom technology for enhanced viewing.

Probe calibration using up to 5 buffers: The Hanna Lab App incorporates a probe calibration using up to five pH buffers that are automatically recognized and temperature corrected to 25.0ºC during calibration.

Real-time Data: Display of pH and temperature updated every second. Readings are automatically saved to a history file every hour, limited only by the available memory on the iPad.

Fluid, Dynamic Graphing: Measurement can be displayed with tabulated data or a graph on the display. The graph axes may be expanded using the iPad’s pinch and zoom technology for enhanced viewing.

Connecting the HALO™ probe to the Hanna Lab App is simple. Tap the Bluetooth®icon in the top-right corner to view all available HALO™ probes then press the button on your HALO™ probe. Select the newly discovered HALO™ probe from the list of available probes. If a previously associated probe is in discovery mode when the app is opened it will connect to that probe automatically.

GLP (Good Laboratory Practice): Displays date and time of current calibration, probe offset, and average slope, along with calibrated buffers, mV values, temperature and slopes between each buffer.

Calibration Reminder & Measurement Alarms: Alerts you when HALO™ needs calibration, and if the measurement threshold is exceeded.

Log & Share Data: Saved log files may be annotated with measurement specific information. Share data via email in CSV format.

Help & Tutorials: Demo probe mode helps you explore features of the Hanna Lab App. General app information, General HALO™information, pH tutorial, maintenance tutorial, and contact information are available in help.

Hanna Lab App Features/Benefits:

Connects to HALO via Bluetooth® 4.0Up to five-point pH calibration with seven standard pH buffers availableCalibration reminder

  • Alerts you when HALO needs calibration

Real-time data

  • Displays pH and temperature updated every second

Basic GLP

  • Displays date and time of current calibration along with probe offset and average slope

Full GLP

  • Displays date and time of current calibration, probe offset and average slope along with calibrated buffers, mV values, temperature and slopes between each buffer

Fluid, dynamic graphing

  • Measurement can be displayed with tabulated data or as a graph. The graph axes may be expanded using the iPad’s pinch and zoom technology for enhanced  viewing

Measurement alarms

  • Alerts you if the measurement threshold is exceeded

One button sample tagging

  • Pressing either the probe icon in the Hanna Lab App or button on the HALO pH probe will tag sample data for easy reference

Data-logging with custom annotations

  • Saved log files may be annotated with measurement  specific  information
  • Data is autosaved every hour

Four ways to save and share data:

  • All data since last autosave
  • Annotations only
  • All data within a timed interval
  • Annotations only within a timed interval

Share data via email in CSV format

Help and tutorials:

  • Demo probe mode to help explore features of the Hanna Lab App
  • General app information
  • General HALO information
  • pH tutorial
  • Maintenance tutorial
  • Contact information

Specifications

Body Material glass
Reference double, Ag/AgCl
Junction / Flow Rate ceramic, single / 15-20 μL/h
Electrolyte 3.5M KCl
Range pH: 0.00 to 13.00
Max Pressure 0.1 bar
Tip Shape spheric
Diameter 12 mm
Body Length / Overall Length 120 mm / 195 mm
Recommended Operating Temperature 0 to 50°C (32 to 122°F)
Environment 0 to 50°C (32 to 122°F), RH max 95% non-condensing
Solution Temperature -5 to 80°C (23 to 176°F)
Temperature Sensor yes
Matching Pin no
Amplifier yes
Digital yes
Connection Bluetooth Smart (Bluetooth 4.0), 10 m (33') range
Battery Type/Life CR2032 3V lithium ion / approximately 500 hours
Applications laboratory general purpose
Ordering Information HI11312 (HALO) is supplied with storage solution, cleaning solution, pH 7.01 buffer solution, pH 4.01 buffer solution, fill solution, battery, quality certificate and instruction sheet.

Hanna Lab App Measurement Specifications

Range -2.000 to 16.000 pH / ±800 mV / -20.0 to 120.0 ºC *(will be reduced to actual probe/sensor limits)
Resolution 0.1, 0.01, 0.001 pH / 1, 0.1 mV
Accuracy (@25ºC/77ºF) ±0.005 pH / ±0.3 mV
Calibration Points Up to five points with seven standard buffers
Calibration Buffers 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH
Temperature Compensation Automatic from -5.0 to 100.0 ºC / 23.0 to 212.0 ºF *(will be reduced to actual probe/sensor limits)
Compatibility/System Requirements iPad 3rd generation or newer (including mini) with iOS 7.1+ and Bluetooth 4.0 technology
Download Information Hanna Lab App is available free from the App Store
