תיאור

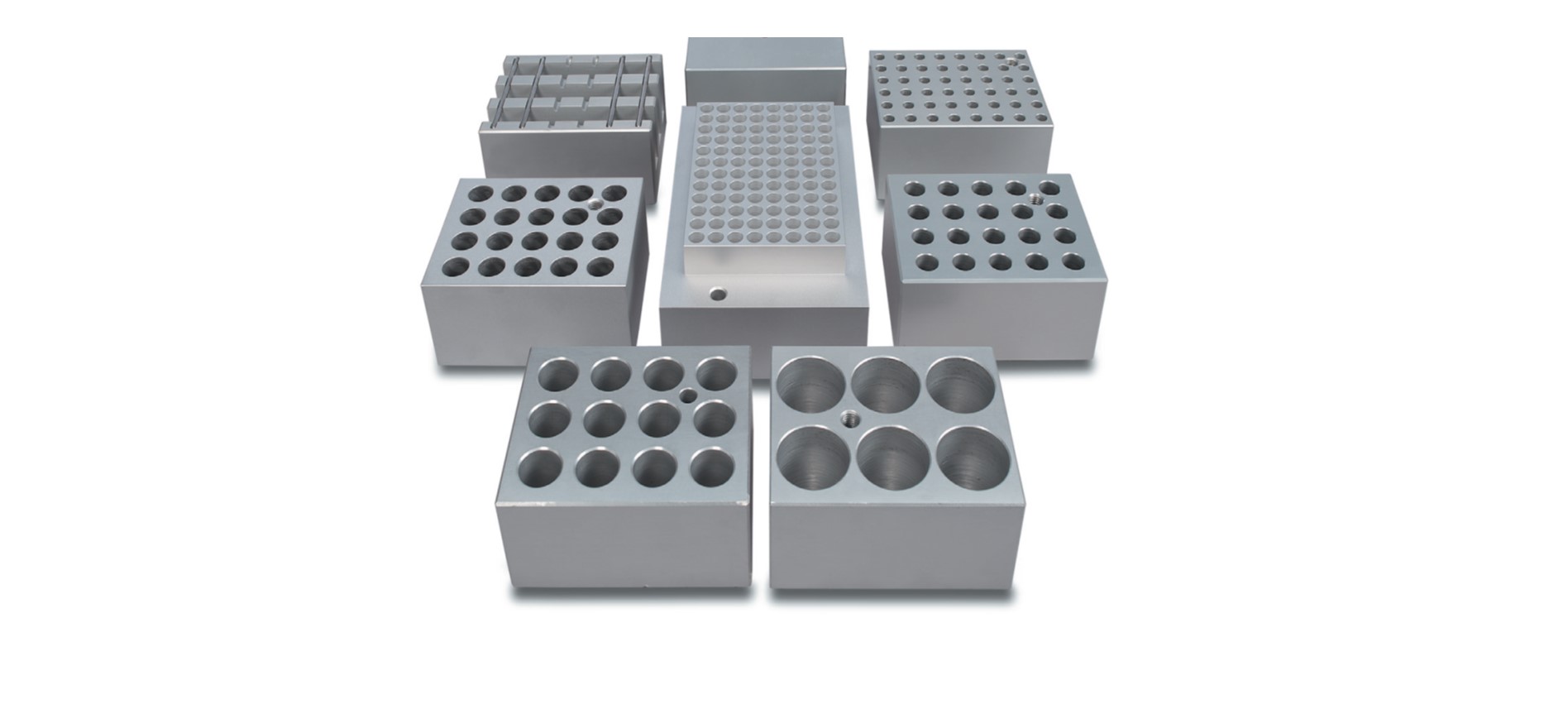

For use with Stuart block heaters.
-Manufactured from anodised aluminium.
-All with a separate hole to accommodate a thermometer if desired (Exc. SHT1/0).
-All blocks* have dimensions (w x d x h) 75 x 95 x 50mm and may be used in any combination
* Excluding SHT/96 AND SHT1/384 (150 x 95 x 61mm)
Item Code | Tube (diameter/type) | No. of Holes | Hole Size (dia. x depth) mm |
---|---|---|---|
SHT1/0 | Plain block | – | – |
SHT1/10 | 10mm | 20 | 10.5 x 47 |
SHT1/12 | 12mm | 20 | 12.6 x 47 |
SHT1/12/33 | 12mm | 20 | 12.6 x 33 |
SHT1/13 | 13mm | 20 | 13.5 x 47 |
SHT1/16 | 16mm | 12 | 16.5 x 47 |
SHT1/19 | 19mm | 8 | 19.5 x 47 |
SHT1/20 | 2ml tubes | 20 | 10.5 x 33 |
SHT1/21 | Block with removable channels for glass and disposable cuvettes | – | – |
SHT1/22 | 1.5ml tubes | 20 | 10.7 x 14 (9° taper) |
SHT1/25 | 25mm | 6 | 25.5 x 47 |
SHT1/28 | 28mm | 6 | 28.0 x 47 |
SHT1/30 | 0.5ml tubes | 30 | 7.8 (9° taper) |
SHT1/30/1 | 30mm | 4 | 30.1 x 47 |
SHT1/33 | 33mm | 4 | 33.2 x 47 |
SHT1/48 | 0.2ml tubes | 48 | 61 (9° taper) |
SHT1/80 | 0.2ml strip | 10 x 8 | – |
SHT1/96 | 96 well plate | – | 7.5 (9° taper) |
SHT1/384 | 384 well plate | – | 3.6 (9° taper) |
