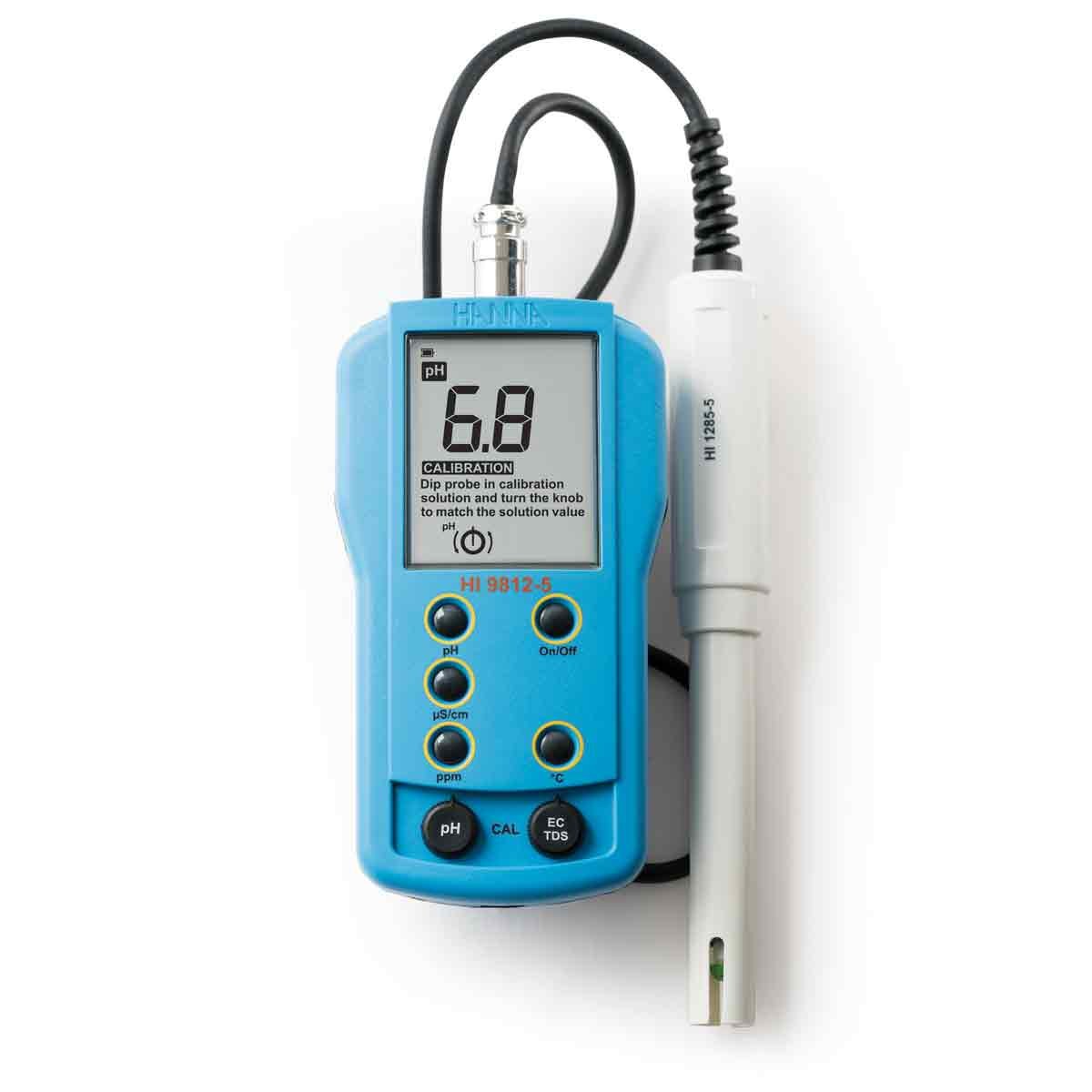

The HI9812-5 is an economical, wateproof, portable meter that measures pH, conductivity (EC), total dissolved solids (TDS) and temperature (°C) with a single probe. The meter operation is simplified with dedicated buttons for measurement modes to be be displayed on the LCD and knobs for single point calibration of pH and EC/TDS. The HI9812-5 is most suitable for agricultural, greenhouse and hydroponic applications.
- 3 in 1 probe with pH, EC/TDS and temperature sensors
- Amplified pH electrode for immunity to electrical noise including from ballasts and pumps
- Large LCD with instructions
Details
The HI9812-5 portable meter features a large LCD which displays either pH, EC, TDS or temperature readings along with tutorial instructions. The HI9812-5 is a simplistic pH/EC/TDS meter that is calibrated manually to a single point with the use of two trimmers. pH is calibrated to pH 7.01 while EC/TDS is calibrated to either 1413 µS/cm or 1382 ppm. The LCD screen has battery life indicator as well as on-screen tutorial messages.
The supplied HI1285-5 probe is a polypropylene body, amplified pH electrode with a built-in EC/TDS and temperature sensors. The amplifier for the pH electrode prevents interference from humidity and electrical noise from common sources including from motors, ballasts or pumps. The HI9812-5 is a versatile meter best suited for agricultural, greenhouse and hydroponic applications.
HI1285-5 polypropylene body amplified pH electrode with built-in EC/TDS and temperature sensors
The HI9812-5 is supplied with a polypropylene body pH/EC/TDS/temperature probe. The pH, EC, TDS, and temperature sensor are housed in a single body that connects to the meter with a DIN connector. This probe is specially engineered with a fiber junction and gel electrolyte to produce a fast response with reduced contamination
Amplified pH electrode
The pH electrode circuit has a built-in amplifier that will reduce the effects of electrical noise on the high impedance pH measurement. Examples of sources of electrical noise include motors, ballasts, and pumps which are common in greenhouses.
Amperometric EC/TDS sensor
The EC/TDS readings are performed by an amperometric sensor. An alternating voltage is applied to the sensor and the amount of current that passes between the two stainless steel pins is dependent upon the amount of salts (fertilizer) present. A greater amount of salt present results in an increase in conductance.
Polypropylene body
The polypropylene body houses all the sensors in a single body design and is durable. The probe is gel filled for maintenance free operation. It does not have to be refilled periodically.
-
3 sensors in a single probe
-
Pre-amplified pH electrode for resistance to electrical noise
- Gel filled maintenance free pH electrode
Features at-a-glance
- Water Resistant
- Automatic Temperature Compensation
- All readings are compensated for variations in temperature
- Variable EC to TDS conversion factor
- Factor automatically adjusts from 0.56 to 0.78 based on actual EC readings
- Factor based on 442 curve for natural water
- Low Battery Indicator
Specifications
| pH Range | 0 to 14 pH |
|---|---|
| pH Resolution | 0.1 pH |
| pH Accuracy (@25ºC/77ºF) | ±0.1 pH |
| pH Calibration | manual, one-point |
| EC Range | 0.00 to 1990 µS/cm |
| EC Resolution | 10 µS/cm |
| TDS Range | 0 to 1990 ppm (mg/L) |
| TDS Resolution | 10 ppm (mg/L) |
| EC/TDS Accuracy | ±2% F.S. |
| TDS Conversion Factor | 0.5 ppm (mg/L) = 1 µS/cm |
| Temperature Range | 0.0 to 60.0°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy (@ 25°C/77°F) | ±0.5°C |
| Temperature Compensation | automatic, 0 to 50°C |
| Temperature Coefficient | β = 2% /°C |
| Probe | HI1285-5 polypropylene body, pre-amplified multiparameter probe with internal temperature sensor, 8-pin DIN connector and 1m cable |
| Calibration | manual, one-point |
| Battery Type / Life | 9V / approximately 150 hours of continuous use |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% |
| Dimensions | 145 x 80 x 36 mm (5.7 x 3.1 x 1.4”) |
| Weight | 230 g (8.1 oz.) |
| Ordering Information | HI9812-5 is supplied with HI1285-5 multiparameter probe, HI70007 pH 7.01 buffer solution sachet, HI70442 1500 ppm calibration solution sachet, HI70031 1413 µS/cm calibration solution sachet, HI700661 electrode cleaning solution sachets (2), 9V battery, instructions and rugged carrying case. |
