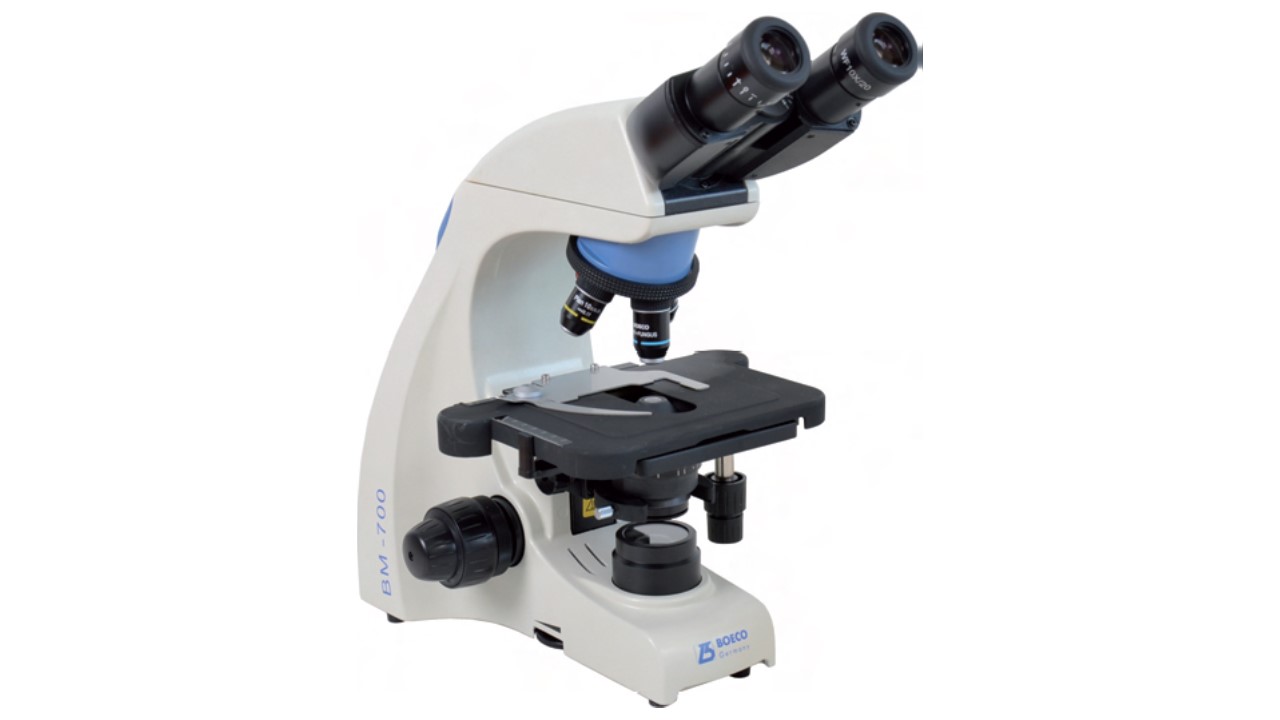

Our new advanced biological Microscope for educational, teaching, life
science and clinical applications. The Anti-Fungus treatment protects the
optical system, objectives and eyepieces in high-humidity environments.
The new designed F=200 mm Infinite Plan achromatic objectives provide a
fully corrected image for clear visual and digital results.
Specification BM-700:
Optical Head: Seidentopf Binocular Head, 30° inclined, 360° rotatable, with high quality infinitive optical system
Nosepiece: Backward quadruple revolving nosepiece
Eyepiece: Pair Eyepiece WF 10X /20 mm, diopter adjustable, with anti fungus treatment, Interpupillary Distance 47-75 mm
Objectives: BOECO Anti Fungus Infinite Plan Achromat Objectives 4x, 10x, 40x (S), 100x (S) (Oil)
Stage: Double layer mechanical specimen stage. 216 x 150 mm Travel area 78 x 54 mm, Right hand stage handle
Focusing: Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division.
Total focusing range 20 mm, Safety autofocus stop unit.
Condenser: Sliding-in centerable Bright field condenser, n.A. 1,25, Integrated Iris diaphragm and filter tray.
Illumination: S LED lamp, light intensity adjustable.
Body /power: Sturdy body with supportive rubber and inbuilt power supply 100 – 240V
Supplied with: Dust cover, green filter, immersion oil and instruction manual
Dimension: 230 x 376 x 406 mm
Weight: Netweight 8 kgs, Grossweight 9 kg
Packing: styrofoam shelve in a cardboard box
Code Description Head Plug
BOE 7000.570 BM-700/I/PL Binocular Euro
BOE 7000.571 BM-700/I/PL Binocular US
