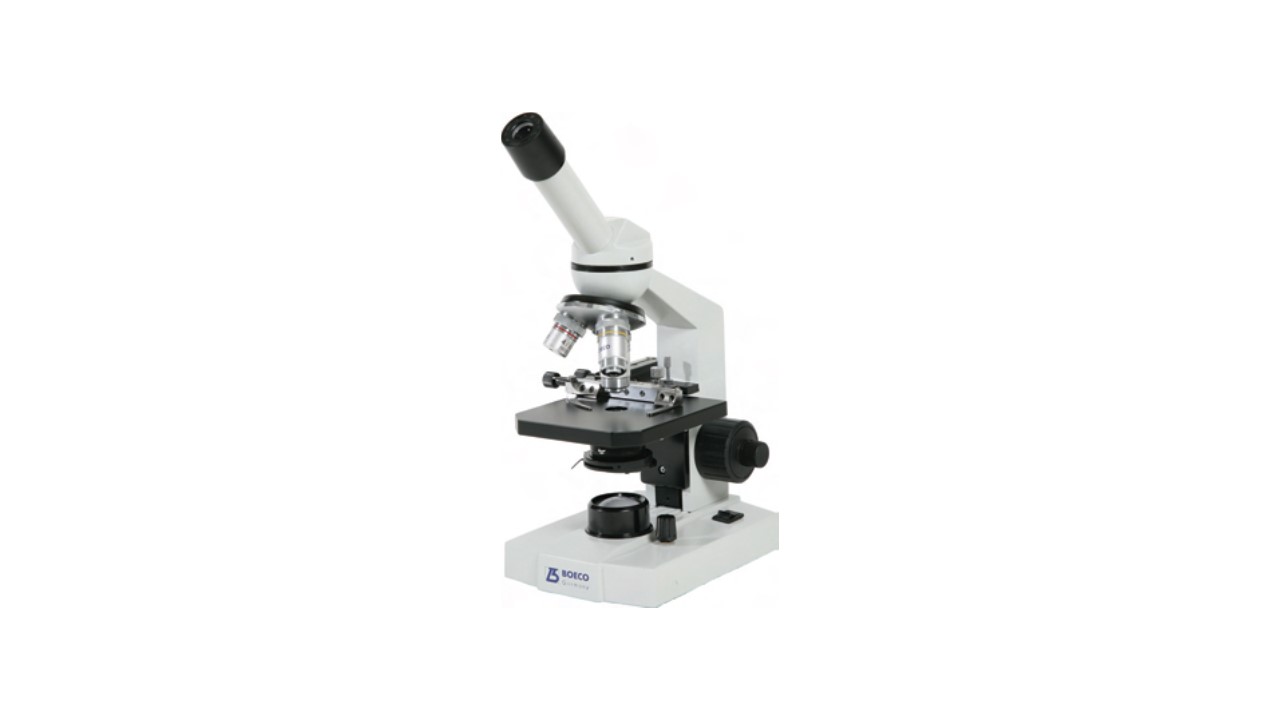

Specification Model 10:
Optical Head: Monocular Head, 45° inclined,
Nosepiece: Triple revolving nosepiece
Eyepiece: Pair Eyepiece WF 10X /18 mm Widefield
Objectives: Achromatic DIN Objective 4x/0.10, 10x/0.25, 40x/0.65, spring loaded
Stage: Plain stage with attachable mechanical stage. 110 x 120 mm, Travel aerea 60 x 30 mm
Focusing: Coaxial coarse and Fine Adjustment, Range 10 mm
Condenser: Abbe Brightfield condenser, n.A. 1,25, with iris diaphragm and green filter. Spiral Adjustment for Condenser
Illumination: 1W LED, Brightness adjustable
Supplied with: Reflecting Mirror, Dust cover, spare fuse
Power: Output DC 7,5V
Dimension: 180x130x340 mm
Packing: Styrofoam shelve in a cardboard box, 28x20x40cm, 3,3kg
Code Description
BOE 1000.030 Model 10, 100-220V, 50/60Hz, Euro Plug AC adapter
