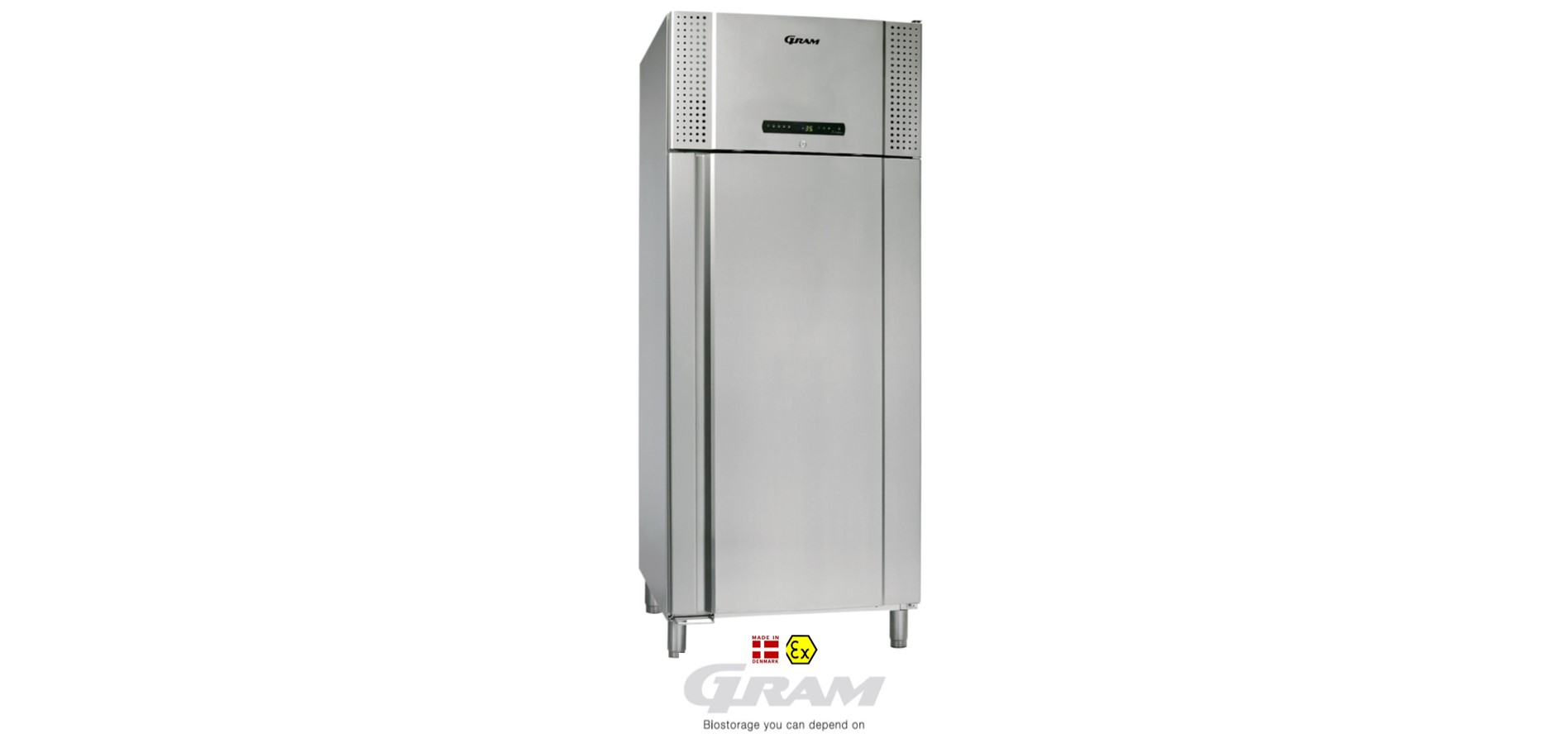

The BioBlood PF600/660W cabinet is a low temperature plasma freezer that operates in the temperature range -5/-35°C. It is a high–capacity ventilated refrigeration unit that makes sure the interior quickly returns to the specified temperature after the door has been opened.
The control unit is a special Gram Multi Purpose Controller with LED display. It features acoustic alarm that provides clear notification if either maximum or minimum permitted temperature is reached. An acoustic door alarm is also fitted. All alarm parameters are set separately. Another embedded feature in the control-unit is voltage–free contact for IT networks, monitoring systems and/or remote alarms. Add to this alarm recording and Hi/Low temperature read-out. E-sensor for temperature reference in the storage compartment is standard.
The BioBlood PF600/660W utilises environmentally responsible HFC-free foam propellants and is available with CFC-free or HFC-free refrigerants.
The functional design ensures easy, ergonomically correct access to the storage space.
| Technical specifications | BioBlood PF600/660W |
| Temperature range | -5/-35 ºC |
| Ambient temperature range | 10/30 ºC |
| Control Unit | Gram Control Unit voltage-free contact, E-sensor, acoustic and visual door and temperature alarms that can be programmed individually, alarm recording and calibration function |
| Material interiorMaterial exterior | Stainless steel and inner doors in PMMALacquered steel or stainless steel |
| Dimensions mm (W x D x H) | 600W: 837 x 756 x 2010* / 660W: 837 x 756 x 2160 |
| Gross volume | 600W: 600 litres/21.2 cubic feet / 660W: 660 litres/23.3 cubic feet |
| Net volume | 600W: 432 litres/15.3 cubic feet / 660W: 484 litres/17.0 cubic feet |
| Modules for shelves and drawers | 600W: Shelves 24 – Drawers 12 / 660W: Shelves 27 – Drawers 13 |
| Insulation | 60 mm polyurethane with CFC and HFC-free cyclopentane propellant |
| Refrigerant | R290 / R404A |
| Refrigeration capacity at -40 ºC | R290 244 watt; R404A 313 watt |
| Energy consumption | 600W: 5.6 kWh/24h / 660W: 5.8 kWh/24h |
| Noise level | 55,3 dB(A) |
| Base | Legs, wheels or for mounting on a plinth at no extra charge |
| Connection | 230 V, 50 Hz |
| Air system | BioLine ventilated air distribution system |
| Defrost system | Automatic smart defrost with re-evaporation of defrost water |
