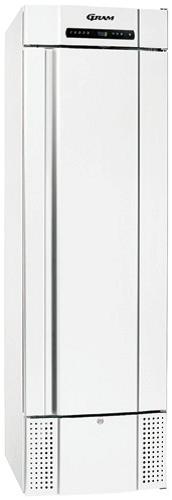

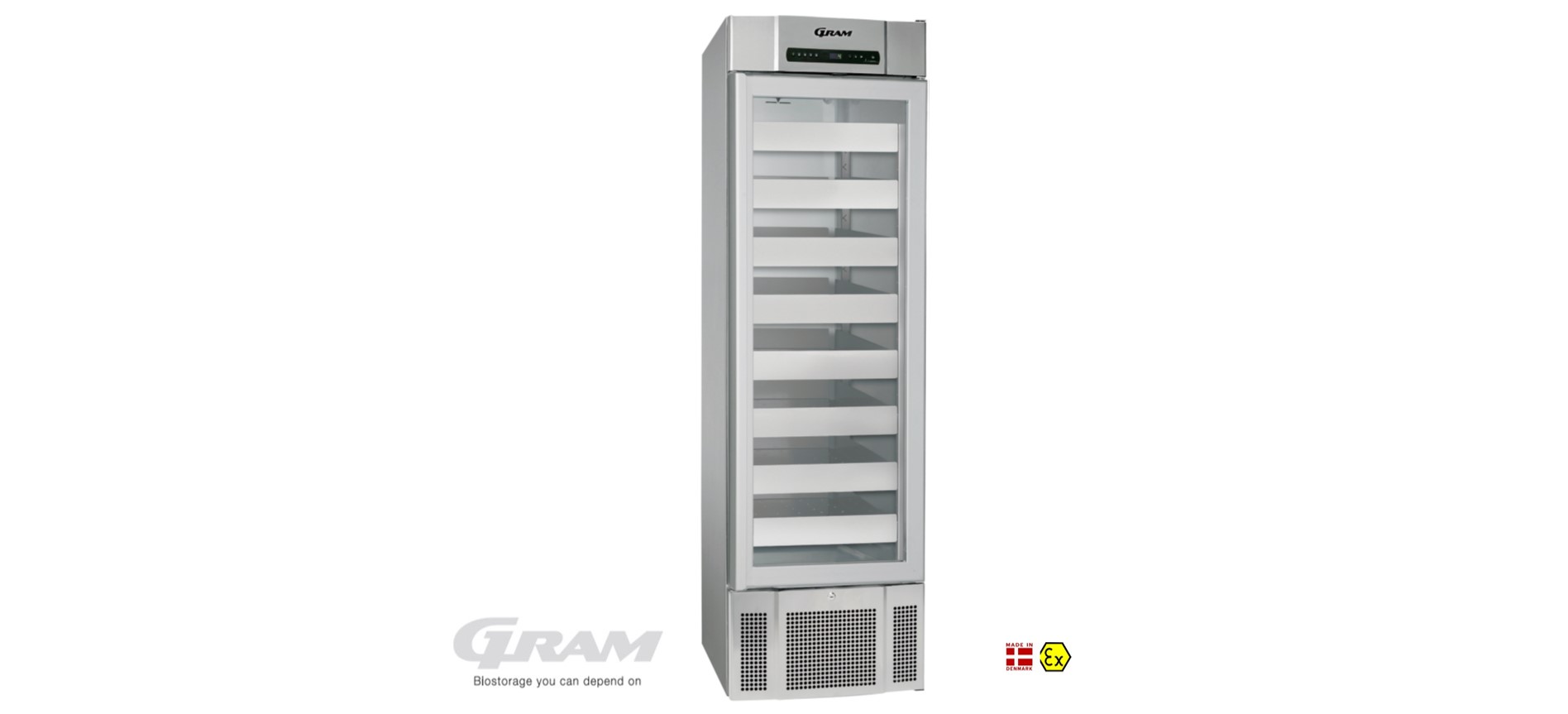

The BioMidi 425 cabinet is designed to meet your biomaterial refrigeration and freezer requirements, with very few limitations. The specifications include the Gram MPC control unit which has been specially developed for users of BioLine storage cabinets. Decades of experience blended with the best of modern technologies provide a uniquely capable control unit, making the BioMidi range the ideal choice where maintaining stable temperatures is decisive in a purchasing decision.
The BioMidi 425 utilizes environmentally responsible HFC-free foam propellants and is available with CFC-free or HFC-free refrigerants. The functional design ensures easy, ergonomically correct access to the storage space. Available in white, aluminium or stainless steel finish, well-insulated glass or solid doors.
Top panel with BioMidi control unit: The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic temperature and door alarms, and a voltage-free contact (NO/NC) for remote alarms. The display can be easily locked. An integrated Gram monitor, for providing documentation for the internal cabinet conditions is available as an option.
Access port: 24.5 mm port for ease of access, e.g. sensors for external temperature surveillance.
E-sensor: Extra sensor for providing a temperature reference within the storage compartment.
Shelves and drawers: A wide range of versatile interior fittings and layouts is available. The operating specifications and the interior layout can both be customised.
Air distribution: The unique Gram air distribution system makes sure the temperature inside the cabinet remains stable at all times, while using the minimum amount of energy.
Aluminium/stainless steel interior: The interior base, including shelf or drawer brackets and support rails are made of stainless steel.
Technical specifications: BioMidi RR425
Temperature range: 2/15 ºC
Ambient temperature range: solid door 10/43 ºC; glass door (RR)10/38 ºC
Control Unit: Gram BioLine MPC 4.6, voltage-free contact, E-sensor, acoustic door and temperature alarms that can be programmed individually, alarm recording, hi/low temperature and calibration function.
Material interior: Aluminium/stainless steel
Material exterior: Lacquered steel or aluminium/stainless steel
Dimensions mm (W x D x H): 600 x 731 x 2000
Gross volume: 425 litres/15.0 cubic feet
Net volume: 303 litres/10.7 cubic feet
Modules for shelves and drawers: Shelves 25 – Drawers 12
Insulation: 60 mm (cyclopentane)
Refrigerant: R290 / R134A
Base: Recessed lockable wheels*
Connection: 230 V, 50 Hz
Noise level: 49.7 dB(A)
Refrigeration capacity at -10 ºC: R290 389 Watt / R134a 279 Watt
Air system: Ventilated Gram distribution system
Defrost system: Smart defrost (fan only)
* The cabinet can also be delivered for mounting on a plinth at no extra charge.
