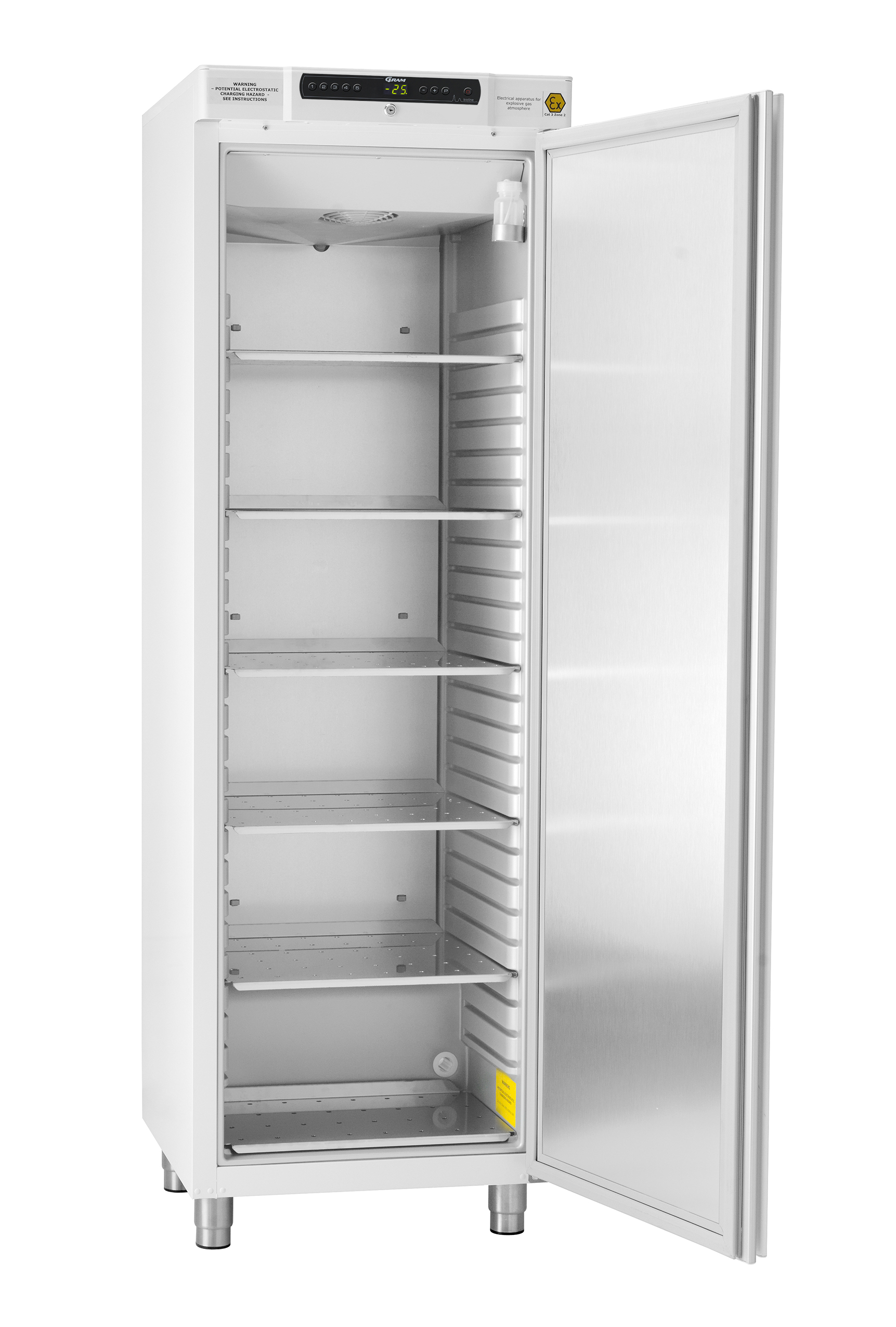

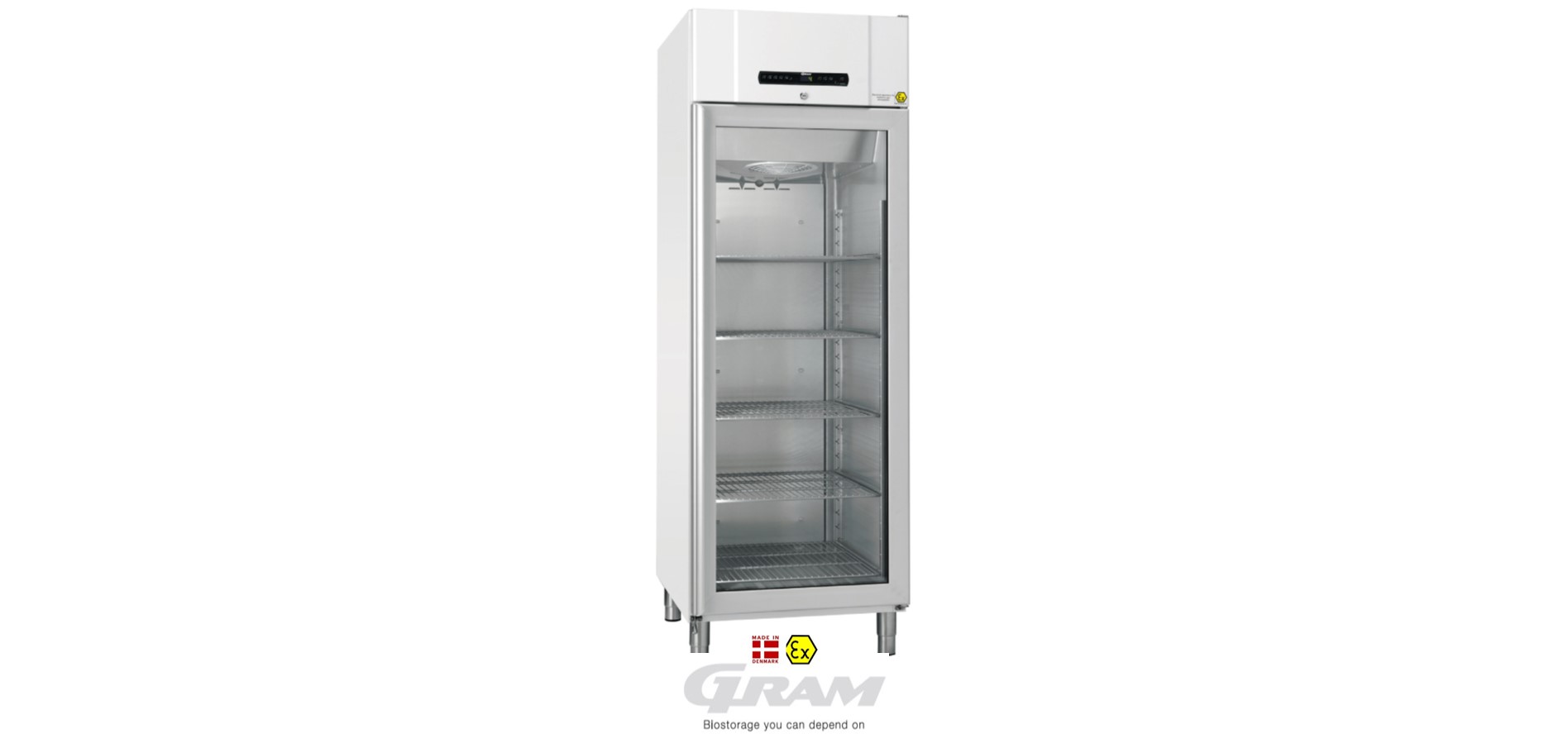

BioCompact ll 610 is a range of economical, environmentally responsible refrigerators and freezers designed specifically for biostorage uses.
The BioCompact ll 610 includes the major features from the top-of–the-range BioLine models, combined with a new refrigeration system. This provides per formance that is significantly better than any comparable biomaterial storage cabinet in this price bracket.
The BioCompact II 610 uses environmentally responsible HFC-free foam propellants and is available with CFC-free or HFC-free refrigerants.
The BioCompact ll 610 provides the largest storage volume within the BioCompact ll range. This, combined with its midlevel price point, makes it the ideal choice for the reliable storage of biomaterial under stable conditions – a requirement for which standard commercial or domestic refrigeration cabinets cannot be considered.
Top panel with BioLine control unit : The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic temperature and door alarms, and a voltage-free connector (NC/NO) for remote alarms. The display can be locked. An integrated Gram monitor, for providing documentation for the conditions within the cabinet, is available as an option.
Access port : 24.5 mm access port that makes it easy to insert objects, e.g. sensors for external temperature surveillance.
E-Sensor : Extra sensor for providing a temperature reference within the storage compartment.
Shelves and drawers : A wide range of versatile interior fittings and layouts is available. The operating specifications and the interior layout can both be customised. Ps. The standard BioLine configuration is without any shelves or drawers.
Air distribution : The unique Gram air distribution system makes sure the temperature inside the cabinet remains stable at all times, while using only a minimum of energy.
Wheels and legs ABS inner lining: Wheels, legs or plinth-mounting are available as options for cabinets in the BioLine product range, at no extra charge. The inside has a durable one-piece moulded grey ABS inner lining with rounded corners. The wall rails are made of stainless steel.
Technical Specifications: BioCompact ll RR610
Temperature range: +2/+15 ºC
Ambient temperature range: Solid door 10/43 ºC – Glass door 10/38 ºC
Control Unit: Gram BioLine MPC 4.6, voltage-free contact, E-sensor, acoustic door and temperature alarms that can be programmed individually, alarm recording, hi/low temperature and calibration function.
Material interior: ABS with wall rails in stainless steel
Material exterior: Lacquered steel or stainless steel
Dimensions mm (W x D x H): 695 x 868 x 2010
Gross volume: 583 litres/20,6 cubic feet
Net volume: 419 litres/16,7 cubic feet
Modules for shelves and drawers*: Shelves 24 (recommended 5) – Drawers 12
Insulation: 60 mm (cyclopentane)
Refrigerant: R600a or R134a
Base: Legs*
Connection: 230 V, 50 Hz
Noise level: 48 dB(A)
Refrigeration capacity at -10 ºC: R600a 354 Watt / R134a 314 Watt
Refrigeration capacity at -25 ºC: –
Air system: Ventilated Gram distribution system
Defrost system: Smart defrost (fan only)
* The cabinets can be delivered with wheels or prepared for mounting on a plinth at no extra charge.
