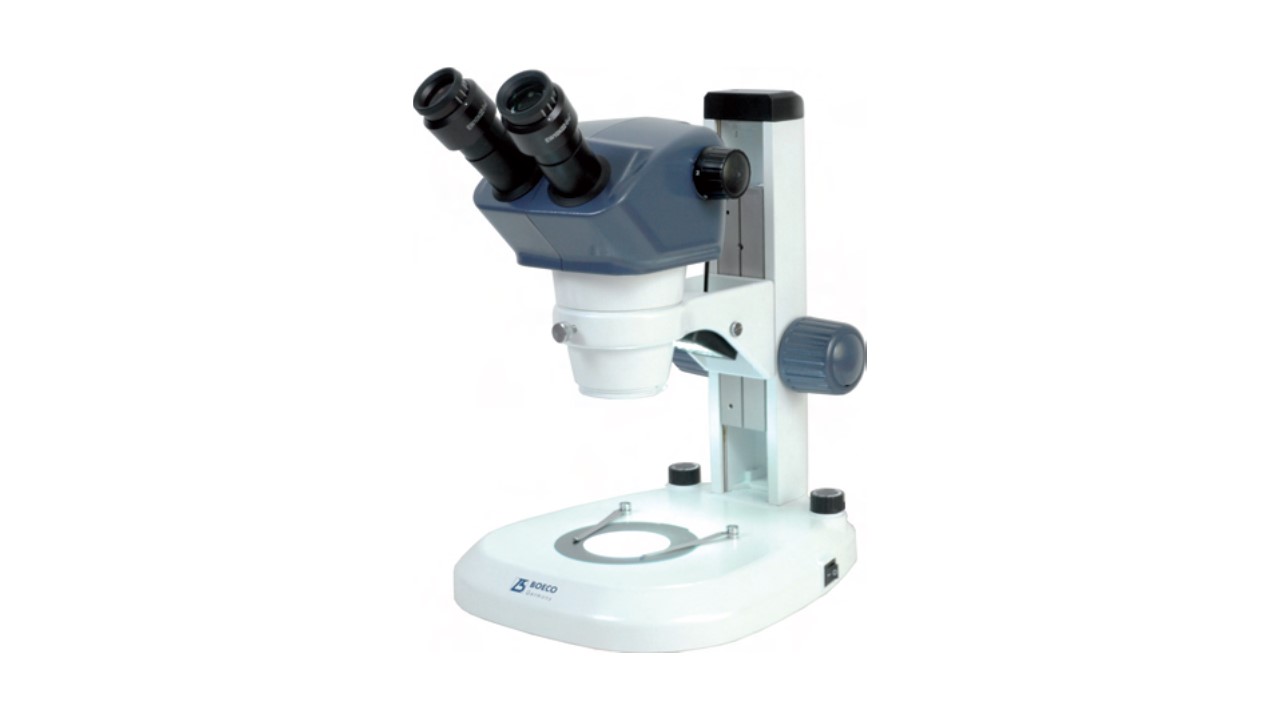

Specification BST-606:
Optical head: Binocular head inclined at 45°
Interpupillary Distance 55 – 75 mm
Eyepiece dioptric adjustment range ± 5D
Working distance: 115 mm
Field of View: 28,0 to 4.5 mm diam.
Eyepiece: EWF 10X/22 eyepieces with eyeshadow
Zoom Optics: 0,8X to 5X, Zoom ratio 1:6,3
Illumination: 2-way illumination switch allows upper and lower illumination
Transmitted (lower) LED light source 100V-240V.
Incident (upper) LED light source 100V-240V
Stage Plate: 100 mm ø frosted glass stage plate and black/white
reversible stage plate
Base: Stable 300×225 mm base, fitted with anti-skid
rubber feet
Main Body 360° rotatable
Dimensions: 300 (W) x 225 (L) x 300 (H) mm, Netweight 6,15 kg
Packing: 400 x 340 x 670 mm, Grossweight 10,1 kg
Code Description
BOE 6060.000 BST-606, EURO Plug
