Here at last – the product of our uncompromising pursuit of ultimate usability.
• FDA 21 CFR Part 11 Software Included in Standard Delivery
• Measurement stability in 12 seconds (4 seconds in the high-speed & consecutive measurement mode)
• Resolution of up to 3 decimal places
• Repeatability of ±0.003° Angle of Rotation and ±0.009°Z
• Up to 999 automatic consecutive measurements followed by average value display
• Sleep & timer feature to take measurement later at specified time
• Improved usability with the use of touch screen technology
• Connectivity to RX Digital Refractometers for automatic purity measurement
This SAC-i has been tested and approved by CONSECANA, the most eminent authority on sugar
and ethanol production in the State of São Paulo, Brazil.
Specifications

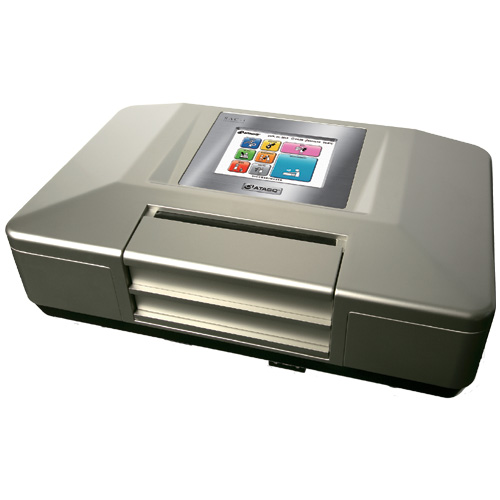

| Model | SAC-i |
|---|---|
| Cat.No. | 5951 |
| Measurement Readings | Angle of Rotation, International Sugar Scale (without temperature compensation), International Sugar Scale (with Automatic Temperature Compensation), Specific Rotation, Concentration, Purity, and Angle of Rotation (Temperature Compensation of Quartz Plate) |
| Measurement Range | Angle of Rotation -89.999 to +90.000° or -360.000 to +360.000° International Sugar Scale -259.000 to +259.000° |
| Resolution | Angle of Rotation 0.001° International Sugar Scale 0.001°Z |
| Measurement Accuracy | Angle of Rotation: ±0.002°（-5.0000～+5.0000°） ±0.005°（-45.014～-5.0001°,+5.0001～+45.0140°） International Sugar Scale:±0.015°Z (-130.0000 to +130.0000°Z) Other ranges Angle of Rotation:±0.01° International Sugar Scale:±0.03°Z |
| Repeatability | ±0.003° Angle of Rotation and ±0.009°Z |
| Sensitivity | up to OD2* *OD = optical density: a measureof light absorbance. OD2 = 1/100 attenuation and 1% transmission. |
| Temperature correction range for ISS | 10 to 40℃ |
| Display Panel | 7.5 inch color LCD (touch screen) |
| Light source | LED:589nm interference filter |
| Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
| Power Supply | AC100 to 240V, 50/60Hz |
| Included Accessories | Software, PolariSoft |
| Observation tube included | Observation tubes (100mm(5ml)，200mm(10ml)) |
| Dimensions & Weight | 60×36.5×21cm, 20.0kg |
| Output terminals | Digital Printer DP-63 or DP-AD (sold separately), USB flash drive and PC – USB |
