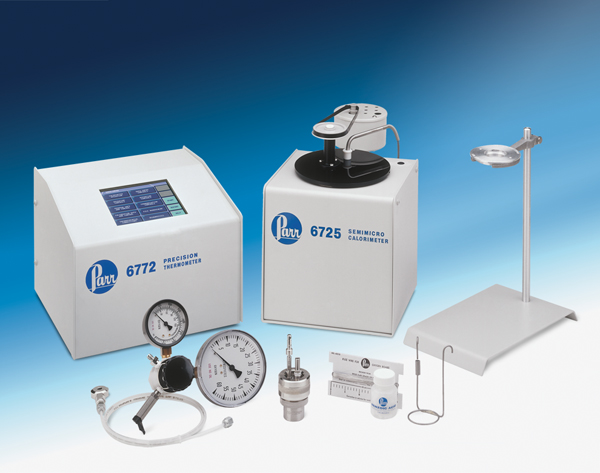

The 6725 Semimicro Calorimeter is a compact and easily operated, static jacket, combustion calorimeter designed specifically for measuring the heat of combustion of small samples when only limited amounts of test material are available.
The need for semimicro operation frequently arises in marine biology and other ecological studies where sample sizes are limited, also for testing heat powders and pyrotechnic mixtures.
A 22 mL Oxygen Bomb
The 22 mL, 1109A Oxygen Bomb used in the semimicro calorimeter will handle samples ranging from 25 to 200 milligrams, liberating up to 1200 calories when burned in oxygen.
An Effective Thermal Jacket
Effective static thermal insulation is provided by using a silvered glass Dewar as the calorimeter vessel. This vacuum flask holds the 1109A bomb in 450 grams of water. It is supported within a stainless steel air can from which it is easily removed for filling or cleaning.
Full Series 6000 Instrumentation
The 6725 semimicro calorimeter utilizes the 6772 precision calorimeter thermometer/controller which provides all of the temperature measurement, automation and data handling capabilities of the larger series 6000 calorimeters described in the bulletin 6000MB (see link above).
1109A Semimicro Oxygen Bomb
This is a 22 mL bomb designed for use in the 6725 semimicro calorimeter and earlier series 1425 calorimeters. It is intended for samples ranging from 25 to 200 milligrams, liberating up to 1200 calories. It is also used for heat powders that are self oxidizing and release less than 2400 calories per charge.
Specifications:
• 2-3 Tests Per Hour
• Operator Time Per Test is 6-10 Minutes
• 0.4% Precision Class
• Compensated, Dewar Flask
• Manual Oxygen Fill
• Manual Bucket Fill
• 1109A, 22mL Manual Valve, Semi-Micro Bomb
• USB port for Printer and Balance Communication
• SD Memory for easy data and log transfer
• TCP/IP via Ethernet Network Connection
• 6725: Dimensions (in): 9w x 13d x 13h
• 6725: Dimensions (cm): 22w x 33d x 33h
