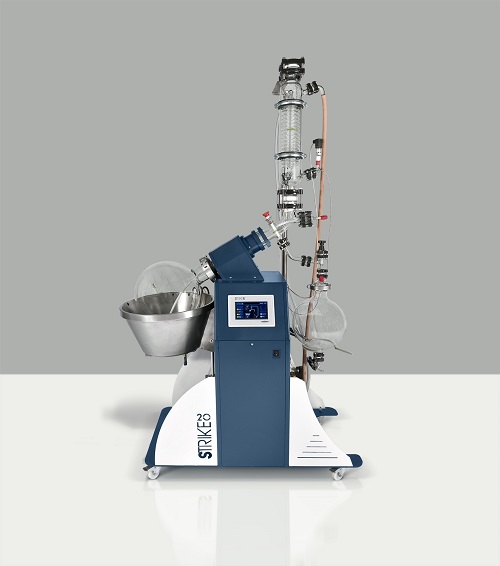

20LT ROTARY EVAPORATOR STRIKE 20
STRIKE 20 is a 20lt rotary evaporator designed for industrial systems and R&D purposes. It meets all the process needs using 3.3 borosilicate glass and PTFE allowing aggressive substances treatment.
It works efficiently both under vacuum and any ambient conditions. The rotation of the 6, 10 or 20 lt evaporation flasks inside the heating bath results in a forced convection and homogenous distribution of the product, preventing sedimentation while ensuring high evaporation exchange surface. The sealing system guarantees perfect vacuum tightness and no maintenance.
Glassware can be tailored to meet Client's specific needs.
TOTAL SAFETY SYSTEM
Strike 20 is supplied with a an optional transparent protection shield for the evaporation flask.
The special shaped and robust shield ensures utmost protection from evaporation flask breakage and spray during process at high temperature.
-The heating bath and the protective shield are lifted by an electronically monitored system.
-An automatic system lowers the heating bath in case of power failure, overheating and any other bad occurrences.
-Strike 20 is supplied with a rupture disk, a safety device, positioned on the glassware to prevent overpressure.
VACUUM SEALING SYSTEM
-Made of lubrificating material allowing perfect vacuum tightness.
-No maintenance required
HEATING BATH
Lifted by means of a powered system, the heating bath, in case of power failure or alarms, goes automatically down to prevent fluid overheating, and the process will immediately stop.
Its electric heater enhanced to 3Kw (<3W/Cm2) ensures continuous evaporation of a wide range of products even in critical working conditions.
DISPLAY
The process operating parameters can be set and monitored on a 7 touch-screen display.
MEASUREMENT, DISPLAY AND DATA RECORDING OF THE FOLLOWING PARAMETERS:
– Set and actual temperature value of the bath
– Set and actual vapour temperature value
– Set and actual rotation speed value of the evaporation flask
– Set and actual vacuum value (vacuum controller included as standard)
