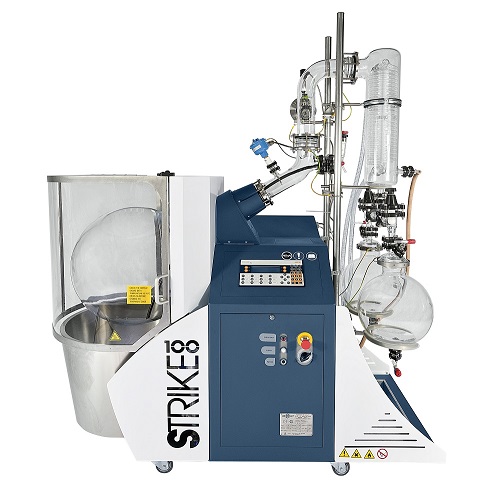

50, 100LT ROTARY EVAPORATOR STRIKE 100
The unit works under vacuum or atmosphere conditions. The rotation of the 50 or 100 lt evaporation flask in the thermostatic bath results in a forced convection and homogenous distribution of the product, thus preventing sedimentation. Moreover, it ensures high evaporating exchange surface. The sealing system guarantees the perfect vacuum tightness and maintenance-free operation. Possibility to customize glassware as for Clients needs.
APPLICATIONS
-Distillation (continuous and discontinuous)
-Solvent recycling
-Reflux process reactions
-Component drying
-Fine chemical synthesis
-Crystallization
FIELDS
-Pharmaceutical
-Chemical
-Cosmetic
-Herb extraction
-Petrochemical
TOTAL SAFETY SYSTEM
The industrial safety rotary evaporators are able to safeguard the user from any risk during work. The thermostatic bath is covered by a transparent shield providing the operator with utmost protection from glass breaking and spray at high temperature. The thermostatic bath and the protective shield are lifted by means of an hydraulic system electronically controlled. An automatic system lowers the thermostatic bath when a power failure, door opening and overheating occur. It is also inserted on glassware a brake disc in order to avoid sudden overpressure.
VACUUM SEALING SYSTEM
A great feature of these rotary evaporators is its sealing system made of self-lubricating material which allows a perfect vacuum-tight. This sealing system does not require any maintenance.
HEATING BATH
The heating bath is lifted by means of a hydraulic system which, in case of power failure or doors opening, goes automatically down to avoid fluid overheating and the process will immediately stop.
Electric heater enhanced to 8Kw to ensure a continuous evaporation of the product even in the worst conditions.
DISPLAY
The process operating conditions can be set and displayed: any value error or anomalous temperature will block the electric power. For STRIKE100 ATEX version is a "LCD display anti-reflectio coating glass panel" . For version STRIKE100 is a graphical color display 7" touch-screen
ELECTRONIC CONTROLLER
STRIKE100ATEX is fully controlled by a PLC (Programmable Logic Controller) which allows for controlling the parameters as well as setting them directly by means of the keys.
Client could acquire on an external PC through serial communication all the process parameters through special software for data acquisition and management. Client could remotely control the instrument from an external PC via serial communication. In addition, the instrument has control algorithms that allow you to finish the process of evaporation / distillation or separation of solvents automatically by reading the temperature of the vapors.
PARAMETERS MEASUREMENT, VISUAL DISPLAY AND RECORDING OF THE FOLLOWING:
– Bath pre-set and real temperature
– Vapor pre-set and real temperature
– Pre-set and real rotation speed
– Pre-set and real vacuum reading and setting
Technical specification:
Working Range °C: 0…150
Accuracy °C: +/- 2
Resolution °C: 0.1
Set point: YES (1°C step)
Type of control: PID
Maximum oscillation during checkout °C: +/- 3
Power resistor: 8 KW
Heater power density: 3W/cm2
Over-temperature protection: YES
Temperature Sensor: Three-wire PT100
Level sensor: YES
Filling Level: Yes -Manual
Dimensions (WxDxH mm) 1830x890x2110
Plastic coated glassware: optional
