Parr offers a number of different reactors in the 4580 Series in a variety of sizes and with different mountings for operating pressures to 3000 psi (200 bar) and temperatures to 500 °C.
4581 – 4582 Reactors

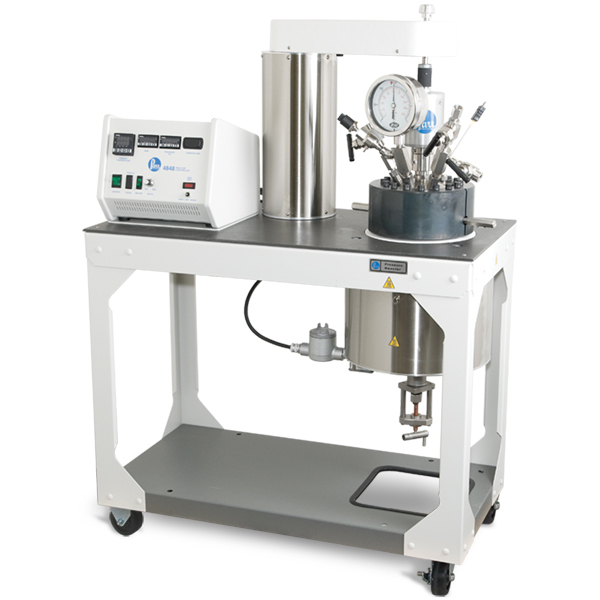

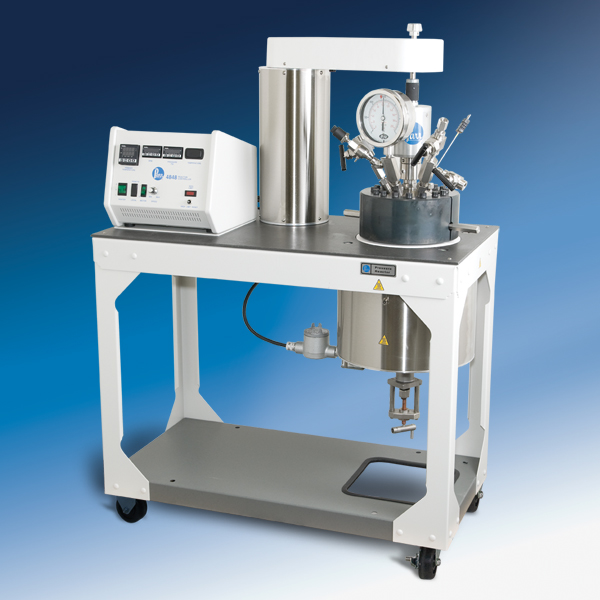

These 1 gallon (3.75 L) and 1.5 gallon (5.5 L) reactors are designed for 3000 psi (200 bar) maximum pressure with a 500 °C maximum working temperature and mounted on movable carts.
4583 – 4584 Reactors
These are 1 gallon (3.75 L) and 1.5 gallon (5.5 L) fixed head reactors mounted on floor stands with pneumatic lift.
All of these reactors have been designed with suitable valves, fittings and modifications to the vessel itself to operate at the higher temperature and pressure ratings.
Flat, flexible graphite (FG) gaskets are used for temperatures in the higher range to 500 °C. These can be replaced with PTFE gaskets for procedures in which the temperature will not exceed 350 °C. All cart and floor stand models use ceramic fiber heaters to achieve the higher operating temperatures.
| Series 4580 Pressure Reactor System Specifications | ||
| Shaded bar indicates specifications that change within series. | ||
| Model Number – Moveable Vessel | 4581 | 4582 |
| Model Number – Fixed Head | 4583 | 4584 |
| Approximate Volume, mL | 3750 | 5500 |
| Maximum Pressure (MAWP) | 3000 psi (207 bar, 200 bar for CE orders) | |
| Maximum Temperature | ||
| with FG Flat Gasket | 500 °C | |
| Reactor Details | ||
| Stand Type | Cart/Floor Stand | |
| Closure | Split-Ring (16 Compression Bolts for Flat Gasket) | |
| Valve Connections | 1/4″ Female NPT | |
| Magnetic Drive, Model No. | A1180HC | |
| Maximum Torque | 60 Inch-Pounds | |
| Impeller(s), 6-Blade (4-blade) | 2 (3.5″ dia.) | |
| Stirrer Motor | 1/2 hp variable speed | |
| Pressure Gage, Size | 4.5 inches | |
| Range | 0-3000 psi (207 bar) | |
| Temperature Measurement | Thermowell | |
| Cooling Coil (included) | Serpentine | |
| Bottom Drain Valve (BDV) | 1″ NPS (Floor stand supports only) | |
| Heater Style | Calrod: Fixed Head, Ceramic: Removable | |
| Heater Power, Watts | 2800 | |
| Electrical Supply | ||
| Volts, AC | 230 | |
| Maximum Load, amps, 115 / 230 | 15 | |
| Cylinder Dimensions | ||
| I.D. x Depth, inches | 5.5 x 9.7 | 5.5 x 15.1 |
| Moveable Vessel Assembly Weight, pounds | 124 | 143 |
| Fixed Vessel Assembly Weight, pounds | 136 | 155 |
| Cylinder Weight, pounds | 53 | 72 |
| Reactor/Stand Dimensions | ||
| Moveable Width x Depth, inches w/o Controller | Cart: 35 x 18 x 50 | |
| Fixed Width x Depth, inches w/o Controller | Floor Stand: 20 x 31 x 75 | |
| Moveable Weight w/Controller, pounds | 325 | 355 |
| Fixed Weight w/Controller, pounds | 345 | 375 |
| Spare Parts Kit | 4589M | |
