Refractive index or Abbe number (νd or νe) can be measured at different wavelengths ranging from 450 to 1,100nm.

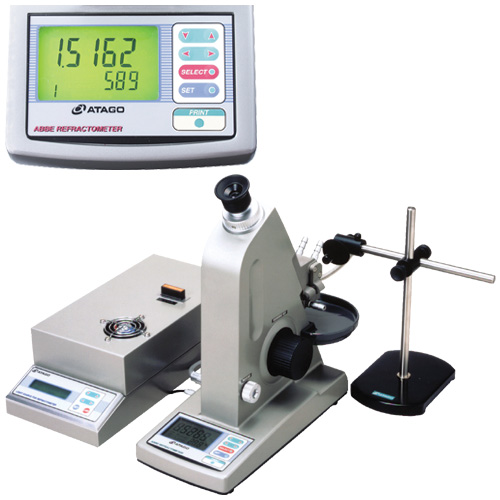

The DR-M2 digitally displays measurement result of refractive index or Abbe number on the LCD.
Measurement can be achieved by matching the boundary line with the intersection point of the cross hairs.
This refractometer is connectable with Digital printer DP-63(B) (Optional).
| Model | DR-M2 |
|---|---|
| Cat.No. | 1410 |
| Scale | Refractive index Abbe number |
| Measurement Range | Refractive index 1.3278 to 1.7379 (Wavelength 450nm) Refractive index 1.3000 to 1.7100 (Wavelength 589nm) Refractive index 1.2912 to 1.7011 (Wavelength 680nm) Refractive index 1.2743 to 1.6840 (Wavelength 1,100nm) |
| Minimum Indication | Refractive index : 0.0001 Abbe number : 0.1 |
| Measurement Accuracy | Refractive index : ±0.0002 (With the attached test piece at 500 to 650nm) |
| Ambient Temperature | 5 to 40ﾟC |
| Measurement Temperature Range | 5 to 50ﾟC (With circulating constant water bath) |
| Display Panel | LCD |
| Light source | Halogen lamp |
| Output | For printer, DP-63 (B) (Optional) |
| Wavelength Range | From 450 to 1100nm (with interference filters) (For measurement at wavelengths ranging from 681 to 1100nm, the Near Infrared Ray Viewer (Optional is required) |
| Power Supply | AC100 to 240V, 50/60Hz |
| Dimensions & Weight | 13×29×31cm, 6.0kg (Refractometer) 15×33×11cm, 3.2kg (Light source unit) |
| Power consumption | 160VA |
Special Order Option : The sample stage height can be customized.
