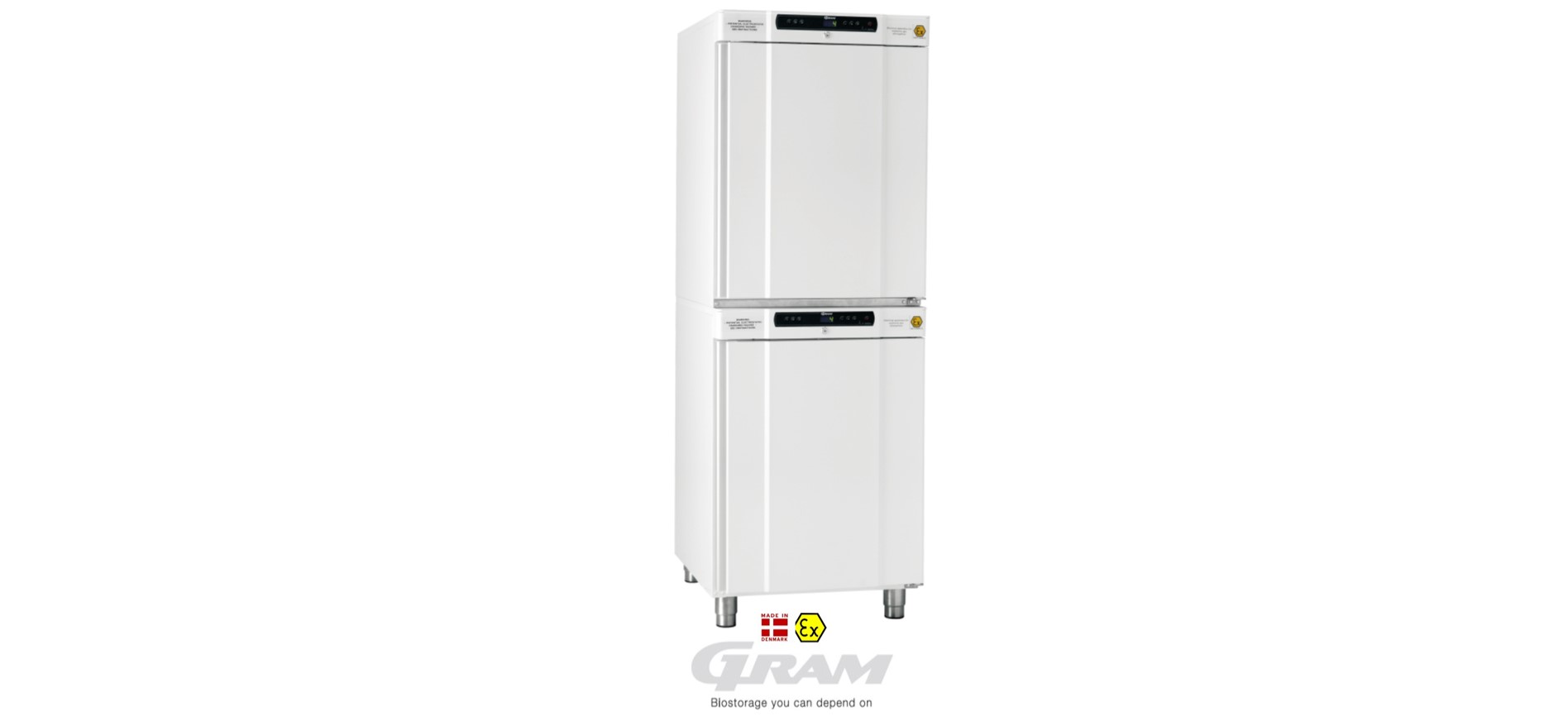

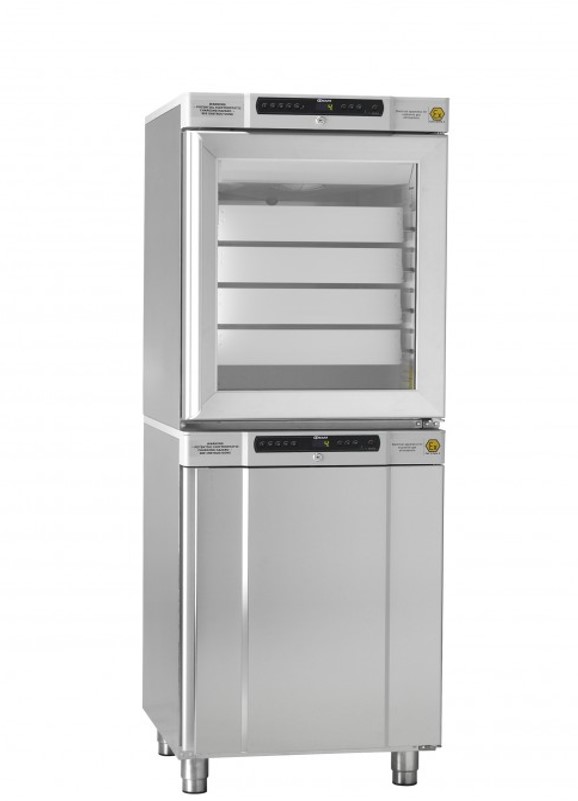

The BioCompact ll 210/210 is a combination refrigerator and/or freezer cabinet with a small footprint, designed for a wide range of biostorage purposes where the prime focus is on dependability and exceptional performance.
The BioCompact ll 210/210 provides you with significantly better performance than any other cabinets in this segment, on account of a refrigeration system that does away with cold walls that can damage the contents and a unique air distribution system for storing ordinary biomaterial under consistent, stable conditions.
The design of the BioCompact ll 210/210 ensures you lots of ways to deal with individual storage needs, thanks to many different optional combinations of refrigeration ranges, the versatile interior layout and a comprehensive selection of fixtures and fittings. The small footprint of this design also makes it the perfect biostorage unit for use in confined spaces.
The BioCompact ll 210/210 uses environmentally responsible HFC-free foam propellants and is available with CFC-free or HFC-free refrigerants. Based on decades of specialist know-how, these biostorage units are exceptionally energy-efficient, and are the best per formers on the market in relation to Scandinavian standards.
Available in either white or stainless steel finish, with a one-piece moulded ABS inner lining. Shelves and drawers are mounted in U-shaped rails moulded into the plastic walls.
Top panel with BioLine control unit: The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic temperature and door alarms, and a voltage-free connector (NC/NO) for remote alarms. The display can be locked. An integrated Gram monitor, for providing documentation for the conditions within the cabinet, is available as an option.
Refrigeration systems: Every Combi cabinet is equipped with two independent refrigeration systems and control units, for maximum safety and performance.
Access port: 24.5 mm port for ease of access, e.g. sensors for external temperature surveillance.
E-sensor: Extra sensor for providing a temperature reference within the storage compartment.
Finned tube evaporator: Using a refrigeration system based on a finned tube evaporator is unique for biostorage products in this segment, and provides unparalleled benefits. The design results in a refrigerated storage space with no cold walls that can damage any delicate items stored in the cabinet. This also makes it possible to ensure even better temperature stability inside the cabinet.
Air distribution: The unique Gram air distribution system makes sure the temperature inside the cabinet remains stable at all times. With the finned tube evaporator placed in the top, there are no cold walls inside the cabinet.
Shelves and drawers: A wide range of versatile interior fittings and layouts is available. The operating specifications and the interior layout can both be customised.
Castors and legs – ABS inner lining: Wheels, legs or plinth-mounting are available at no extra charge for cabinets in the BioLine product range.
Tech. spec – BioCompact II: RF210/RF210
Temperature range: -5/-25°C and -5/-25°C
Ambient temperature range: 10/35 ºC
Control unit: Gram BioLine MPC 4.6, voltage-free contact, E-Sensor, acoustic door and temperature alarms that can be programmed individually. Temperature alarm recording, and calibration function.
Material interior: ABS lining
Material exterior: Lacquered steel or stainless steel finish
Dimensions mm (W x D x H): 595 x 640 x 1700
Gross volume: 125 litres/4.4 cubic feet and 125 litres/4.4 cubic feet
Net volume: 104 litres/3.7 cubic feet and 104 litres/3.7 cubic feet
Modules for shelves and drawers: Shelves 2 x 7, drawers 2 x 4, baskets 2 x 1
Insulation: 50 mm (cyclopentane)
Refrigerant: R600 / R134A
Base: Legs*
Connection: 230 V, 50 Hz
Energy consumption: 2.2 kWh/24h
Noise level: 42,1 dB(A)
Refrigeration capacity at -10 ºC: –
Refrigeration capacity at -25 ºC: R600a 156 Watt / R134a 149 Watt
Air system: Gram ventilated distribution system
Defrost system: Smart defrost with automatic evaporation of defrost water
* The cabinets can be delivered with castors or legs or prepared for mounting on a plinth at no extra charge.
