- Integral USB interface for setup and download
- High temperature range -20 to 105°C
- Food grade 316 stainless steel housing
- Operating temperature -20 to 105°C

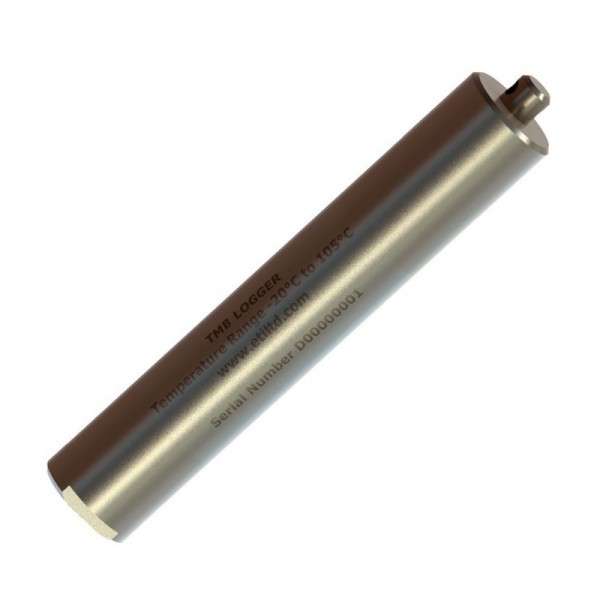

Stainless steel data-loggers that are ideal for food, pharmaceutical and other applications where a high temperature data-logger is required. The Stainless steel ThermaData® logger is housed in a waterproof, food grade 316 stainless steel case to protect the logger from corrosion, impact and moisture (IP66/67).
The ThermaData® logger software allows the user to programme the logging sample/interval rate (1 to 255 minutes), the real-time clock, °C/°F, delayed start (maximum 23 hours, 59 minutes) and a 12-character user ID. The software also incorporates a password protected calibration adjustment feature that allows the user to check the calibration of loggers and make minor adjustments 0.5 °C (±3 °C).
By selecting continuous logging in the software options, it is possible to start the ThermaData® logger only once and never have to reset its parameters again, even if downloaded regularly. Unlike most low cost loggers, the ThermaData® stainless steel data logger will continue recording during and after downloading the data.
specification | Stainless Steel ThermaData® data logger |
RangeOperating temperature | -20 to 105°C-20 to 105°C |
Resolution | 0.5°C |
Accuracy | ±1°C (±0.5°C with calibration utility) |
Memory | 2048 readings |
Sample rate | 1 to 255 minutes |
Battery | 3.6 volt half AA lithium |
Battery life | 3 years minimum |
Dimensions | 22.5 x 129mm (exc probe) |
Weight | 170 grams nominal – model dependent |
