אינקובטורים מסדרת Premium-Line, טווח טמפ' אופציונאלי °30- עד °80+ תוצרת גרמניה.

תיאור

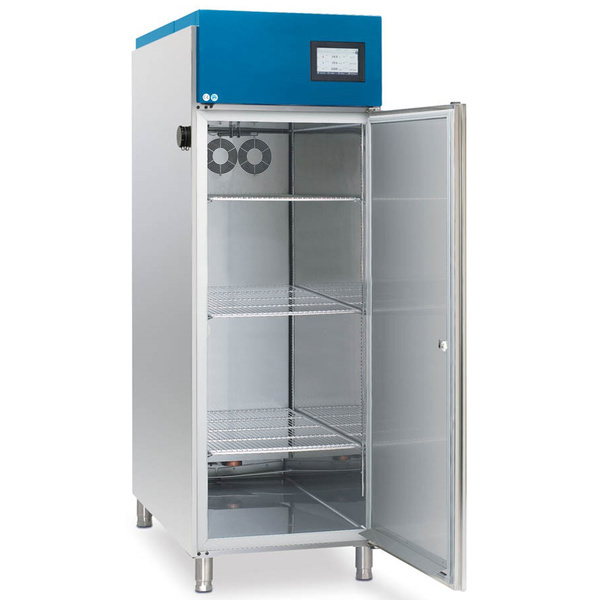

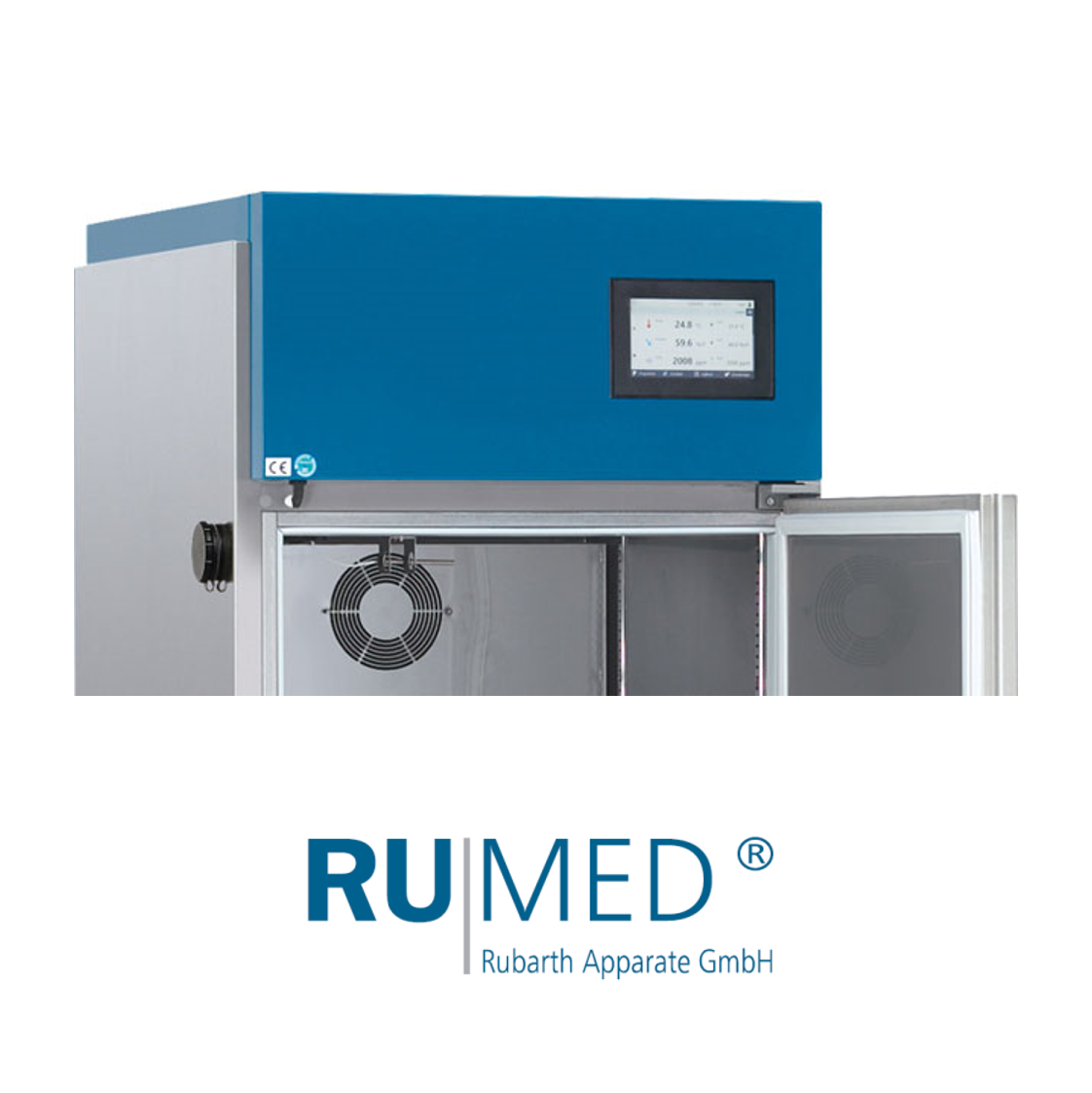

Extremely high quality, durable and flexible – these are the characteristics of the RUMED® Premium-Line of stainless steel. Thanks to the variety of options and accessories, the precision test cabinets can be configured almost boundlessly for any kind of climatic test.

No matter if stability test in pharmacy, cultivation of test plants, or artificial ageing of products – the influence of temperature, humidity, light and CO₂ on the specimen can be tested reliably by means of RUMED®s Stainless Steel Premium-Line. We offer a selection of 6 test room volumes from 210 l to 1700 l, which is unique on the market. Particularly the large-volume appliances with only small space requirements in the laboratory have an extremely good cost-benefit ratio relating to the volume. The next pages will give more details concerning the standard execution and the possible options.

General view of the most important advantages:

Test room volumes from 210 l to 1700 l
Test room and external housing of corrosion-resistant stainless steel
Suitable for installation in a clean room, easy cleaning
Temperature ranges from -30 °C to +80 °C
High operating convenience, intuitive handling by means of the Control2015 touch
Eco-friendly refrigerants
Energy-saving lighting and refrigeration technology
Noise minimization by speed-controlled compressor fan
Extremely durable
Possibility of calibration and validation

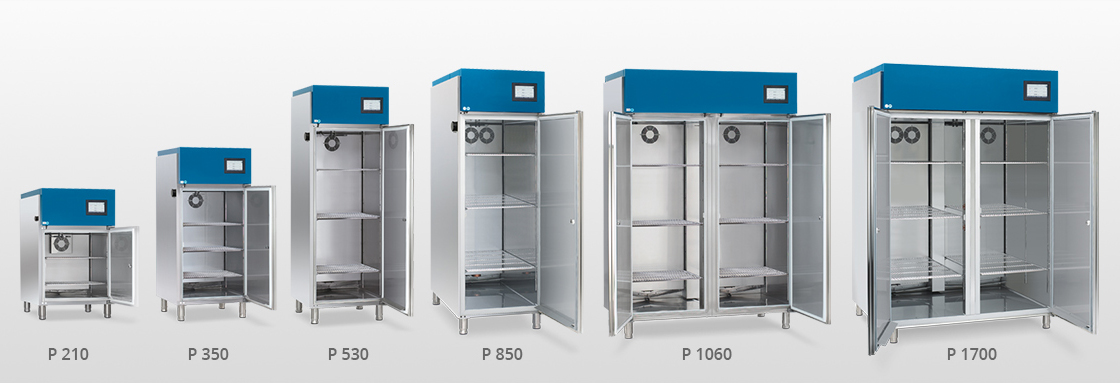

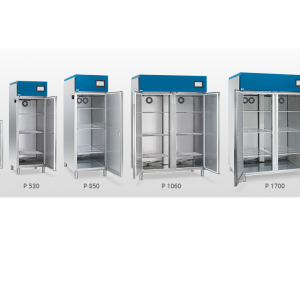

Type	P 210	P 350	P 530	P 850	P1060	P1700

Volume (l)	210	350	530	850	1060	1700
Standard minimum temperature	0 °C	0 °C	0 °C	0 °C	0 °C	0 °C
Standard maximum temperature	+50 °C	+50 °C	+50 °C	+50 °C	+50 °C	+50 °C
Temperature deviation in time ( °C)	±0,5 °C	±0,5 °C	±0,5 °C	±0,5 °C	±0,5 °C	±0,5 °C
Height (mm)	600	990	1500	1500	1500	1500
Width (mm)	610	610	610	610	2 x 610	2 x 610
Depth (mm)	585	585	585	935	585	935

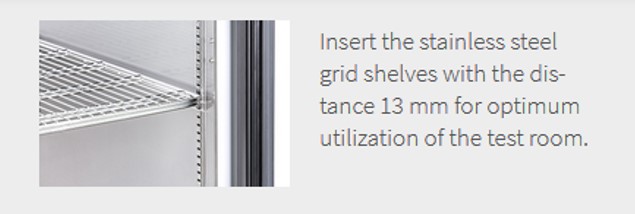

Number of shelves (standard delivery scope)	2	3	3	3	6	6
Maximum load per shelf (kg)	25	25	25	25	25	25
Unit
Height (mm)	1180	1600	2105	2105	2105	2105
Width (mm)	730	730	730	730	1460	1460
Depth (mm)	820	820	820	1170	820	1170
Electric connection (V/Hz)	230/50	230/50	230/50	230/50	230/50	230/50
Net weight of standard unit (kg)	80	125	160	200	260	350

Options:

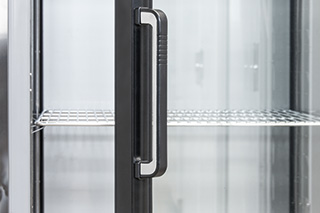

Heated glass panel door The triple glazed glass panel door always ensures an optimum view into the test room. A pane heating avoids formation of condensate.

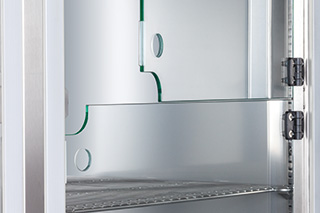

Internal glass door Another option: the internal glass door. When the appliance door is open, it allows a visual check of the specimen – without any unnecessary disturbance of the climate in the test room.

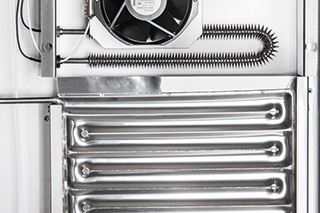

Plate evaporator The stainless steel plate evaporator is always recommendable, whenever acid resistance is required, such as for Drosophila cultivation.

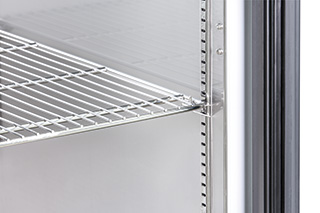

Reinforced insertion grids The reinforced stainless steel grid shelves are recommendable for building material testing or beer Forcier tests. Their maximum carrying capacity is up to 50 kg.

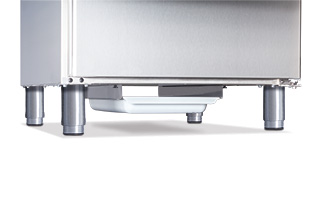

Condensate collecting pan Collecting pan for dew water or condensate. It can be easily withdrawn to the front. Order No.: P9910-01

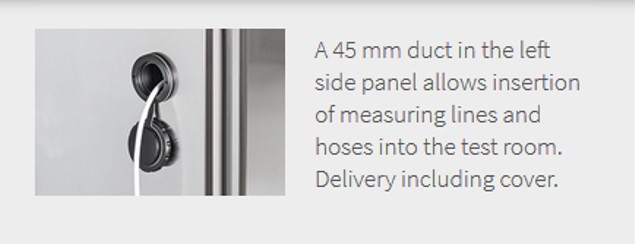

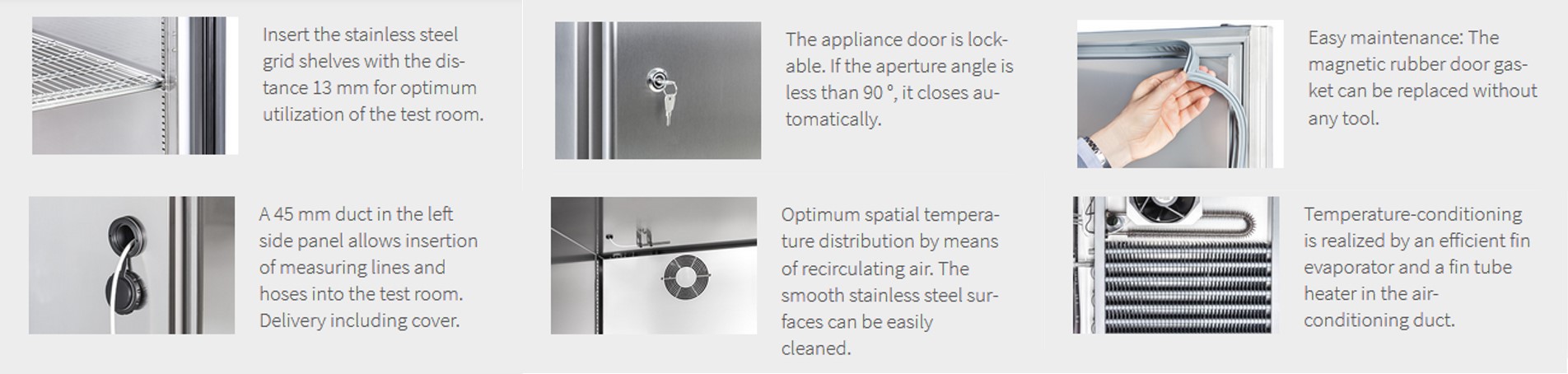

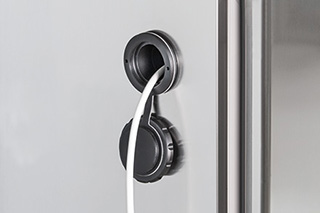

Tubular port A 45 mm duct in the side panel allows insertion of measuring lines and hoses into the test room. Delivery including cover. For the Eco-Line or as additional duct in the Premium-Line. Order No.: E9930-01 (Eco-Line) P9930-01 (Premium-Line)

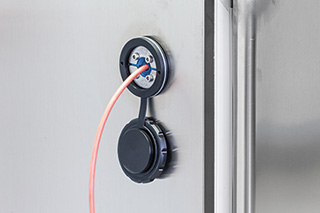

Closing plug Gas-tight closing plug, matching to the tubular port. The gasket system with a flexibility in the range of 4 mm to 23 mm is based on a rubber module with removable skins and can be adapted to the cables, tubes etc. in different sizes. Order No.: E9930-02 (Eco-Line) P9930-02 (Premium-Line)

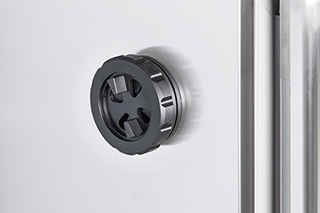

Fresh air rosette 2 Fresh air rosettes, air flow rate adjustable, located in the upper and lower area of the test room, ensure the fresh air supply into the test room. Application: Plants, test animals.

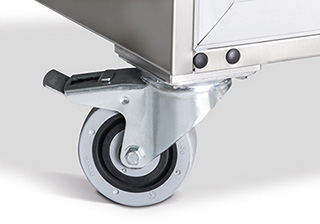

Steering rollers Mobile version of the test cabinet with 4 steering rollers, 2 of them lock-type with brake. Order No.: E9930-04 (Eco-Line) P9930-04 (Premium-Line)

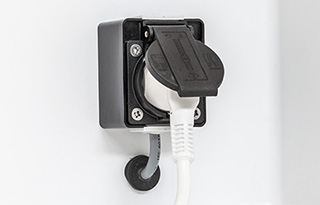

Socket Test room socket for connection of shakers, magnetic mixers etc. in the test room. The switching-on times can be freely programmed by means of the Control2015 touch Order No.: E9930-05 (Eco-Line) P9930-05 (Premium-Line)

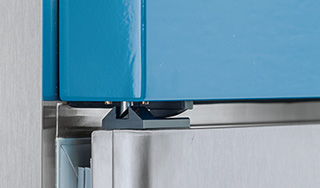

Door release Electromagnetic door release by means of the Control2015 touch. Door unlocking only after successful authorization with entry in the logbook (name, date, time). Order No.: E9930-06 (Eco-Line) P9930-06 (Premium-Line)
