Ideally suited for in vitro fertilisation. Controlled CO2 and O2 concentration
as well as gentle cultivation in Petri dishes
in separate slide-in units.
When it comes to successful in vitro fertilisation, precision and reliability of CO2 incubators are of utmost importance. Even minimal discrepancies in CO2 and O2 concentration, temperature or humidity can influence the development of the cell culture. To keep the recovery times of the INCO108med incubator to a minimum, Memmert has developed an IVF module with separate slide-in units for the Petri dishes. The Memmert CO2 incubator INCOivf is classified as a class IIa medical device and complies with the basic safety requirements as stipulated in the European Medical Device Directive (93/42/EEC).
Temperature range up to +50 °C
Size 108 l
Cultivation in 8 separate slide-in units: only one slide-unit can be opened at a time: quick recovery times due to minimum air exchange
Active humidity control: minimum vaporisation in the chamber interior, no condensation, no cultivation with oil required
The interior including all installations and sensors can be sterilised at 160 °C in a 4-hour programme

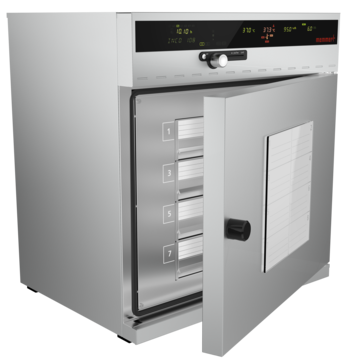

IVF module with separate slide-in units for the cell cultures
In conventional CO2 incubators and in special IVF incubators, vaporisation and condensation are a major problem. The Memmert IVF module is used in a Memmert CO2 incubator INC108med. This ensures that the CO2 content, O2 content and humidity in the interior can be controlled with absolute precision. The active humidification and dehumidification, in particular, keeps vaporisation to a minimum, meaning additional cultivation under oil is not required.
8 slide-in units offer space for a total of 24 4-well dishes, 24 large Petri dishes measuring 60 mm in diameter or 48 Petri dishes measuring 35 mm in diameter. The Petri dishes are placed on indentations for better heat distribution and cannot slip out of position when the slide-in units are pulled out. The low air exchange with the outside ensures fast recovery times for the CO2 content and humidity because as long as one slide-in unit is open, no other unit can be pulled out. Further safety features of the IVF module: easy-to-clean steel, all slide-in units can be labelled individually and are equipped with a pull-out lock, the chamber including all installations can be sterilised in a 4-hour programme and the low-vibration roller feed-throughs of the slide-in units work without lubricant.
Uniform temperature distribution: Interior heated on all 6 sides:
For the INCOmed, the tried and tested Memmert heating concept was once again perfected: heating the interior on all six sides, along with the electronic humidity limit control, is decisive in preventing condensation from forming in the inner chamber, while offering maximum protection to the cell cultures. An aluminium thermal conductive layer supports optimum temperature distribution, and serves as a heat accumulator in case of a temporary power failure. The turbulence-free chamber ventilation ensures a constant and uniform atmosphere.
Stainless steel – a CO2 incubator almost for ever
65 years of permanent development work, as well as extensive feedback from a wealth of experience in the field, are embodied in each Memmert CO2 incubator:
Almost exclusive use of high-quality, corrosion-resistant and easy to clean stainless steel for the working chamber and housing
Alarm functions, three-fold overtemperature protection and simultaneous display of all parameters provide safety for samples and cultures in medicine, life science, environmental technology, bacteriology, virology, biology, biotechnology and zoology.
A wide range of options for programming and documentation using interfaces, Celsius software, integrated log memory and chip cards (features dependent on the controller class)
Three-year guarantee on appliances, not including wear and tear parts
The temperature values of all CO2 incubators are measured according to DIN 12880: 2007-05
Each CO2 incubator is safety-tested and bears CE
