The stirrers are designed for optimal suspension cell culture and the use of microcarriers. The system comprises of a stirrer platform and a number of glass culture vessels.

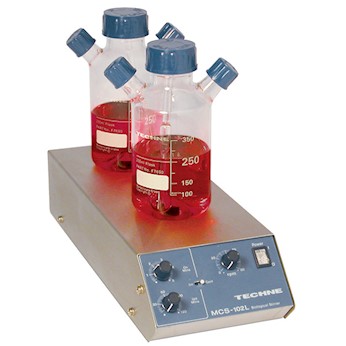

• MCS-102L accommodates two 1 litre culture vessels
• Speed range from 0 to 80rpm
• Softstart/stop for slow acceleration and deceleration
• Interval setting option
• Stainless steel stirrer platform with locators for the culture vessels
• Designed for incubator environments upto 40°C and 95% humidity
Unique stirring action
Calibrated speed control and interval stirring
Cell attachment to microcarriers and high cell yields are ensured by the special softstart/stop design and interval stirring option. The former ensures slow acceleration and deceleration of the stirrer, avoiding excessive turbulence in the culture media and eliminating cell damage. The interval stirring can be used during the attachment phase to further reduce agitation of the media or when culturing particularly fragile cells.
The stirrers create virtually no heat so there is negligible heat transfer from the magnetic drive to the culture vessel, making the system suitable for use in both incubators and cold rooms.
Technical Specification
Parameter | MCS-102L |
Vessels per stirrer | 2 |
Maximum vessel size | 1000ml |
Speed range | 0 to 80rpm |
Speed setting accuracy | <± 3rpm |
Softstart speed control 20 second acceleration | 20 second acceleration 20 second deceleration |
Interval setting: variable on-time | 6 seconds to 5 minutes |
Interval setting: variable off-time | 2 minutes to 2 hours |
Limited operating conditions | 40°C and 95% relative humidity (non-condensing) |
Voltage | Dual Voltage 230/110V 50/60Hz |
Nominal power consumption | 2W |
Dimensions (w x d x h) | 140 x 400 x 90 mm |
Net weight (excluding vessels) | 3.0kg |
Shipping weight | 4.2kg |
Ordering Information
Product Code | Description |
FMCS102L | MCS-102L Biological Stirrer |
