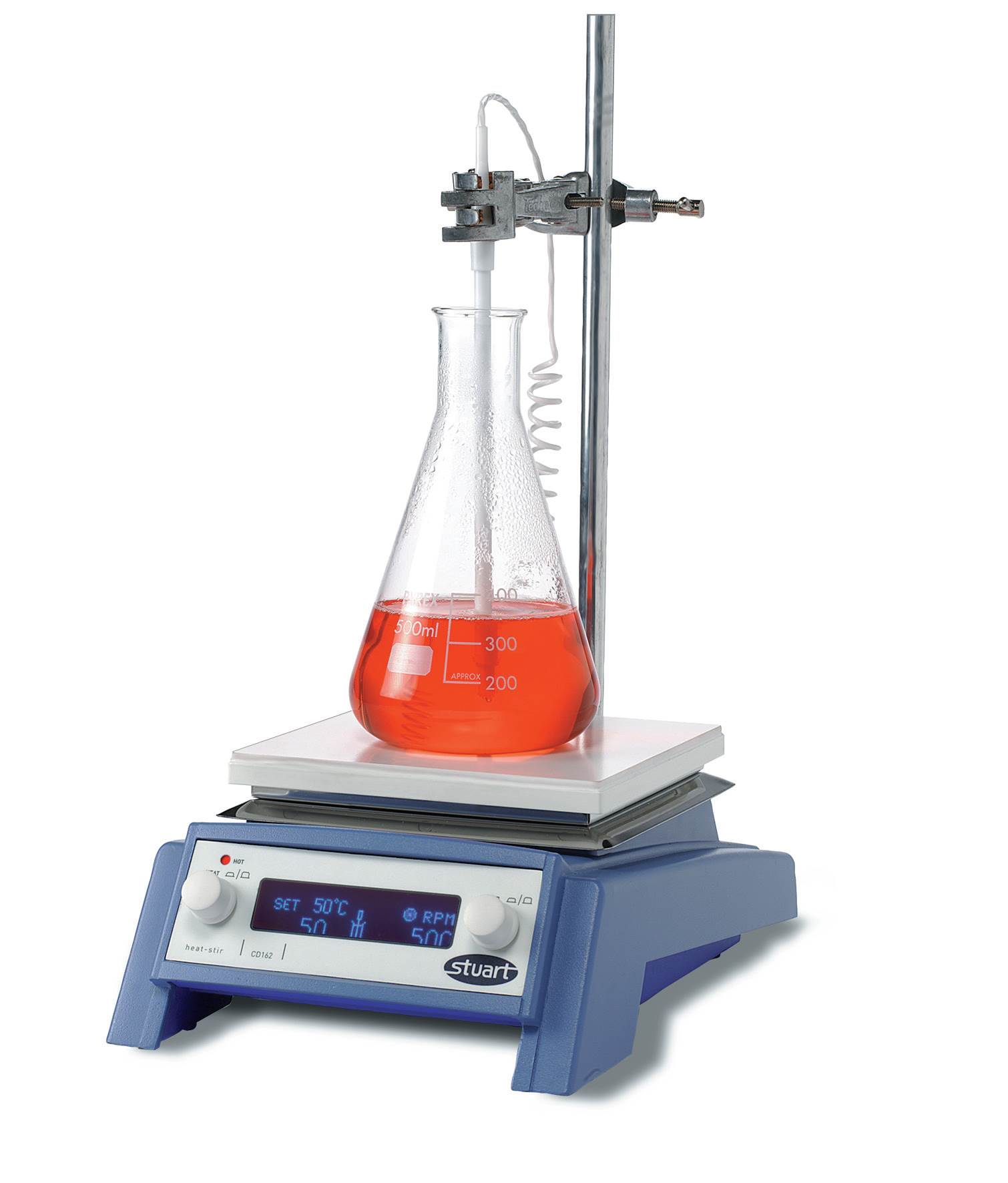

בוחש מגנטי דיגיטלי עוצמתי עם חימום, תוצרת Stuart. דגם CD162

בוחש מגנטי עוצמתי – עד 15 ליטר (מים) ב-200-1300 סל"ד. חימום עד 450° עם פלטת Glass Ceramic. צג דיגיטלי המציג את הטמפרטורה הנוכחית/הטמפרטורה שנקבעה, סל. מסופק עם פרוב טמפרטורה ושני מגנטים לבחישה אופטימאלית.

תוצרת Stuart מבית Bibby Scientific.

3 שנות אחריות (כפוף להרשמה)

תיאור

Digital setting and control of both temperature and speed

Supplied complete with temperature probe for accurate control of liquid temperature

Advanced safety features:

– Flashing "Hot" warning light

– Independent safety circuit to protect against overheating

Choice of robust aluminium or chemically resistant ceramic tops

Sophisticated stirrer hotplates offering digital control of both temperature and stirring speed. Comes complete with a detachable PTFE coated probe which when immersed in a liquid sample can very accurately control its temperature to within ±0.5°C even over a very long period of time.

As the hotplate heats the sample to the set temperature, the advanced microprocessor automatically measures the rate of temperature rise to judge the capacity and nature of samples (e.g. oil or aqueous). It then optimises the heating rate to minimize overshoot and time to set point. An audible alert sounds when the set temperature has been reached.

Both set and actual temperature of the sample are displayed simultaneously on a bright, easy to read vacuum fluorescent display. For maximum security, an independent safety circuit automatically sets to 20°C above the set temperature and shuts off the heater if the temperature exceeds this. Therefore, the hotplate is safe to leave on continuously, even unsupervised e.g. overnight. Internal electronic components are protected against corrosion with a special coating.

Stirring action gives much better temperature uniformity within samples because the liquid is mixed effectively. Powerful magnets and motor give stirring speeds up to 1300 rpm and volumes up to 15 litres*. Stirring speed is set and displayed digitally so that exactly the same speed can be used each time for reproducibility.

If the probe is unplugged, the temperature of the top plate can be set on the display. This can be useful for applications where accurate surface temperature is important such as warming microscope slides and microarrays and specialist electronics.There are two models to choose from:

Model CD162 has a glass ceramic top plate, which is chemically resistant and gives very fast heat up times.

Plate material Glass ceramic
Plate dimensions, mm 160 x 160
Heated area, mm 120 x 120
Heater power, W 500
Display resolution °C 1
Max. plate temp. °C with probe °C 450
Stirrer speed 200
Control accuracy with probe °C ±0.5°C
Stirrer speed, rpm 200 to 1300
Max. stirring capacity, litres 15
Net weight, kg 3.4
Overall dimensions (w x d x h) 190 x 300 x 110
Electrical supply 230V, 50Hz
