• Robust coated aluminium plate
• Flashing "Hot" warning light, mains independent
• Digital display of hotplate surface temperature
• Compact space saving design
• BioCote Anti-microbial protection

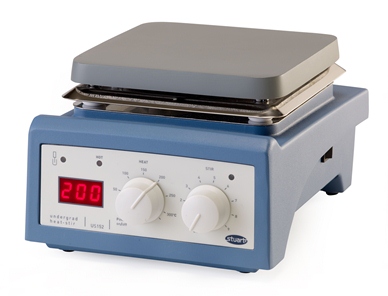

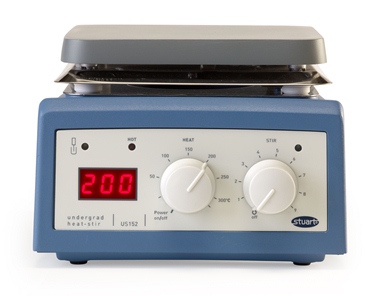

Stylish and economical general purpose hotplate stirrers designed with safety as well as performance in mind. The compact shape takes up less bench space and makes storage easier. The hotplate has a digital display of the hotplate surface temperature and can also be used in conjunction with the SCT1 digital contact thermometer to accurately control sample temperature.
The "Hot" warning light will flash whenever the plate temperature is above 50°C even when the hotplate is turned off and unplugged from the mains. Powerful magnets and motor give stirring speeds up to 2000rpm and is capable of mixing large volumes (up to 15 litres H2O).

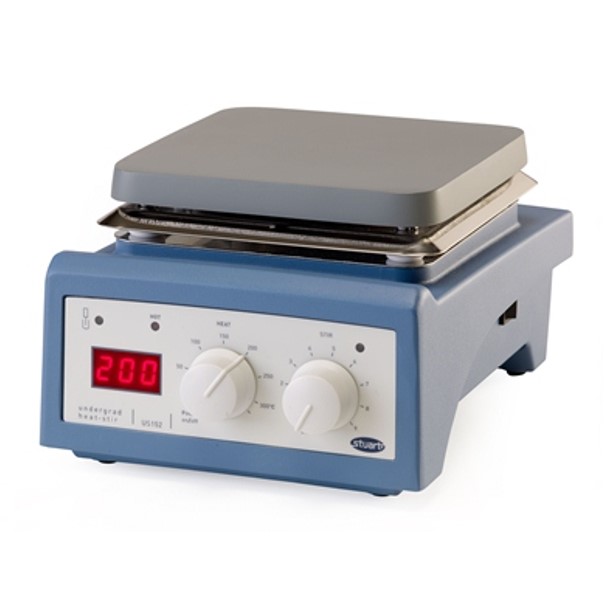

Model US152D has a robust aluminium/silicon alloy top plate for excellent heat transmission. The top plate has a thin ceramic coating for added chemical resistance. A 700W element gives rapid heating and ensures even temperature distribution across the whole surface of the plate.
An integral fitting for a retort rod and are supplied with 2 x 25mm PTFE coated stir bars.
Plate Material | Coated AluminiumSilicon |
Plate Dimensions | 150 x 150 mm |
Digital display | Yes |
Heated Area | 150 x 150 mm |
Heater Power | 700 W |
Max plate temp. | 325°C |
Stirrer Speed | 100 – 2000 RPM |
Maximum Stirring Capacity | 15 L (H2O) |
Dimensions (w x d x h) | 172 x 248 x 120 mm |
Net weight | 2.9 kg |
Electrical supply | 230V, 50Hz, 750W |
IP Rating | 32 |
