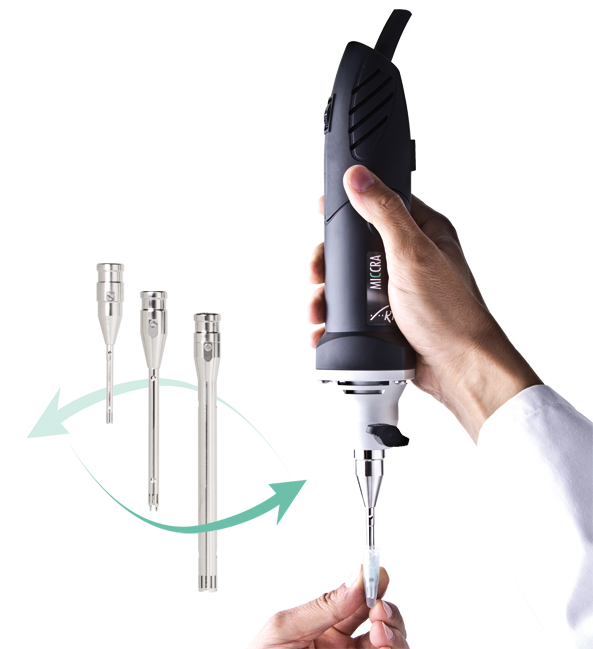

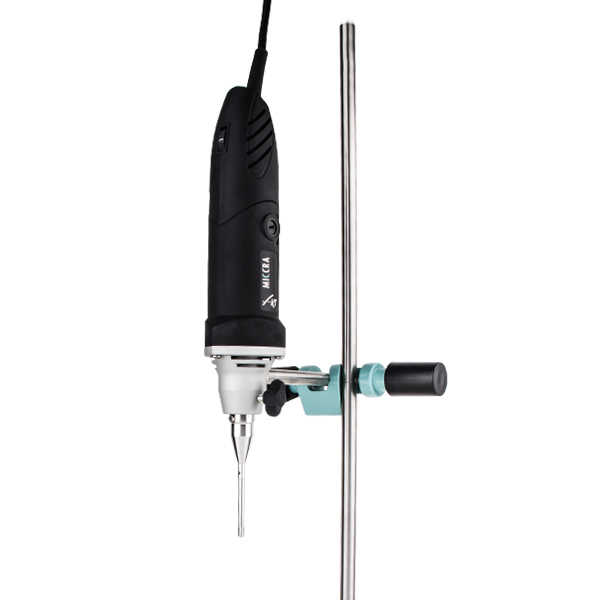

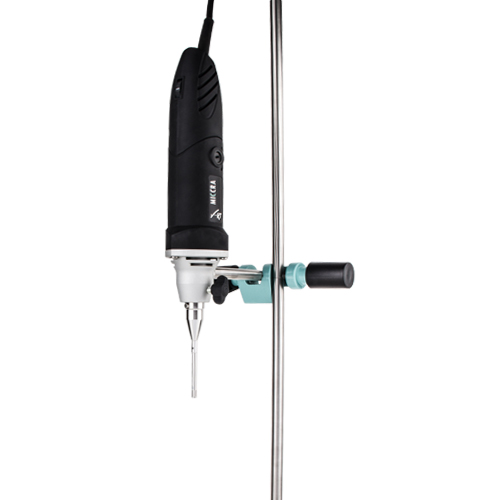

The economy drive MICCRA D-1 is a small hand-held dispersing and homogenizing device for volumes from 0.1 up to 1500 ml. It was especially developed for volumes treated ind the bio- and gene technology. It’s an economic drive for a small price with a “soft-touch” housing. More powerful and high-speed than comparable systems on the market.
- Power input: 145 Watt
- Power output: 95 Watt
- Volume range: 0,1 – 1500 ml
- Speed range: 14.000 – 34.000 rpm
- Speed adjustment: Yes
- Electronic stabilizer: No
- Weight: 900 g
- Dimensions: Diameter 50 x 245mm
- Protection system/safety class: IP 20 / II
- Overload protection: No
- Safety switch: No
- Smooth start: Yes
- Warranty: 2 years
Separately available dispersing tools

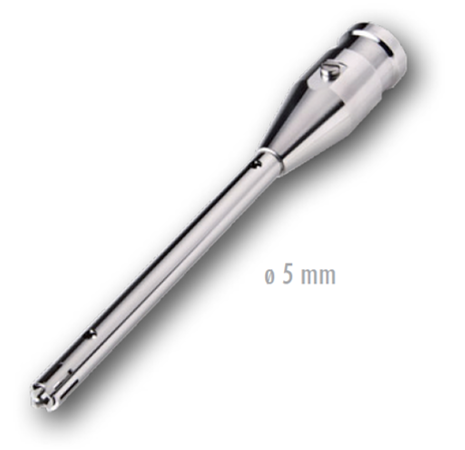

DS-5/K1
Material: 316 L SS
Stator type: Stator 5 mm ZkS
Rotor type: Cutting rotor
Tool length: 115 mm
Treatable volume (ref. to H2O): 0,1 – 20 ml
Bearing type: PTFE (plain white)
–

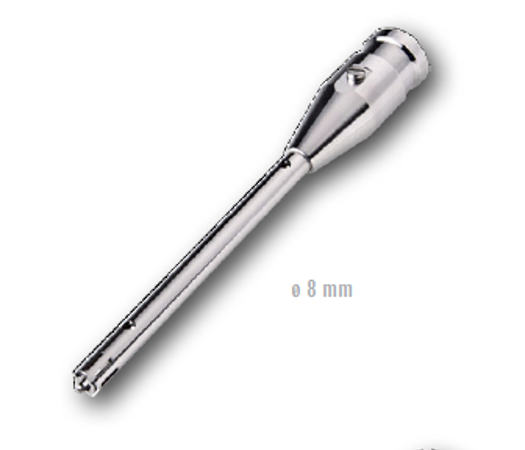

DS-8/P
Material: 316 L SS
Stator type: Stator 8 mm ZkS
Rotor type: Cutting rotor
Tool length: 155 mm
Treatable volume (ref. to H2O): 1,0 – 100 ml
Bearing type: PTFE (plain white)
–

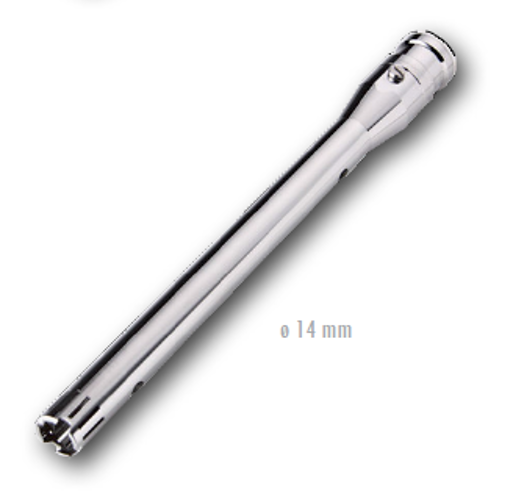

DS-14/P
Material: 316 L SS
Stator type: Stator 14 mm ZkS
Rotor type: Cutting rotor
Tool length: 200 mm
Treatable volume (ref. to H2O): 10 – 500 ml
Bearing type: PTFE (plain white)
