Measure and analyze the rheological properties of a wide range of different samples. Increase efficiency and minimize the risk of operator errors.

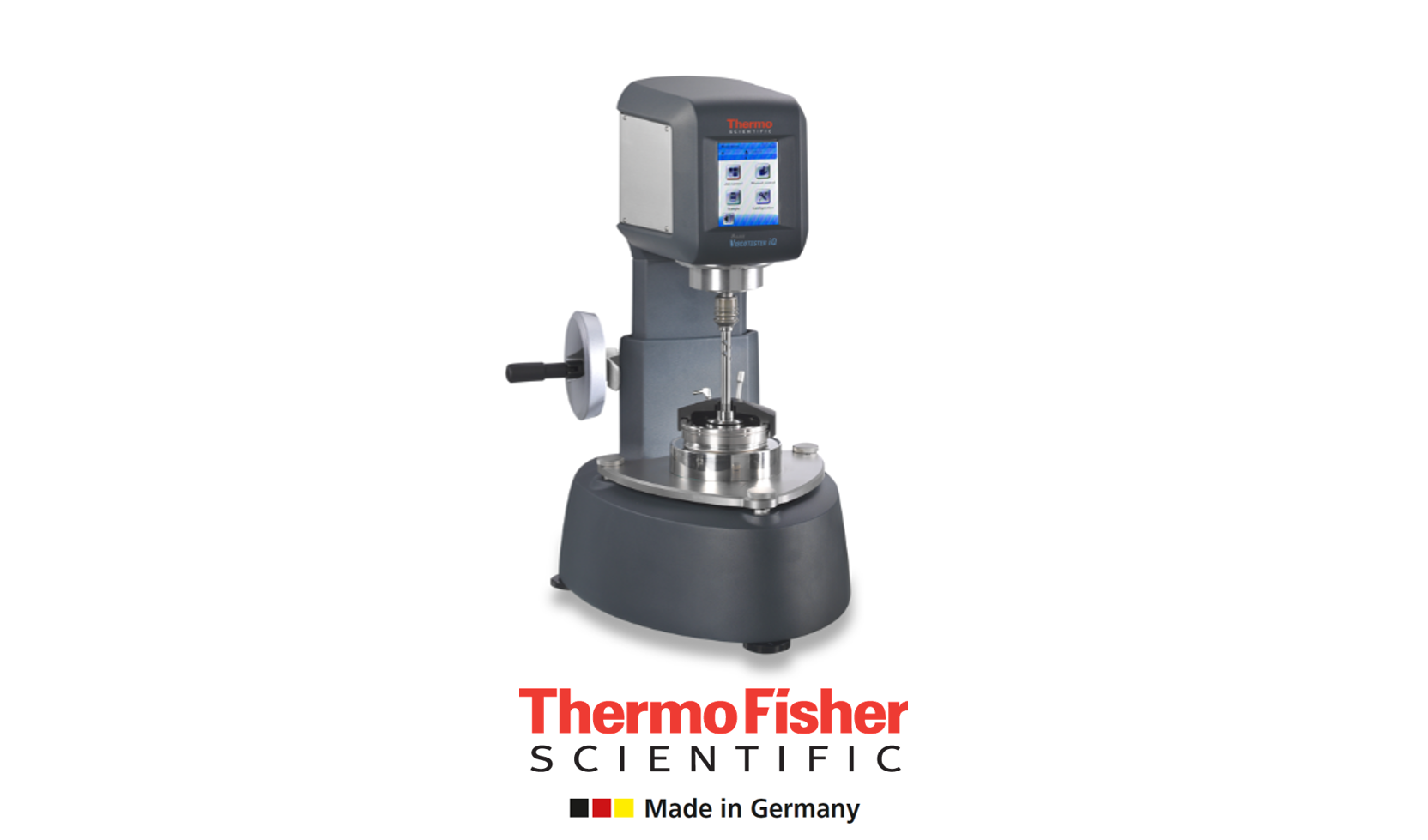

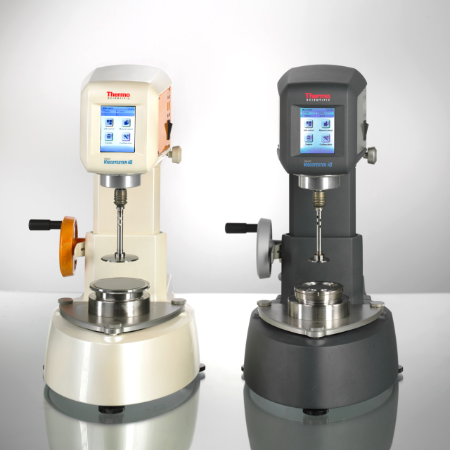

With the Thermo Scientific™ HAAKE™ Viscotester™ iQ Rheometer we provide an intelligent solution for your daily rheological challenges. Designed for intuitive operation, the HAAKE Viscotester iQ Rheometer adapts to individual measurement requirements in laboratories focused on quality control.
This HAAKE Viscotester iQ Rheometer sets new standards in modularity, ease of use and intelligent user guidance. It is the instrument of choice for simple viscosity determination as well as for complex rheological investigations from low viscous liquids to stiff pastes and semi-solids. Used as a standalone unit or fully software controlled, its compact size and small footprint makes the Viscotester iQ Rheometer a portable unit for mobile use or a major tool in quality control laboratories.
Measurement Accuracy: ±2% (Full scale)
Resolution: Less than 10.000mPs•s : 0.1, more than 10.000mPs•s : 1, using low viscosity sample adaptor (optional) : 0.01
Measurement range (mPa・s): 20 – 2,000,000
Speed: 0.3 – 100 rpm, Number of speeds : 18
Power consumption: AAC100V – 240V,50/60Hz
Dimensions & weight: W: 310mm×D:318mm(max)×H:395mm-530mm(adjustable),3.4kg (Main unit)
Language: English, French, Italian, German, Japanese, Portuguese, Spanish, Dutch, Polish, Catalan
Interface: USB
Auotmatic stop: Torque, time
Accessories:
Standard spindle L-Type (A total of four L1 – L4) Standard spindle
Datalogger (to excel)
Optional Thermometer
The development of the next generation Viscotester was driven by the demands of new rheological tasks in quality control. We combine decades of experience in rheology with solutions designed for highly dynamic working environments. Our goal is to enable fast, reliable and precise rheological measurements with maximum ease of operation.
Individual:
Meeting your demands in QC
Easy exchange between different measuring configurations for fast setup and operation
Comprehensive portfolio of measuring geometries and accessories to tailor your instrument
Highly dynamic, powerful EC motor for flexibility across a range of materials and measurements
Exchangeable self-sufficient Peltier or liquid controlled temperature modules for maximum flexiblity
Multiple means of operation: Standalone, with new HAAKE Viscotester iQ RheoApp, or fully software controlled to match your level of usability
Intuitive:
Making QC more convenient for your laboratory
Breakthrough concept self-explaining in setup and handling for error-proof operation
Smart lift function for convenient, accurate and reproducible gap setting
Measuring geometries designed for optimized handling and easy exchange
Correct and precise sample filling for parallel plates for ultimate measuring accuracy
Intelligent:
Guiding your operators through every measurement challenge
Convenient touch screen display for visualization of numerical and graphical measurement sults
Intelligent user guidance for measuring and evaluation procedures, selection of suitable jobs with indication of available measuring range
"Connect Assist" quick coupling of measuring geometries and temperature modules with perfect alignment, automatic recognition and feedback for measuring optimization
"Temperature Assist" rapid real sample temperature control based on a dynamic heat transfer model
Ideal for Industrial QC:
Food
Cosmetics & Pharmaceuticals
Mining & Construction
Petrochemicals
Polymers
Technical Data :
Angular velocity: 0.001 to 157 rad/s
Angular resolution: 1.25 µrad
Torque range: 0.2 to 100 mNm
Torque resolution: 0.01 mNm
Shear stress range*: 0.7 to 63660 Pa
Shear rate range*: 0.004 to 11415 s-1
Viscosity range*: 0.001 to 600000 Pa s
Measuring geometries: coaxial cylinders, double gap cylinder, parallel plates, vane rotors
Temperature range:
TM-PE-C (Peltier): Coaxial cylinders: -5°C** up to 160°C, Parallel plates: 0°C** up to 140°C
TM-LI-C (Liquid): Coaxial cylinders: -20°C up to 180°C***, Parallel plates: -10°C** up to 160°C
Interfaces:
TCP/IP: for communication with PC
USB: 1 port for USB flash drive for HAAKE Viscotester iQ RheoApp, 1 port for keyboard or barcode reader
Dimensions (W x D x H):**** 270 x 500 x 500 mm
Weight:**** 18 kg
Autoswitch power supply: 100 to 240 VAC, 50 / 60 Hz
* Depending on the measuring geometry used. Calculated theoretical values.
** Depending on ambient temperature.
*** Depending on the circulator model and the bath liquid.
**** HAAKE Viscotester iQ incl. Peltier temperature module, heat exchanger and measuring geometry.
