תיאור
Optical Head: Binocular or Monocular Head, 30° inclined, 360° rotatable,
Nosepiece: Backward Quadruple revolving nosepiece
Eyepiece: Widefield Eyepiece WF 10X /18 mm
Objectives: Achromatic DIN Objectives 4x/0.10, 10x/0.25, 40x/0.65 (S), 100x/1.25, Oil, (S)
Stage: Double Layers mechanical stage 132 x 142 mm
Travel aerea 75 x 40 mm,
Focusing: Coaxial Coarse & Fine Adjustment System
Range 24 mm, Fine Division 0,004 mm
Condenser: Abbe Condenser, n.A. 1,2, with iris diaphragm and filter
Illumination: S-LED. light intensity adjustable
Body /power: Sturdy body with supportive rubber and inbuilt power supply 110-240V
Supplied with: Dust cover, green filter, spare fuses, Immersion oil
Dimension: 170 x 310 x 355 mm, netweight 5 kg
Packing: Styrofoam shelve in a cardboard box
Code Description

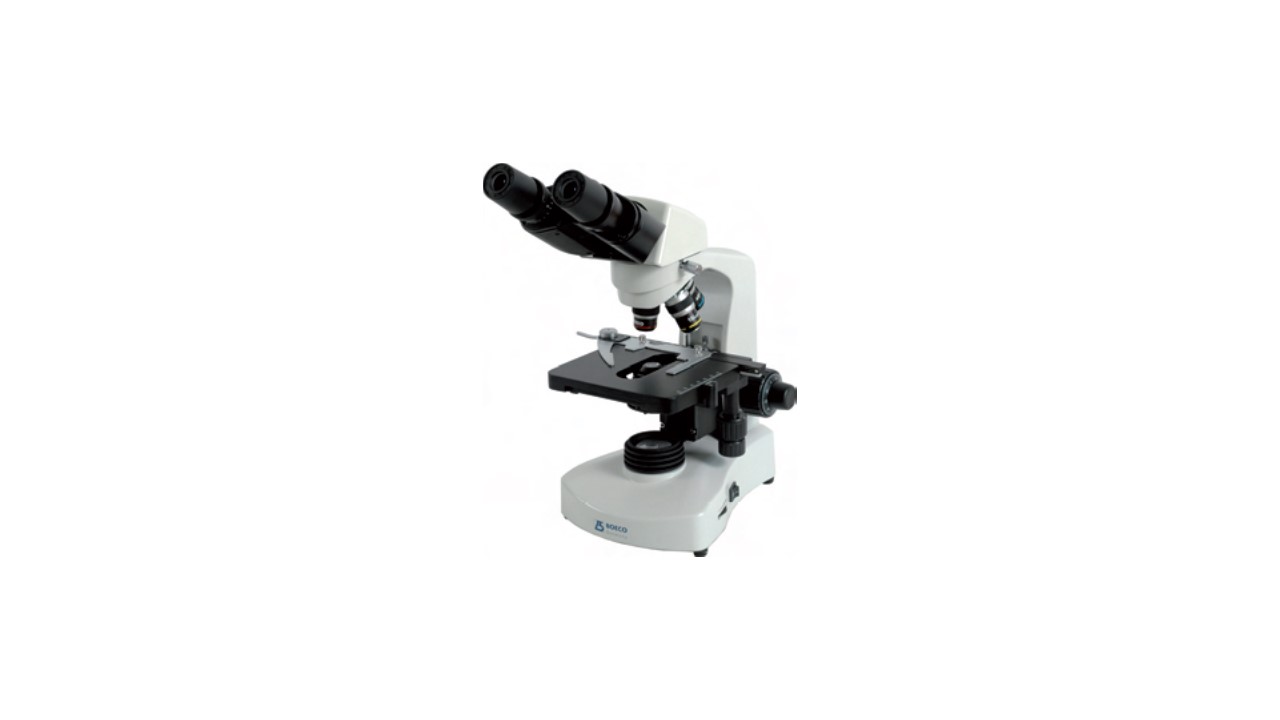

BOE 1170.100 Model BM-117 Binocular, 110-240V, 50/60Hz, Euro plug
