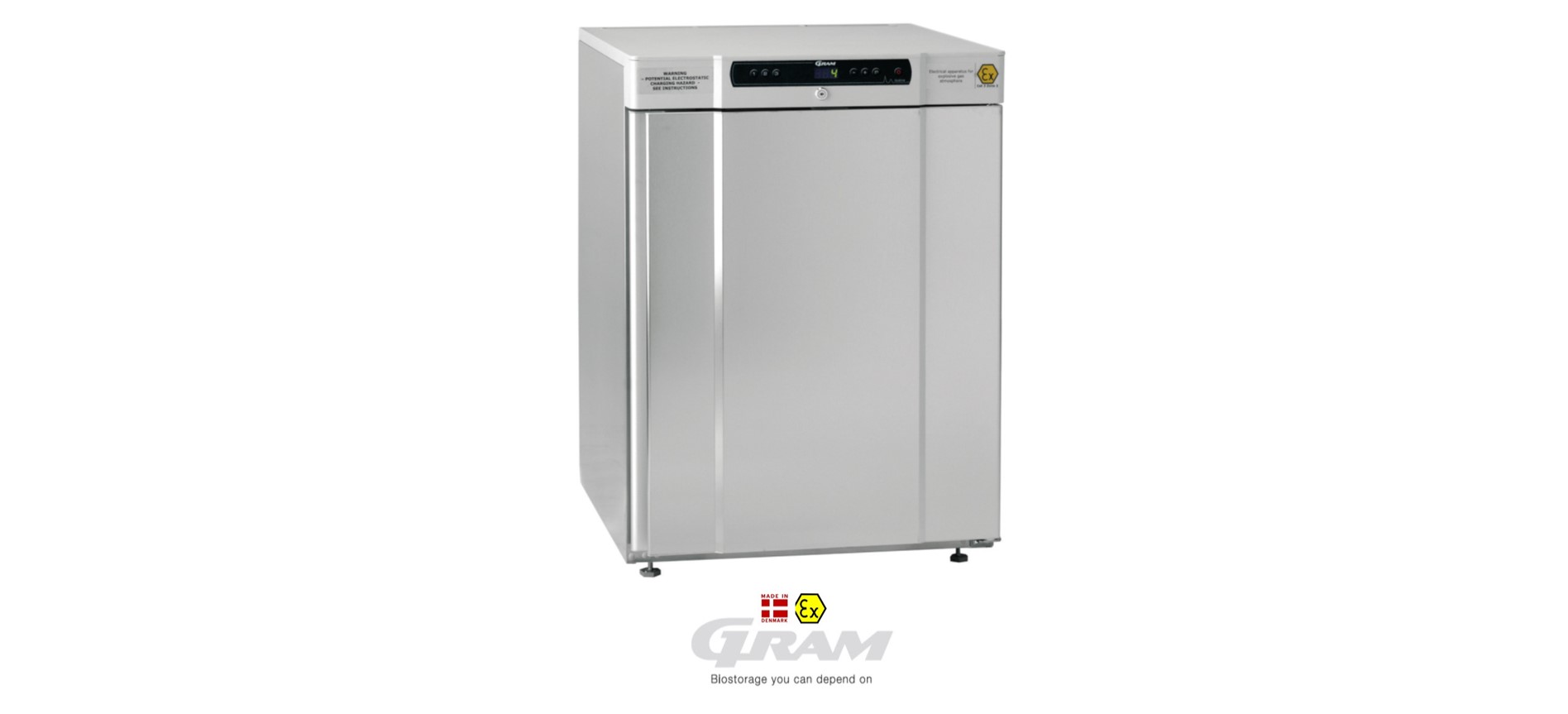

The BioCompact 210 is an under-counter general-purpose refrigerator or freezer cabinet with a small footprint, designed for a wide range of basic biostorage purposes where the prime focus is on dependability and exceptional performance.
The BioCompact 210 provides you with significantly better performance than any other cabinets in this segment, on account of a refrigeration system that does away with cold walls that can damage the contents and a unique air distribution system for storing ordinary biomaterial under consistent, stable conditions.
The design of the BioCompact 210 ensures you lots of ways to deal with individual storage needs, thanks to the versatile interior layout and a comprehensive selection of fixtures and fittings. The small footprint of this design also makes it the perfect biostorage unit for use in confined spaces.
The BioCompact 210 uses environmentally responsible HFC-free foam propellants and is available with CFC-free or HFC-free refrigerants. Based on decades of specialist knowhow, these biostorage units are exceptionally energy-efficient, and are the best per formers on the market in relation to Scandinavian standards.
Available in either white or stainless steel finish, with a one-piece moulded ABS inner lining. Shelves and drawers are mounted in U-shaped rails moulded into the plastic walls.
Top panel with BioLine control unit: The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic door alarm, and a voltage free contact (NO/NC) for remote alarms. The display can be locked. An integrated Gram monitor, for providing documentation for the conditions within the cabinet, is available as an option.
Access port: 24.5 mm port for ease of access, e.g. sensors for external temperature surveillance.
Voltage free contact: Provides a remote alarm in case of power failure or door alarm, with separate delay.
Finned tube evaporator: Using a refrigeration system based on a finned tube evaporator is unique for biostorage products in this segment, and provides unparalleled benefits. The design results in a refrigerated storage space with no cold walls that can damage any delicate items stored in the cabinet. This also makes it possible to ensure even better temperature stability inside the cabinet.
Technical specifications: BioCompact RF210
Temperature range: -5/-25 ºC
Ambient temperature range: Solid door10/35 ºC; glass door (RR) 10/32 ºC
Control Unit: Gram BioLine MPC 4.6, voltage-free contact, acoustic and visual door alarms that can be programmed individually, and calibration function.
Material interior: ABS lining
Material exterior: Lacquered steel or stainless steel finish
Dimensions mm (W x D x H): 595 x 640 x 830
Gross volume: 125 litres/4.4 cubic feet
Net volume: 104 litres/3.7 cubic feet
Modules for shelves and drawers: 7 shelves, 4 drawers and 1 wire basket
Insulation: 50 mm (cyclopentane)
Refrigerant: R600a or R134a
Base: Wheels/feet*
Connection: 230 V, 50 Hz
Energy consumption: 1.1 kWh/24h
Noise level: 39,7 dB(A)
Refrigeration capacity at -25 ºC: R600a 156 Watt / R134a 149 Watt
Air system: Gram ventilated distribution system
Defrost system: Smart defrost with automatic evaporation of defrost water
