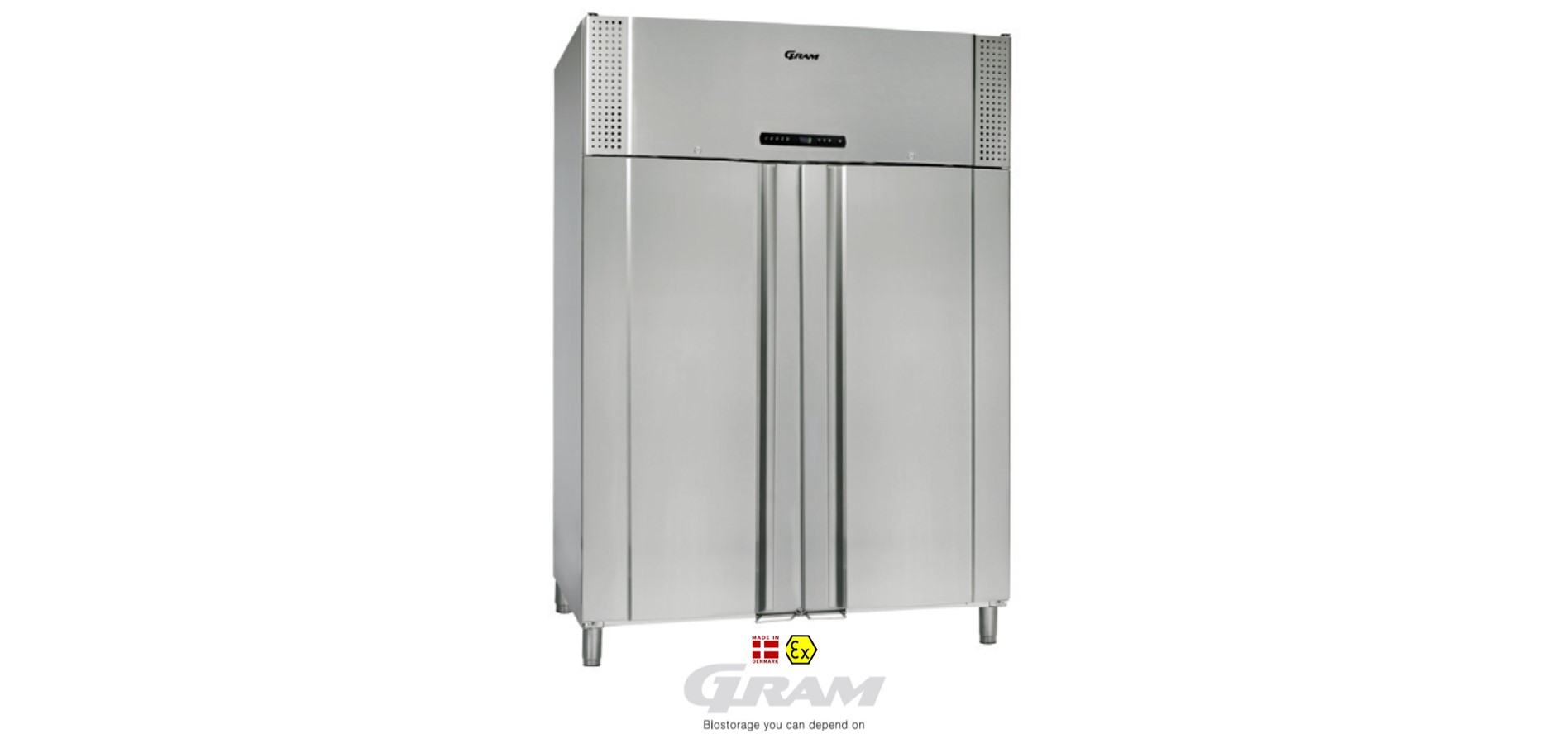

The BioBlood 1270/1400 design is customised to meet the special requirements associated with the controlled storage of blood, plasma and blood–related products. These advanced cabinets have been developed exclusively for blood storage in order to help ensure high, consistent quality at every stage from donor to transfusion. This means uniquely stringent specifications of all the components.
BioBlood cabinets also provide users with an excellent view of the contents. A glass door lets you see at a glance what is inside the cabinet, making checking and access both quicker and easier.
The BioBlood 1270/1400 utilises environmentally responsible HFC-free foam propellants and is available with CFC-free or HFC-free refrigerants.
| Technical specifications | BioBlood BR1270/1400 | BioBlood BF1270/1400 |
| Temperature range | +6/+2 ºC | -5/-25 ºC |
| Ambient temperature range | Solid door 10/43 ºC; glass door (BR) 10/38 ºC | |
| Control Unit | Gram Control Unit with voltage-free contact, E-sensor, acoustic and visual door and temperature alarms that can be programmed individually, alarm recording and calibration function | |
| Material interior Material exterior | Stainless steelLacquered steel or stainless steel | |
| Dimensions mm (W x D x H) | 1270: 1390 x 876 x 2010* / 1400: 1390 x 876 x 2160 | |
| Gross volume | 1270: 1270 litres/44.8 cubic feet / 1400: 1400 litres/49.4 cubic feet | |
| Net volume | 1270: 864 litres/30.6 cubic feet / 1400: 968 litres/34 cubic feet | |
| Modules for shelves and drawers | 1270: Shelves 48 – Drawers 24 / 1400: Shelves 52 – Drawers 26 | |
| Insulation | 60 mm polyurethane with CFC and HFC-free cyclopentane propellant | |
| Refrigerant | R290 / R134a | R290 / R404A |
| Refrigeration capacity at -10 ºC | R290 946 Watt / R134a 703 Watt | – |
| Refrigeration capacity at -25 ºC | – | R290 950 Watt / R404a 947 Watt |
| Energy consumption | 1270: 6.1 kWh/24h / 1400: 6.5 kWh/24h | 1270: 11.0 kWh/24h / 1400: 11.3 kWh/24h |
| Noise level | 50.8 dB(A) | 53.5 dB(A) |
| Base | Legs** | |
| Connection | 230 V, 50 Hz | |
| Air system | BioLine ventilated air distribution system | |
| Defrost system | Automatic smart defrost with re-evaporation of defrost water | |
