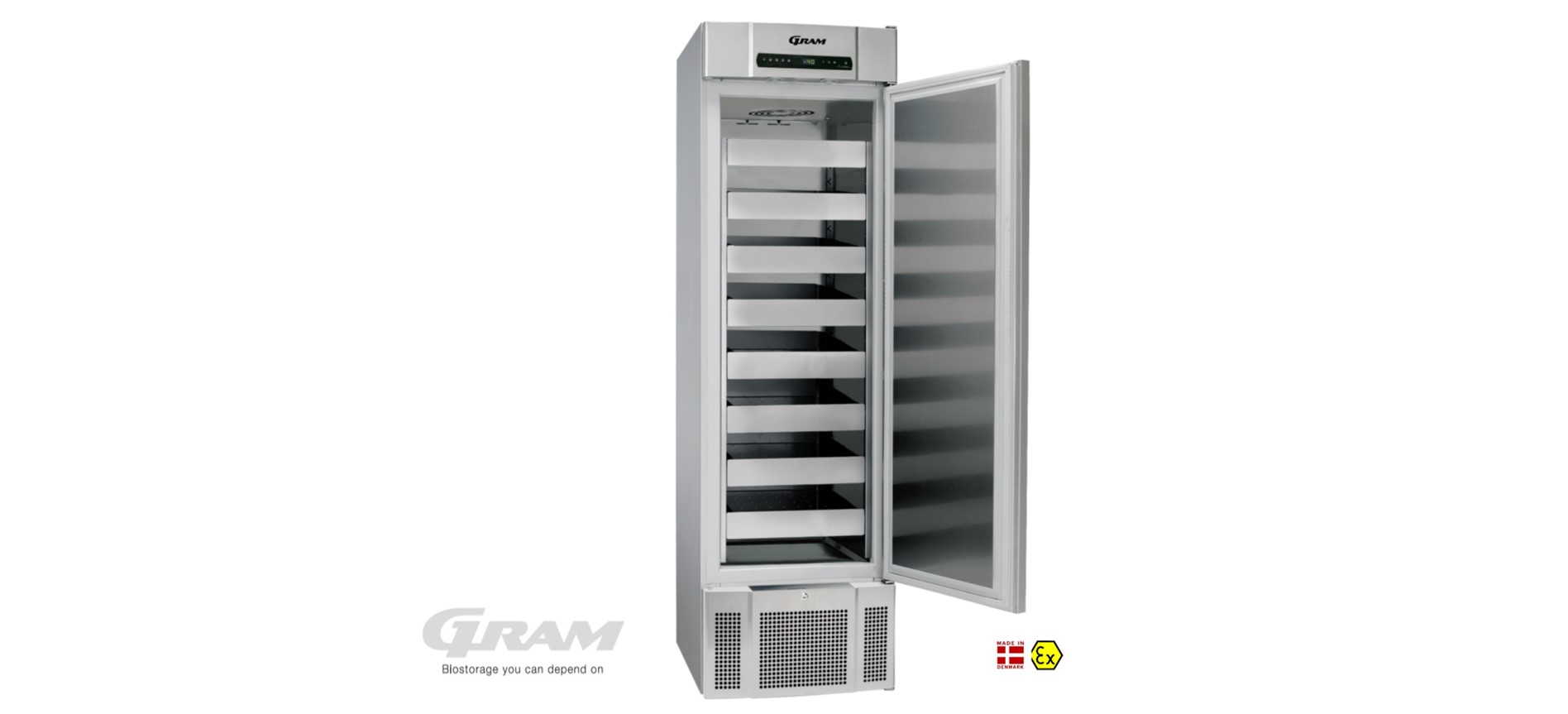

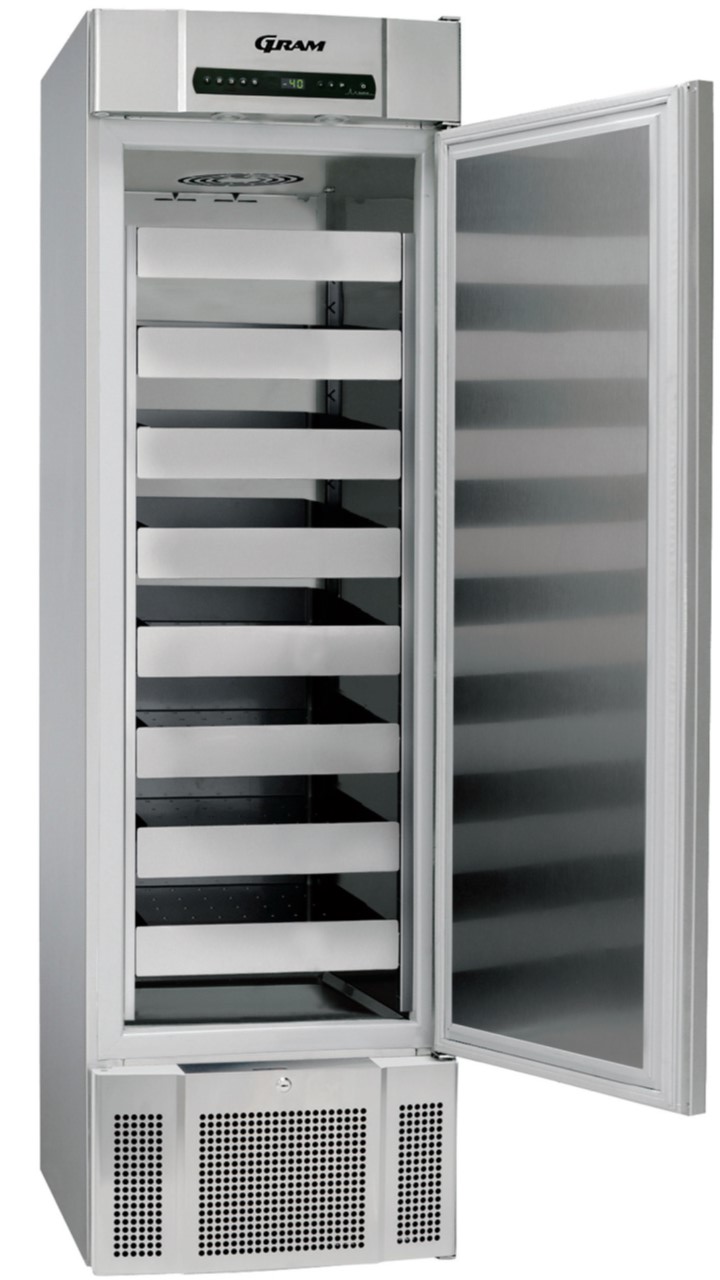

The BioMidi EF425 cabinet is a low temperature freezer that operates in the temperature range -5/-40°C. It is a high–capacity ventilated refrigeration unit that makes sure the interior quickly returns to the specified temperature after the door has been opened.
The control unit is a special Gram Multi Purpose Controller with LED display. It features acoustic alarm that provides clear notification if either maximum or minimum permitted temperature is reached. An acoustic door alarm is also fitted. All alarm parameters are set separately. Another embedded feature in the control-unit is voltage–free contact for IT networks, monitoring systems and/or remote alarms. Add to this alarm recording and Hi/Low temperature read out. E-sensor for temperature reference in the storage compar tment is standard.
The BioMidi EF425 utilises environmentally responsible HFC-free foam propellants and is available with CFC free or HFC-free refrigerants. The functional design ensures easy, ergonomically correct access to the storage space.
Top panel with BioMidi control unit: The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic temperature and door alarms, and a voltage-free contact (NO/NC) for remote alarms. The display can be easily locked.
Access port : 24.5 mm port for ease of access, e.g. sensors for external temperature surveillance.
E-sensor : Extra sensor and reference container for providing a temperature reference within the storage compartment.
Shelves and drawers : A wide range of versatile interior fittings and layouts is available. The operating specifications and the interior layout can both be customised.
Air distribution: The unique Gram air distribution system makes sure the temperature inside the cabinet remains stable at all times, while using the minimum amount of energy.
Aluminium/stainless steel interior: The interior base, including shelf or drawer brackets and support rails are made of stainless steel.
Technical specifications: BioMidi EF425
Temperature range: -5/-40 ºC
Ambient temperature range: 10/30 ºC
Control Unit: Gram BioLine MPC 4.6, voltage-free contact, E-sensor, acoustic door and temperature alarms that can be programmed individually, alarm recording, hi/low temperature and calibration function.
Material interior: Aluminium/stainless steel or stainless steel and inner doors in PMMA
Material exterior: Lacquered steel or Aluminium/stainless steel or stainless steel
Dimensions mm (W x D x H): 600 x 731 x 2000
Gross volume: 425 litres/15.0 cubic feet
Net volume: 303 litres/10.7 cubic feet
Modules for shelves and drawers: Shelves 25 – Drawers 12
Insulation: 60 mm (cyclopentane)
Refrigerant: R290 / R134a
Base: Recessed lockable wheels*
Connection: 230 V, 50 Hz
Noise level: 57,8 dB(A)
Refrigeration capacity at -40 ºC: R290 396 Watt / R404A 378 Watt
Air system: Ventilated Gram distribution system
Defrost system: Smart defrost (electric defrost element)
* The cabinet can also be delivered for mounting on a plinth at no extra charge.
