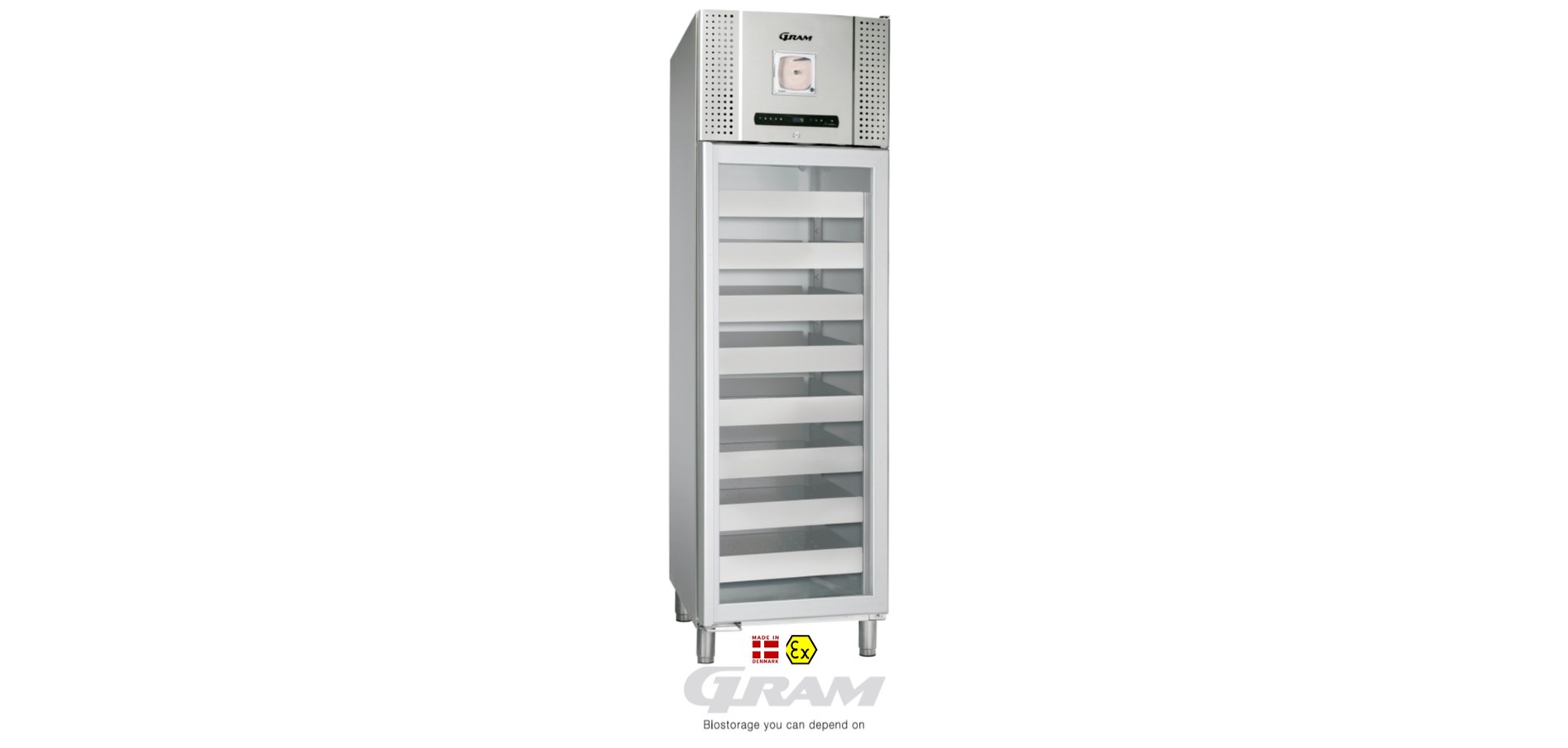

The BioBlood 500 design is customised to meet the special requirements associated with the controlled storage of blood, plasma and blood–related products. These advanced cabinets have been developed exclusively for blood storage in order to help ensure high, consistent quality at every stage from donor to transfusion. This means uniquely stringent specifications of all the components.
BioBlood cabinets also provide users with an excellent view of the contents. A glass door lets you see at a glance what is inside the cabinet, making checking and access both quicker and easier.
The BioBlood 500 utilises environmentally responsible HFC-free foam propellants and is available with CFC-free or HFC-free refrigerants.
| Technical Specifications | BioBlood BR500 | BioBlood BF500 |
| Temperature range | +6/+2 ºC | -5/-25 ºC |
| Ambient temperature range | Solid door 10/43 ºC – Glass door 10/38 ºC | |
| Control Unit | Gram Control Unit with voltage-free contact, E-sensor, acoustic and visual door and temperature alarms that can be programmed individually, alarm recording and calibration function | |
| Material interiorMaterial exterior | Stainless steel Lacquered steel or stainless steel | |
| Dimensions mm (W x D x H) | 600 x 806 x 2160 | |
| Gross volume | 500 litres/17.7 cubic feet | |
| Net volume | 365 litres/12.9 cubic feet | |
| Modules for shelves and drawers* | Shelves 52 – Drawers 13 | |
| Insulation | 60 mm polyrethane with CFC and HFC-free cyclopentane propellent | |
| Refrigerant | R290 / R134a | R290 / R404A |
| Refrigeration capacity at -10 ºC | R290 389 Watt / R134a 314 Watt | – |
| Refrigeration capacity at -25 ºC | – | R290 475 Watt / R404a 568 Watt |
| Energy consumption | 2.0 kWh/24h | 3.6 kWh/24h |
| Noise level | 48,7 dB(A) | 51,2 dB(A) |
| Base | Legs* | |
| Connection | 230 V, 50 Hz | |
| Air system | BioLine ventilated air distribution system | |
| Defrost system | Automatic smart defrost with re-evaporation of defrost water | |
