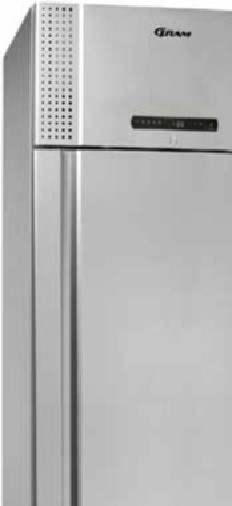

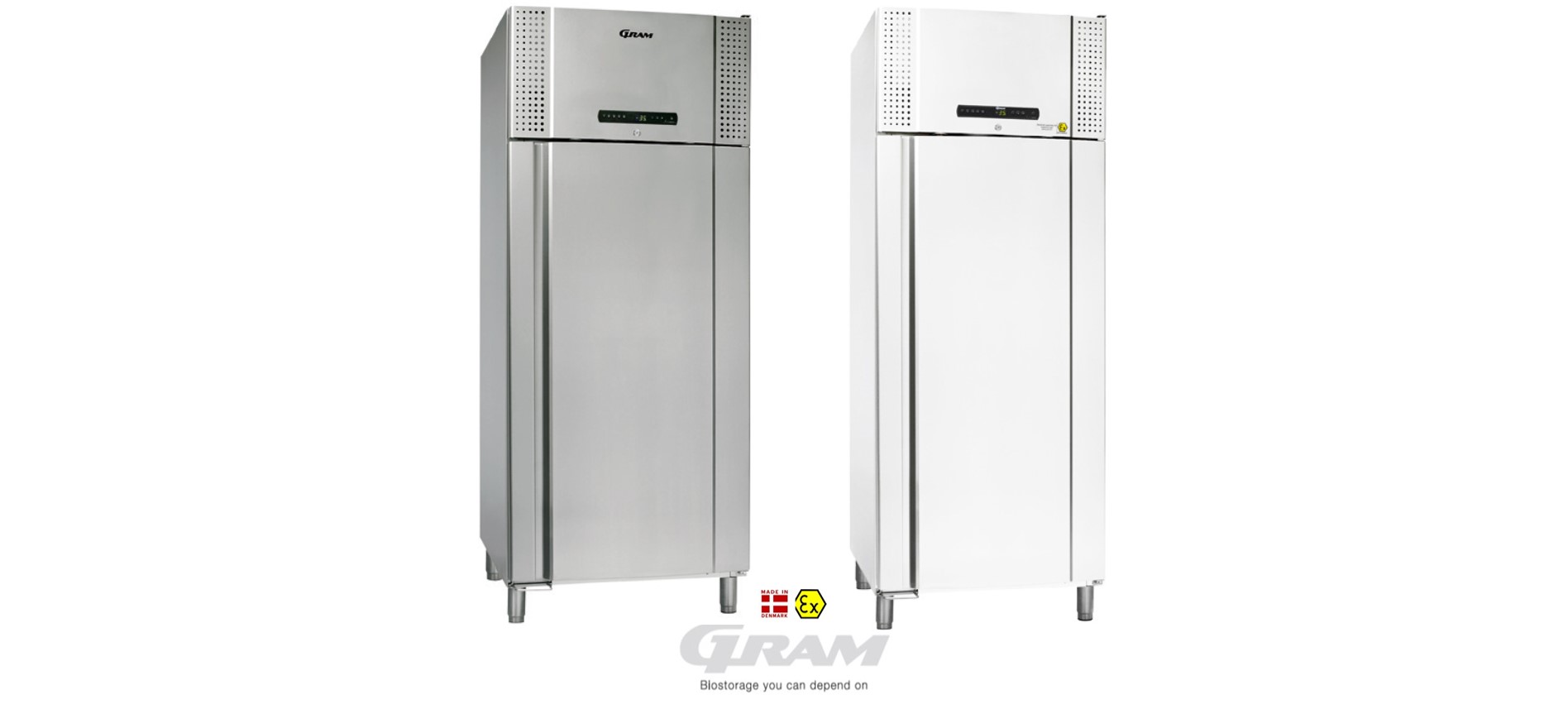

The BioPlus EF 660W cabinet is a low temperature freezer that operates in the temperature range -5/-35°C. It is a high–capacity ventilated refrigeration unit that makes sure the interior quickly returns to the specified temperature after the door has been opened.
The control unit is a special Gram Multi Purpose Controller with LED display. It features acoustic alarm that provides clear notification if either maximum or minimum permitted temperature is reached. An acoustic door alarm is also fitted. All alarm parameters are set separately.
Another embedded feature in the control-unit is voltage–free contact for IT networks, monitoring systems and/or remote alarms.
Add to this alarm recording and Hi/Low temperature readout. E-sensor for temperature reference in the storage compartment is standard.
The BioPlus EF 660W utilizes environmentally responsible HFC-free foam propellants and is available with CFC-free or HFCfree refrigerants.
The functional design ensures easy, ergonomically correct access to the storage space.
Top panel with BioLine control unit: The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic temperature and door alarms, and a voltage-free contact (NO/NC) for remote alarms. The display can be easily locked. An integrated Gram monitor, for providing documentation for the internal cabinet conditions is fitted on the control.
Access port: 24.5 mm port for ease of access, e.g. sensors for external temperature surveillance.
E-sensor: Extra sensor and reference container for providing a temperature reference within the storage compartment.
Shelves and drawers: A wide range of versatile interior fittings and layouts is available. The operating specifications and the interior layout can both be customised.
Air distribution: The unique Gram air distribution system makes sure the temperature inside the cabinet remains stable at all times, while using the
minimum amount of energy.
Stainless steel interior: The internal sides and bottom are of stainless steel. Shelf and drawer brackets and support rails are also made of stainless steel.
Technical specifications: BioPlus EF 660W
Temperature range: -5/-35 ºC
Ambient temperature range: 10/30 ºC
Control unit: Gram BioLine MPC 4.6, voltage-free contact, E-sensor, acoustic door and temperature alarms that can be programmed individually, alarm recording, hi/low temperature and calibration function.
Material interior: Stainless steel and inner doors in PMMA
Material exterior: Lacquered steel or stainless steel
Dimensions mm (W x D x H): 815 x 756 x 2160
Gross volume: 660 litres/23.3 cubic feet
Net volume: 484 litres/17.0 cubic feet
Modules for shelves and drawers: Shelves 27 – Drawers 13
Insulation: 60 mm (cyclopentane)
Refrigerant: R290 / R404A
Base: Legs**
Connection: 230 V, 50 Hz
Noise level: 55.3 dB(A)
Refrigeration capacity at -40 ºC: R290 396 Watt / R404A 378 Watt
Air system: Ventilated Gram distribution system
Defrost system: Smart defrost and automatic re-evaporation of the defrost water
* Available in height less than 2000 mm
** The cabinet can also be delivered with wheels or for mounting on a plinth at no extra charge.
