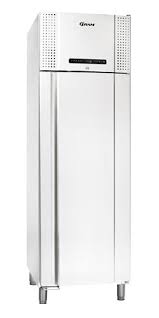

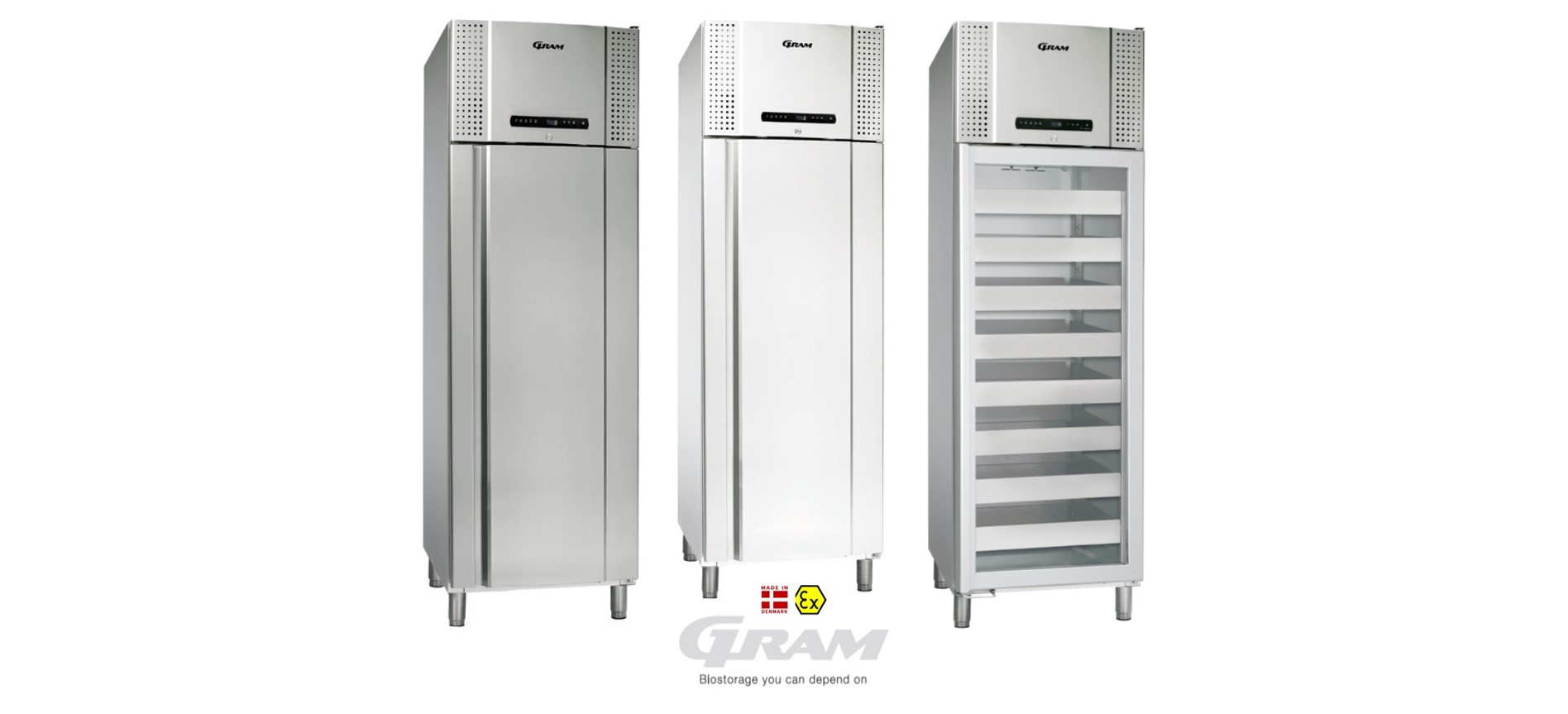

The BioPlus 660D range is designed for the storage of the most delicate biomaterials, in situations where even tiny fluctuations in conditions inside the storage cabinet can have a serious effect on the contents.
BioPlus cabinets also enable you to reduce internal relative humidity, thus cutting down on any likelihood of undesirable contaminants getting near delicate biomaterials.
In terms of performance, these units are designed to provide the very best results even under exceptional conditions.
The BioPlus utilises environmentally responsible HFC-free foam propellants and is available with CFC-free or HFC-free refrigerants.
Available in either white or stainless steel finish, with well-insulated glass or solid doors.
Top panel with BioLine control unit: The MPC unit is specially developed for users of BioLine storage cabinets. Among its many features are acoustic temperature and door alarms, and a voltage-free contact (NO/NC) for remote alarms. The display can be easily locked. An inte¬grated Gram monitor, for providing documenta¬tion for the internal cabinet conditions is fitted on the control.
Access port: 24.5 mm port for ease of access, e.g. sensors for external temperature surveillance.
E-sensor: Extra sensor for providing a temperature reference within the storage compartment.
Shelves and drawers: A wide range of versatile interior fittings and layouts is available. The operating specifications and the interior layout can both be customised.
Air distribution: The unique Gram air distribution system makes sure the temperature inside the cabinet remains stable at all times, while using the minimum amount of energy.
Castors and legs Stainless steel interior: The internal sides and bottom are of stainless steel. Shelf and drawer brackets and support rails are also made of stainless steel.
Technical specifications BioPlus ER660D
Temperature range: -2/+15 ºC
Ambient temperature range: Solid door 10/43 ºC; glass door (ER) 10/38 ºC
Control Unit: Gram BioLine MPC 4.6, voltage-free contact, E-sensor, acoustic door and temperature alarms that can be programmed individually, alarm recording, dry cool function (ER) and calibration function.
Material interior: Stainless steel
Material exterior: Lacquered steel or stainless steel
Dimensions mm (W x D x H): 695 x 876 x 2160
Gross volume 600D: 660 litres/23.3 cubic feet
Net volume 600D: 484 litres/17.0 cubic feet
Modules for shelves and drawers: Shelves 27 – Drawers 13
Insulation: 60 mm (cyclopentane)
Refrigerant: R290 / R134a
Base: Legs**
Connection: 230 V, 50 Hz
Noise level: 48.5 dB(A)
Refrigeration capacity at -10 ºC: R290 389 Watt / R134a 314 Watt
Refrigeration capacity at -25 ºC: –
Air system: Ventilated Gram distribution system
Defrost system: Smart defrost (fan and electric defrost element)
* Available in height less than 2000 mm
** The cabinets can also be delivered with castors or for mounting on a plinth at no extra charge
