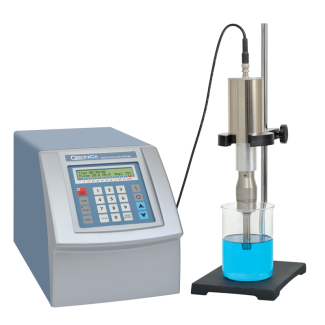

The Q500 is a powerful ultrasonic processor featuring programmable operation and a digital display of operating parameters. Popular applications include nanoparticle dispersion, creating emulsions, cell lysis and homogenization.
Adjustable pulse On and Off times can be programmed from 1 second to 1 minute. Total programming has a maximum setting of 10 hours. A wide variety of probes and accessories are available to handle virtually any application.
Ordering information: Part #Q500 includes a standard ½” diameter probe with replaceable tip (#4220). A variety of probe/horn options are available. If you do not require the standard probe (#4220) the system can be purchased without it. Part #Q500A is the Sonicator system (power supply, converter, cables and wrench set) but excludes the standard probe.
PROGRAMMABLE OPERATION
Set time and amplitude for hands free operation
PULSE MODE
Prevent heat buildup in temperature sensitive samples
DIGITAL AMPLITUDE / INTENSITY CONTROL
Output intensity can be set from 20-100%
ELAPSED TIME INDICATOR
Displays duration of sonication
DISPLAY OF WATTAGE AND JOULES
Real-time energy monitoring
OVERLOAD PROTECTION
Prevents damage to circuitry if a fault occurs
ROHS COMPLIANT
Uses lead free components
PART NO. Q500 INCLUDES:
- Generator
- Converter
- 1/2” diameter probe
- Power cable
- Converter cable
- Wrench set
| Power Rating | 500 Watts |
| Frequency | 20 kHz |
| Programmable Timer | 10 Hours |
| Adjustable Pulse On/Off | 1 Second to 1 Minute |
| Dimensions | 8" W x 15.25" L x 8.5" H |
