תיאור
• Colour touch screen display
• High quality, sealed split beam optics for optimum photometric performance
• Secure multi-user operation
• Save to SD memory cards
• Enhanced productivity
• Extensive range of accessories for flexibility and improve productivity
• LIMS ready
• 3 year warranty

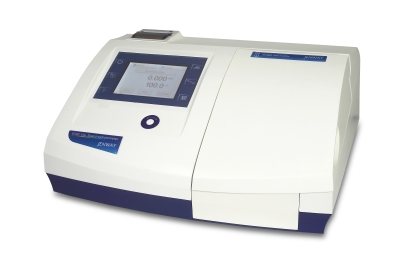

There are three models in the 67 series – Model 6700 covers the visible range of the spectrum and has a 4nm bandwidth; Models 6705 and 6715 cover the UV/visible range of the spectrum and have a 4nm and 1.5nm bandwidth respectively. All three instruments have modes for photometrics, spectrum scanning, multi-wavelength analysis, kinetics and quantitation, giving direct concentration results against single or multi-point calibrations. With extensive post measurement tools to ensure results are presented exactly to each users requirements the 67 series spectrophotometers also offer significant advances in data portability.
Together, the touch screen and colour display give the fastest, most flexible instrument interface possible. Where fine cursor control is required, using the QWheel makes the task easy and precise.
Jenway have developed Secure Multi User Operation for when instruments are shared by a number of users, so access to the instrument functions is controlled through a secure log-in procedure. For maximum security PIN codes can be allocated to individuals, groups or departments and to further increase flexibility each method can be given three levels of security:
• Public access is free to all users.
• Read only methods can be accessed by all users, but only modified by the originator.
• Personal method can only be accessed by the logged in user
The high capacity internal memory of the 67 series enables over 500 methods and results to be stored. Removable SD cards further increases the flexibility and data transfer and enables the direct transfer of results to a PC via a USB port. Here all data can be viewed, exported, saved or printed for generating reports and standard operating procedures. Copying the SD card to the instrument's internal memory enables the easy cloning of multiple instruments, ensuring common laboratory practice and speeding set-up in busy teaching establishments.
The 67 series spectrophotometers are LIMS ready. Jenway have launched Qualoupe Lite, a low cost intuitive laboratory information management system.
Technical Specification
Parameter: 6715
Wavelength range: 190 to 1100nm
Wavelength resolution: 0.1nm
Wavelength accuracy: ± 1.0nm
Wavelength repeatability: ± 0.2nm
Spectral bandwidth: 1.5nm
Transmittance: 0 to 199.9%T
Absorbance: – 0.300 to 3.000A
Accuracy: ± 0.005A at 1.0A
Resolution: 0.1%T, 0.001A
Stability: < 0.001A/h after warm-up Quantitation range: – 99999 to +99999 Quantitation resolution: selec table 1, 0.1, 0.01 or 0.001 Calibration: Up to 20 standards with 5 replicates of each Units: mEq/l, ppm, mg/l, g/l, %, µg/ml, mg/ml, g/dl, mg/dl, µg/l, ng/l, µg/dl, M, mM, µM, U/l, mU/l, U/ml, blank Curve fit algorithms: Linear, quadratic and cubic functions Multi-wavelength: Up to 4 wavelengths Calculations: Ratio, difference, formulae with factors Kinetics time limits: 0 to 9999 seconds Calibration: Standard or factor Analysis: Curve details with mean rate of change plus formula of line of best fit Spectrum range Any range between 190 and 1100nm Scan speed: 1500nm/min Scan interval: 0.1nm Analysis: Auto peaks and valleys, zoom, addition, subtraction, peak ratios, smoothing, area under curve, wavelength table, derivatives, analysis points, overlay Light source: Xenon lamp Configuration: Secure multi-user and free access Number of users: 10 users + supervisor Methods/results memory: > 500 on internal flash memory or removable media
Removable media: SD memory card
Outputs: USB, Centronics, Analogue
Size (w x d x h): 490 x 390 x 220mm
Weight: 7.5kg
Ordering Information
Part Code: Description:
671 / 5B0: 6715 fitted with a single 10 x 10mm cuvette holder
Each spectrophotometer is supplied with 2GB of internal memory, 2GB SD memory card, 100 disposable cuvettes, instruction manual, power cable and PC software on CD ROM with interface cable
QWheel is a registered trademark of Quantum Research
