• Double beam spectrophotometer with highly stable optics
• Variable spectral bandwidth 0.5, 1, 2, 4, 5nm
• Integrated user interface
• USB port for data storage
• Conforms to European Pharmacopeia requirements
• Jenway Prism PC software included as standard
• Extensive range of accessories available
• 1 year warranty

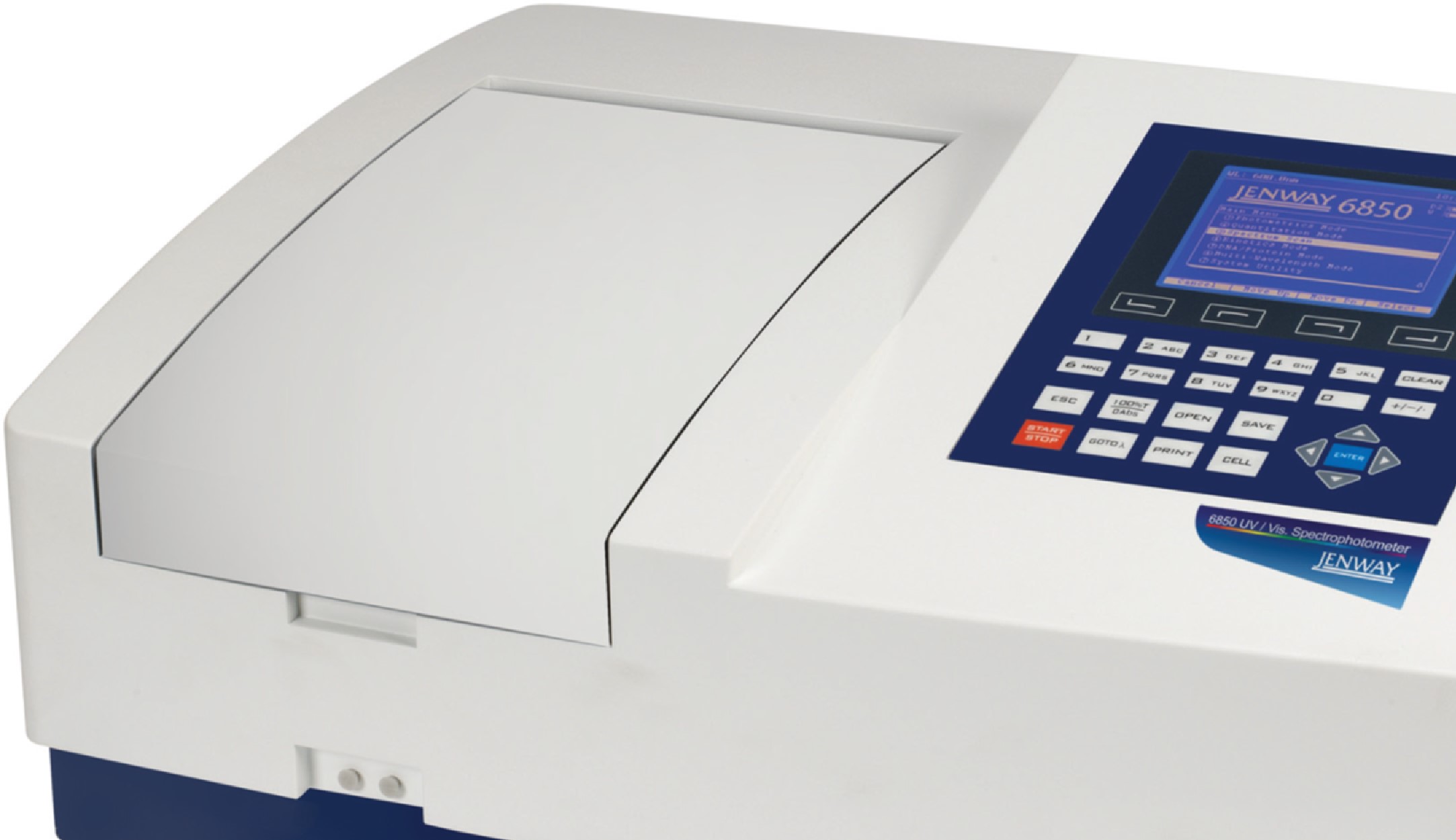

The new 6850 introduces the first double beam spectrophotometer with a variable spectral bandwidth into the Jenway range. The highly stable optics and two detectors measure the sample and reference simultaneously optimising measurement accuracy. The 6850 has measurement modes for photometrics, concentration, multi-wavelength, spectrum scanning, kinetics, quantitation, DNA/RNA and protein analysis.
Jenway Prism PC software is supplied as standard and offers additional functionality with preloaded methods for DNA/RNA and protein analysis, as well as extensive post-measurement tools, unlimited results saving and easy export of data.
The 6850 double beam spectrophotometer is ideal for quality control, general research, pharmaceutical, biochemical and clinical laboratory applications.
Installation Qualification and Operation Qualification (IQ/OQ) is available for the 6850.
Technical Specification:
Parameter: 6850
Wavelength range: 190 to 1100nm
Wavelength resolution: 0.1nm
Wavelength accuracy: ± 0.3nm (at 0.5 and 1nm bandwidth) ± 0.5nm (at 2, 4 and 5nm bandwidth)
Wavelength reproducibility: ± 0.2nm
Spectral bandwidth: Variable 0.5, 1, 2, 4, 5nm
Photometric range: – 0.3 to 3.0A 0 to 200%T
Photometric accuracy: ± 0.002A (0- 0.5A) ± 0.3% T (0- 100%T)
Photometric reproducibility: ± 0.001 Abs (0 to 0.5 Abs) ± 0.002 Abs (0.5 to 1.0 Abs) 0.15%T (0- 100%T)
Resolution :0.1%T, 0.001A
Stray light: < 0.05%T at 220 and 360nm Noise: 0.0005A Stability: ± 0.001A/h at 500nm after 15 min warm up Multi-wavelength: Up to 10 wavelengths, up to 20 wavelengths with PC software Calculations: Ratio, difference, formulae with factors Spectrum range: Any range between 190 and 1100nm Scan speed: 100 to 2000nm/min Scan interval: 0.1, 0.2, 0.5, 1, 2 or 5nm Analysis: Auto peaks and valleys, zoom . Addition, subtraction, peak ratios, smoothing, area under curve, wavelength table, derivatives, overlay with PC software Kinetics: Up to 12 hours with time intervals of 0.1, 0.2, 0.5, 1, 2, 5, 10 or 30 seconds Analysis: Slope and formula of line of best fit between any two points Quantitation: points Up to 3 wavelengths Quantitation Calibration: Blank with up to 10 standards or factor Concentration range: 0- 99999 Calibration: Blank with standards or factor DNA/ RNA and Protein: DNA/RNA Ratio, concentration, A320 correction Light source: Tungsten halogen and Deuterium lamps Lamp changeover: 325 to 370nm selec table Outputs: USB and parallel Operating system: Windows 2000, XP, Vista, Windows 7 Electrical supply: 120VA, 220/ 110V, 50/ 60Hz Size (w x d x h): 600 x 450 x 200mm Weight: 22kg Ordering Information: Part Code: Description: 6850/ 230V: 6850 double beam spectrophotometer, supplied fitted with single 10x10mm cuvette holder in sample and reference position, instruction manual, power cables, PC software on CD ROM with USB connection cable and dongle, 4GB USB memory stick, 2 x quartz cuvettes, 4 x glass cuvettes and FREE dust cover and 230V power supply
