תיאור
• Icon driven software
• Small footprint
• Autologging capabilities
• Press to read xenon lamp (7305)
• Extensive range of accessories available
• 3 year warranty

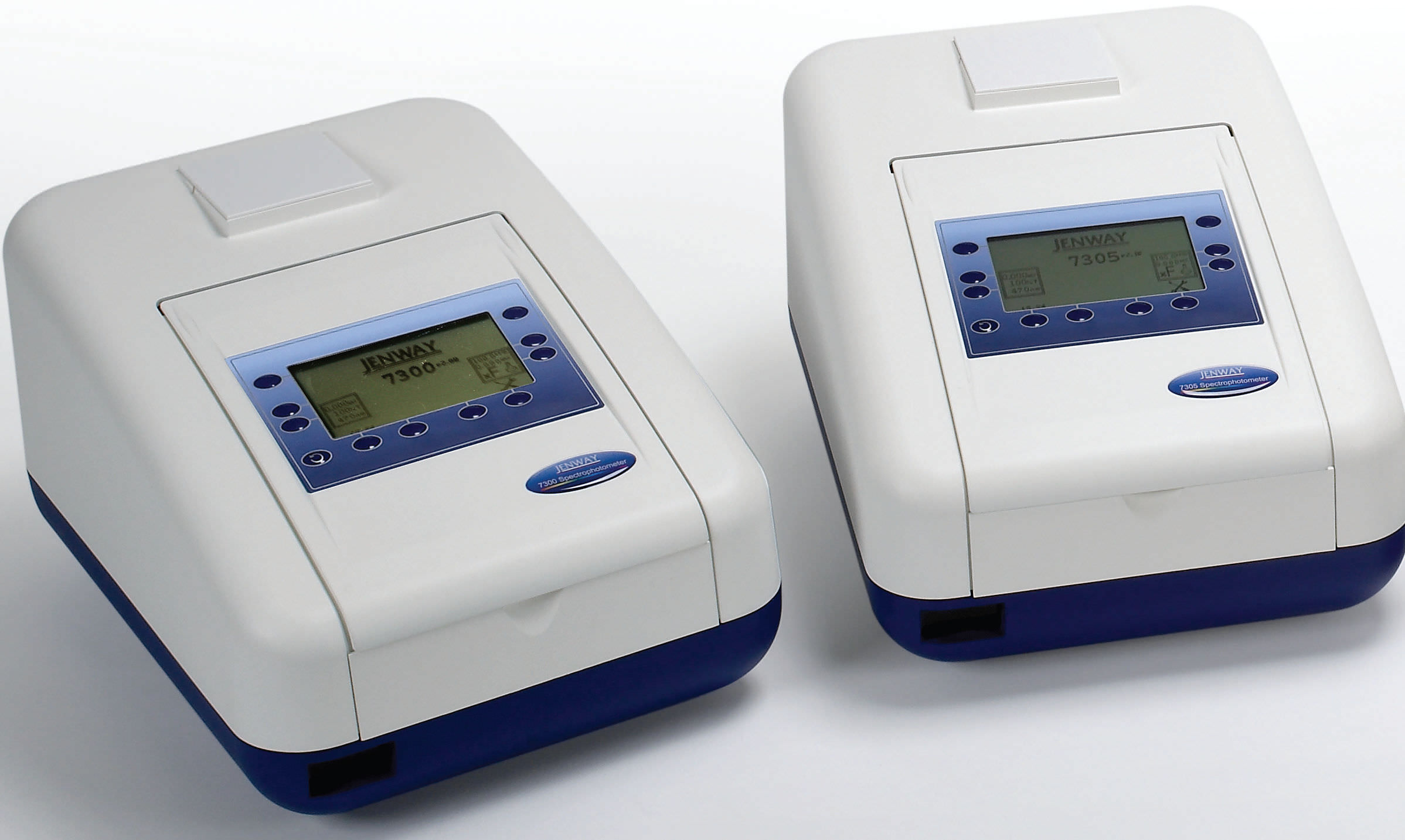

The 73 series introduces four new spectrophotometers to the extensive Jenway range. These spectrophotometers use icon driven software and have an improved navigation system for easy and intuitive usability. The range includes two basic models, 7300 and 7305 and two advanced models, 7310 and 7315. The 7300 and 7305 feature measurement modes for absorbance, % transmittance and concentration.
All of the models in the 73 series range are covered by a three year warranty which includes the xenon lamp. These spectrophotometers are easy to use and ideal for use in education and general QC laboratories.
Technical Specficiation:
Parameter: 7305
Wavelength Range: 198 to 1000nm
Light source: Xenon lamp
Resolution: 1nm
Accuracy: ± 2nm
Repeatibility: ± 0.5nm
Spectral bandwidth: 5nm
Photometric Transmittance: 0 to 199.9%
Photometric Absorbance: – 0.300 to 2.500
Photometric Accuracy: ± 1%T, ± 0.01Abs at 1.000 Absorbance
Photometric Resolution: 0.1%T, 0.001A
Concentration Range: – 300 to 9999
Concentration Resolution: selec table 1/ 0.1/ 0.01/ 0.001
Concentation Calibration: Blank with a single standard or factor
Concentration Units: no units, %, ppm, EBC, SRM, mEq/l, mEq, M, mM, µM, nM, U, U/l, U/ml, g/l, mg/l, µg/l, ng/l, g/dl, mg/dl, µg/dl, mg/ml, µg/ml, ng/ml, µg/ul, ng/ul, mol/l, mmol/l
Concentration Factor: 0.001 to 10000
Concentration Standard: 0.001 to 1000
Outputs: Analogue, RS232, Integral printer
Size (w x d x h): 275 x 400 x 220mm
Weight: 6kg
Ordering Information:
Part Code: Description:
730 501: 7305 UVvisible spectrophotometer fitted with 10x10mm cuvette holder, supplied with pack 100 disposable cuvettes, instruction manual, universal power supply, PC software on CD ROM and interface cable
