תיאור

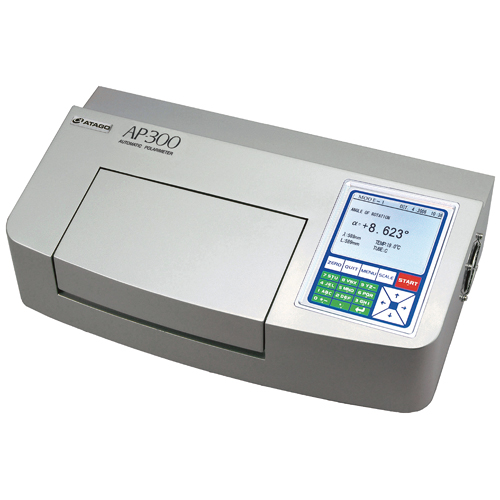

The AP-300 fully automatic polarimeter measures a sample easily by setting the observation tube (filled with a liquid sample) in the sample chamber and pressing START.
Digitally displayed measurement values are large and easy to read. The AP-300 generally used in pharmaceutical, perfume, cosmetic, industrial, chemical, and food factories is the best for measuring the angle of rotation. In addition, the built in International Sugar Scale is used widely in sugar factories.
| Model | AP-300 |
|---|---|
| Cat.No. | 5291 |
| Scale | Angle of Rotation, International Sugar Scale (without temperature compensation), International Sugar Scale (with Automatic Temperature Compensation) |
| Measurement Readings | Angle of Rotation, International Sugar Scale (without temperature compensation), International Sugar Scale (with Automatic Temperature Compensation), Specific Optical Rotation, Concentration, and Purity |
| Measurement Range | Angle of Rotation : -89.999 to +89.999° International Sugar Scale : -130.000 to +130.000°Z |
| Resolution | Angle of Rotation : 0.001° International Sugar Scale : 0.001°Z |
| Measurement Accuracy | Angle of Rotation Displayed value : ±0.01° (-35.00 to +35.00°) Relative precision : ±0.2% (-35.01° to -89.99° , +35.01° to +89.99°) International Sugar Scale Displayed value : ±0.03°Z (-101.00 to +101.00°Z) Relative precision : ±0.2% (-130.00 to -101.01°Z , +101.01 to +130.00°Z) (Checked by reading a standard Quartz Plate) |
| Temperature indication | Resolution±0.1°, Accuracy:±0.5° |
| Temperature correction range for International Sugar Scale | 18.0 to 30.0° |
| Display Panel | Color LCD with backlight |
| Light source | white LED |
| Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
| Output | • Digital Printer DP-63 or DP-AD (Optional) • RS-232C |
| Manual Calibration | Enables manual calibration by measuring a standard Quartz Plate |
| Power Supply | AC100V to 240V 50/60Hz |
| Included Accessories | 100mm (5mL), 200mm (10mL) Observation tube (1each) Software, PolariSoft |
| Dimensions & Weight | 48.5×28.5×17.5cm, 14.4kg (Main Unit only) |
| Power consumption | 65VA |
