Specifications

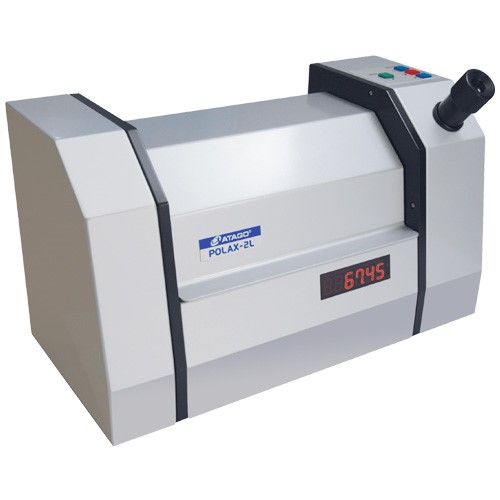

| Model | POLAX-2L |
|---|---|
| Cat.No. | 5223 |
| Scale | Angle of rotation International sugar scale |
| Measurement Range | Angle of rotation : -179.95° to +180.00° International sugar scale : -130.0°Z to +130.0°Z |
| Resolution | Angle of rotation : 0.05° International sugar scale : 0.1°Z |
| Measurement Accuracy | Angle of rotation : ±0.10° International sugar scale : 0.3°Z |
| Temperature compensation range | 5 to 40°C |
| Light source | LED with interference filter |
| Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
| Power Supply | AC100 to 240V 50/60Hz |
| Included Accessories | Observation tubes : 100mm tube and 200mm tube / each |
| Dimensions & Weight | 43×22×30cm, 10.3kg (Main Unit only) |
Options
· Quartz control plate 34°(100°Z) : RE-72045
· Quartz control plate 17°(50°Z) : RE-72044
· Quartz control plate 8°(25°Z) : RE-72043
· Quartz Control Plate -34° (-100°Z) : RE-72050
· Quartz Control Plate -17° (-50°Z) : RE-72049
· Quartz Control Plate -8° (-25°Z) : RE-72048
· Unjacketed Flow Tube (Glass) 50mm/4.5ml : RE-72051
· Unjacketed Flow Tube (Glass) 100mm/9ml : RE-72052
* Calibration Certificate : Contact an ATAGO representative for details.
Parts
· Observation tube 50mm long OT-50(P) 2.5ml : RE-6722
· Observation tube 100mm long OT-100 (P) 5ml : RE-6720
· Observation tube 200mm long OT-200 (P) 10ml : RE-6721
· Small volume tube 100mm long (OT-100M) : RE-6708
· Deck glass : RE-6712
· Rubber packing for observation tube : RE-6713
· Ring nut for observation tube : RE-6714
· Rubber packing for small volume tube : RE-6715
· Ring nut for small volume tube : RE-6717
· Midget fuse (1A) : RE-5784
