High Performance Sugar Analysis, Now Easier Than Ever.
It has become common that dark color – raw sugar samples are measured at 882nm without decolorization treatment.

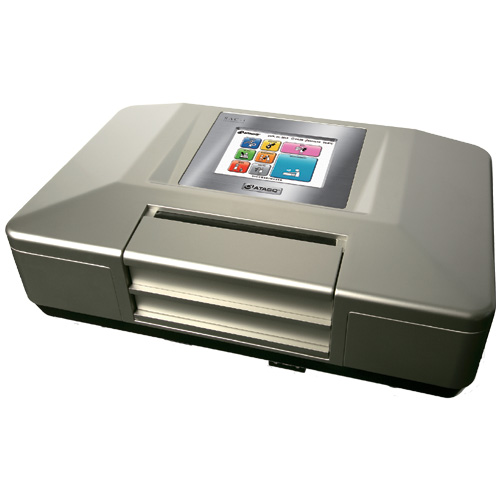

SAC-i 589/882 can measure samples at both 589nm and 882nm by changing the optical units.
| Model | SAC-i 589/882 |
|---|---|
| Cat.No. | 5952 |
| Scale | Angle of Rotation, International Sugar Scale (without temperature compensation), International Sugar Scale (with Automatic Temperature Compensation) |
| Measurement Readings | Angle of Rotation International Sugar Scale (without temperature compensation) International Sugar Scale (with Automatic Temperature Compensation) Specific Rotation Concentration Purity User scale Angle of Rotation (Temperature Compensation of Quartz Plate) Temperature (°C / °F) |
| Measurement Range | Angle of Rotation:-89.9999 to +90.0000° and -360.0000 to +360.0000° International Sugar Scale : -259.0000 to +259.0000°Z |
| Resolution | Angle of Rotation : 0.0001° International Sugar Scale : 0.0001°Z |
| Measurement Accuracy | 589nm
①Angle of Rotation：±0.005° （-45.0 to +45.0°） 882nm ①Angle of Rotation：±0.005° （-19.3 to +19.3°） |
| Temperature compensation range | 10 to 40℃ |
| Ambient Temperature | Use the instrument where the temperature is between 10 to 40°C |
| Display Panel | 7.5 inch color LCD (touch screen) |
| Temperature display accuracy | ±0.2 °C |
| Light source | LED: 589nm interference filter, 882nm interference filter |
| Prism | Glan-Taylor Prism |
| Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) 882nm（infrared nearby） |
| Power Supply | AC100 to 240V, 50/60Hz |
| Included Accessories | Software, PolariSoft |
| Observation tube included | Observation tubes (100mm(5mL)，200mm(10mL)) |
| Dimensions & Weight | 60×36.5×21cm, 20.0kg |
| Power consumption | 140VA |
| Output terminals | Digital Printer DP-63 or DP-AD (sold separately), Output method : RS-232C (9 pin D-Sub male connector) USB flash drive and PC – USB |
