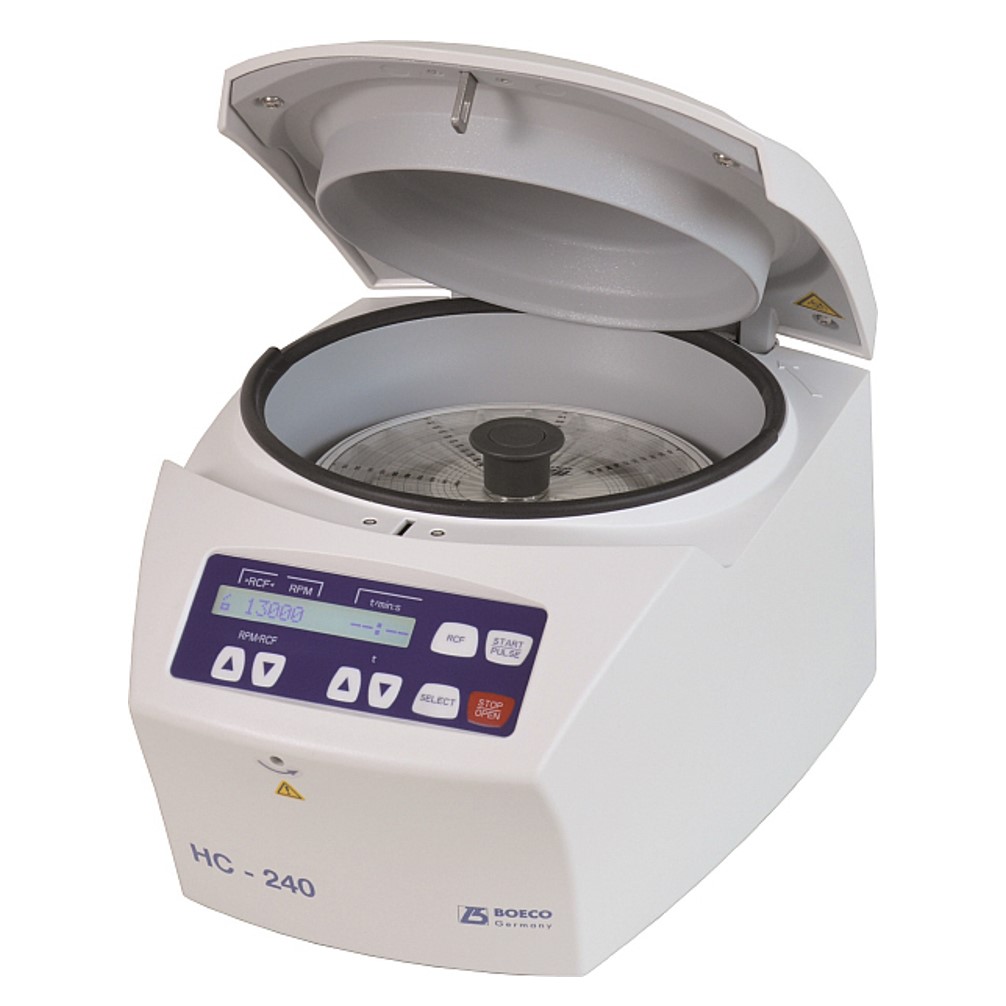

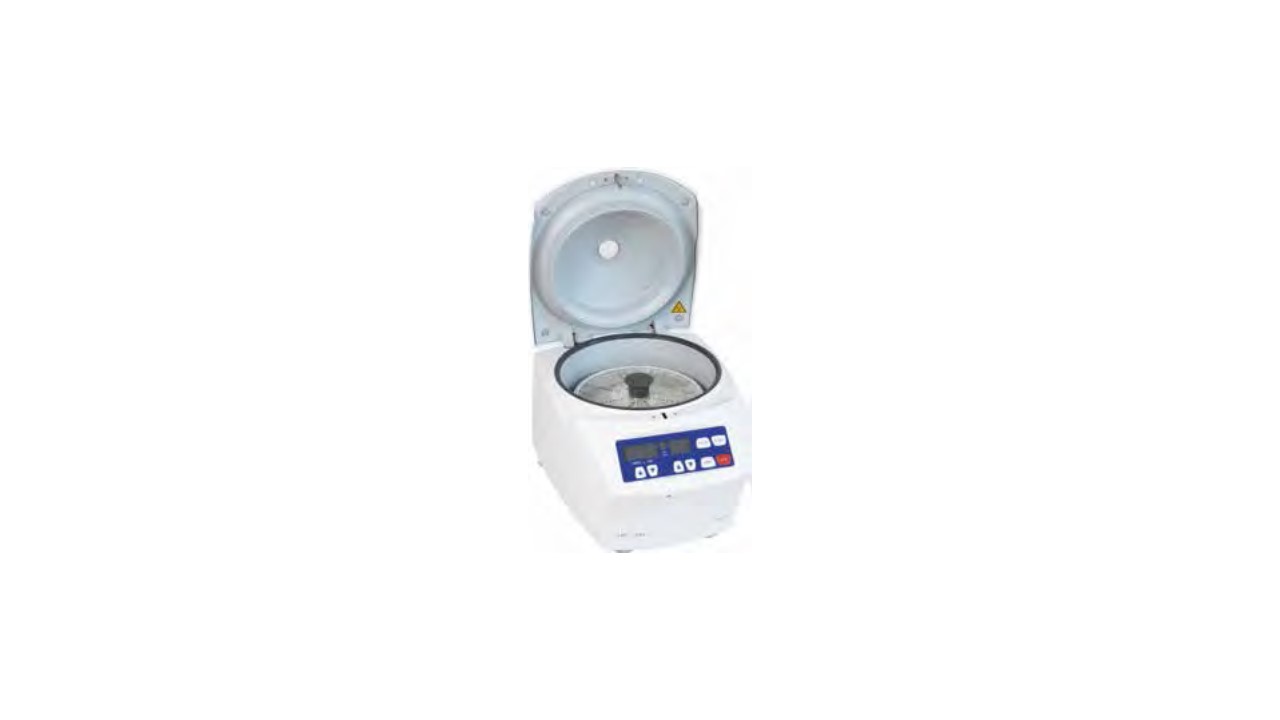

High-speed bench-top centrifuge for hematocrit determinations with
brushless frequency drive. At 16.060 g sedimentation is completed in just a
little over 6 minutes.
The HC-240 centrifuge includes a segmented hematocrit rotor for 24
capillaries. With the segmented hematocrit rotor every capillary has its
own chamber. If a capillary breaks, the fragments stay in this chamber or
segment without affecting other capillaries.
The lid of the rotor is evaluation disc and cover in one.
The hematocrit value can be read off the lid/evaluation disc right after
centrifugation.
Controls and displays:
During centrifugation the actual values of the parameters are indicated
The centrifuge’s speed and running time can be variably adjusted for different applications.
Speed display in RPM x 100, input in steps of 100
Time t/min: 1 – 99 min, continuous operation
Pulse key: For short centrifugation operations
Open lid key
Safety:
Lid locking and holding device
Emergency lid lock release
Lid closure of metal
Imbalance switch-off
Flexible motor bearings
Design:
Smooth plastic housing, easy to clean
Metal lid
Technical details:
Max. RPM (speed) / RCF: 13,000 rpm / 16,060 RCF
Noise level: ≤ 55 dB(A)
Dimensions in mm (HxWxD): 228 x 262 x 352
Net weight: approx. 11 kg
Emission / Immunity : EN / IEC 61326-1, class B / FCC class B
The HC-240 conforms to safety regulations such as IEC 61010, or the CE
mark and all relevant EC standards and DIN norms and has been manufactured
under ISO 9001:2008
Code Description:
BOE 01801-13 BOECO centrifuge HC-240, 208-240V, 50/60 Hz, with hematocrit rotor and lid as evaluation disc
