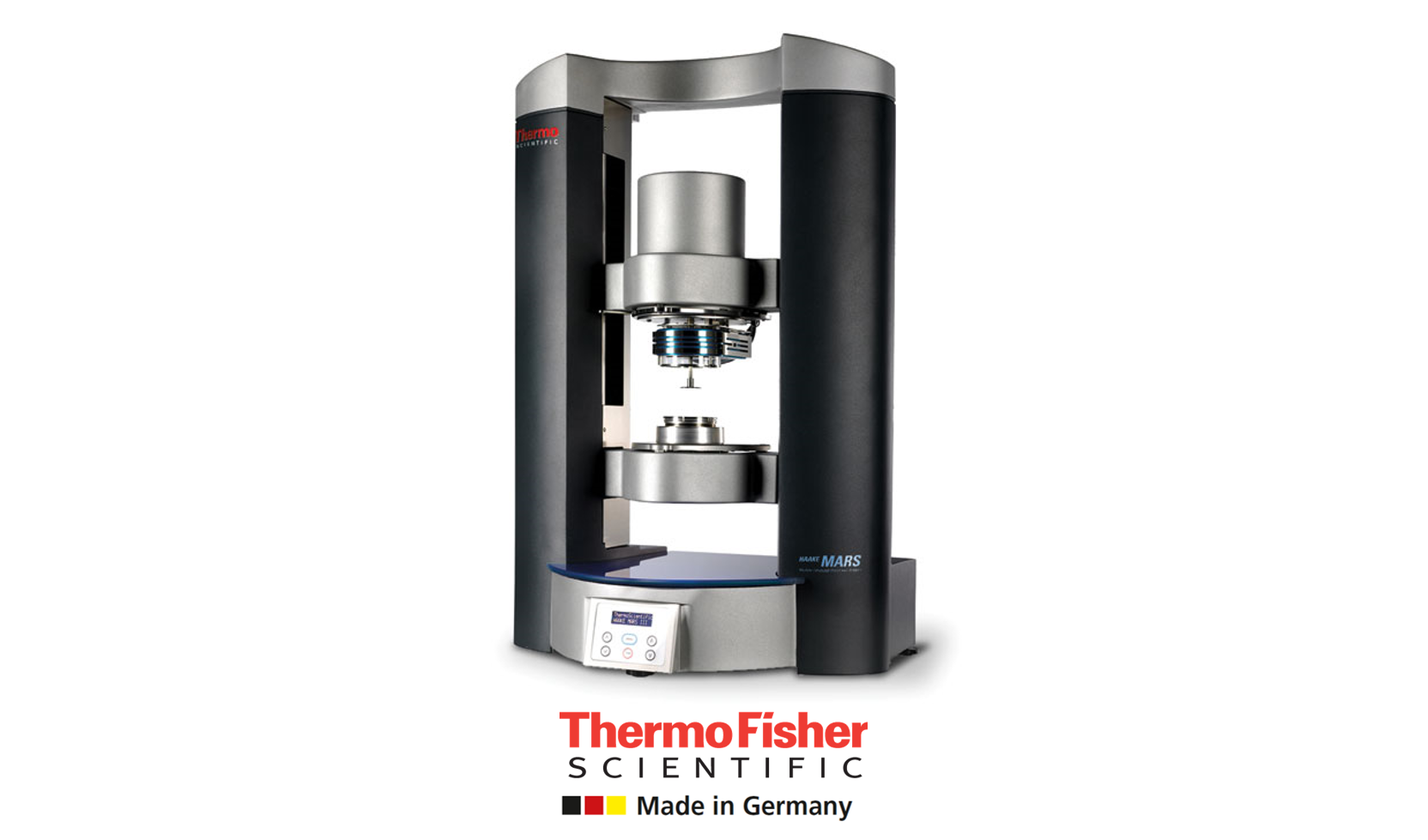

Technical data HAAKE MARS 40 HAAKE MARS 60
Min. torque rotation CS (nNm) 20 10
Min. torque rotation CR (nNm) 20 10
Min. torque oscillation CS (nNm) 10 2
Min. torque oscillation CD (nNm) 10 2
Max. torque (mNm) 200 200
Torque resolution (nNm) 0.1 0.1
Motor inertia (kgm²) 10-5 10-5
Motor type Drag cup Drag cup
Bearing type Air bearing:
2x radial, 1x axial
Air bearing:
2x radial, 1x axial
Angular resolution (nrad) 12 12
Min. rotational speed CS (rpm) 10-7 10-7
Min. rotational speed CR (rpm) 10-8 10-8
Max. rotational speed (rpm) 1500 (4500)a 4500
Step in velocity (ms) 10 10
Min. oscillation frequency (Hz) 10-6 10-6
Max. oscillation frequency (Hz) 100 100
Min. Normal force (N) 0.01 0.01
Max. Normal force (N) 50 50
Normal force resolution (N) 0.001 0.001
Max. lift travel (mm) 240 240
Gap resolution (µm) 0.5 0.5
Min. lift speed (µm/s) 0.02 0.02
Max. lift speed (mm/s) 20 20
Min. temperature (°C) b -150 -150
Max. temperature (°C) b 600 600
Dimensions W x D x H (mm) 600 x 600 x 890 600 x 600 x 890
Weight (kg) 59 59
