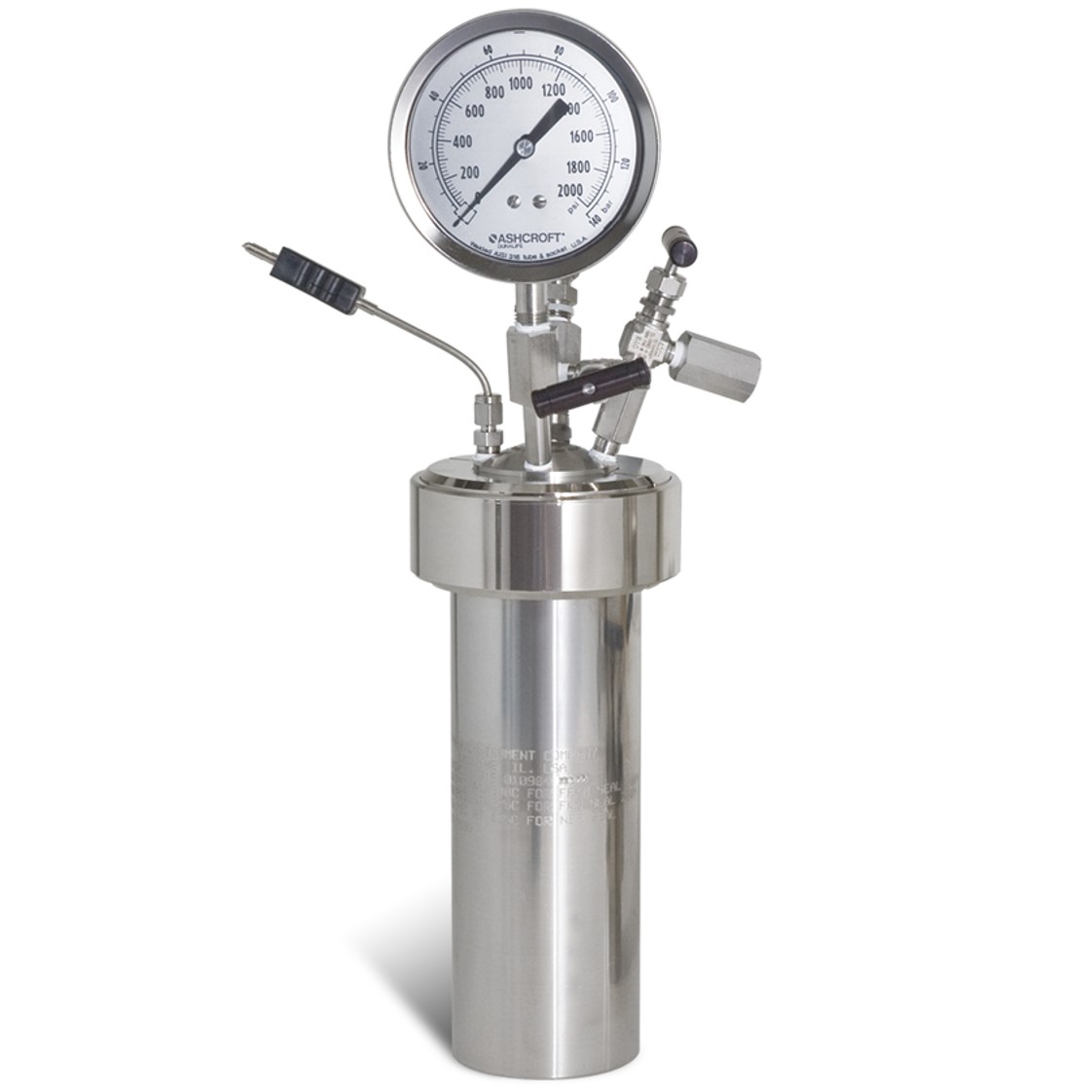

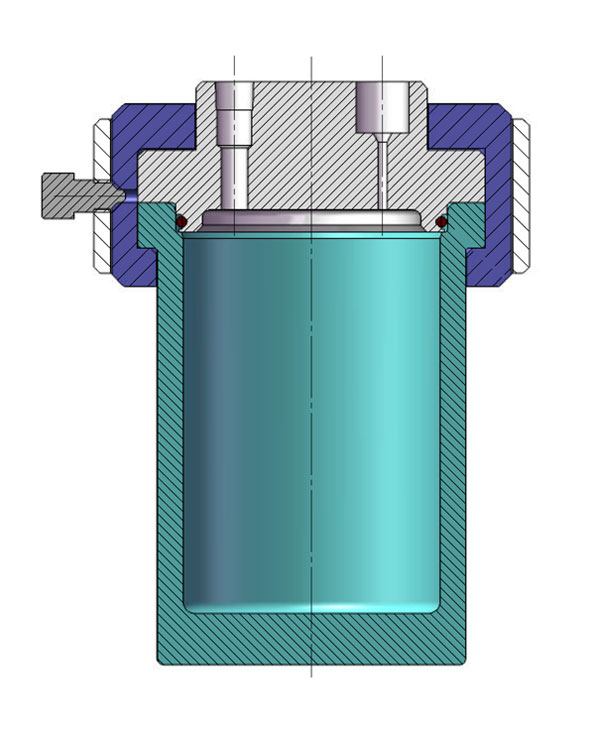

Choosing the high temperature option (HT) boosts the maximum temperature to 500 °C, but de-rates the MAWP to 2000 psi (138 bar). Standard Mini vessels can be converted to high temperature vessels (500 °C max temperature and 2000 psi MAWP) by chaing the head assembly (contains cone connections, high temperature valves, and grafoil gasket) replacing the heater with a ceramic fiber heater and replacing the split ring. Contact Parr for details.
Although internal and external space is limited on these small vessels, custom ports and fittings are available.
All vessels in this series can also be easily converted
from one size to another by simply substituting a longer or shorter cylinder with the corresponding internal fittings and heaters.
Clamp-on or mantle heaters are available for the
Series 4760-4777 moveable vessels. Stands with heaters are offered for the fixed head vessels.
The heaters furnished for non-stirred vessels are the same as those furnished for the stirred versions of the same size vessels. A full description of the different types of heaters is found in our Heater Options section.
Automatic temperature controllers are available for most all Parr non-stirred vessels.
Custom heaters are also available for these vessels when it is necessary to meet explosion proof requirements, to accommodate installed windows or fittings, or to convert to a welded jacket for steam or oil heating.
| Model Number | 4760 | ||||

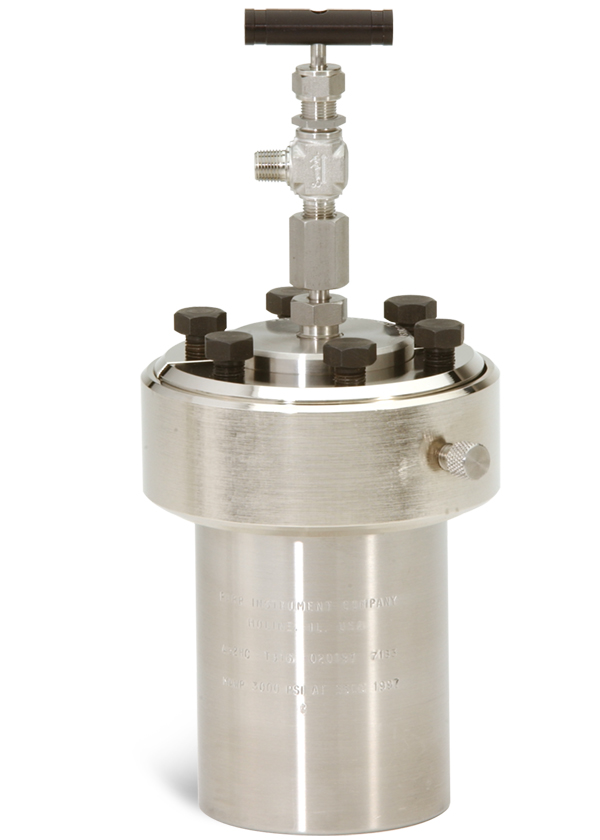

| Approximate Volume, mL | 100 | 160 | 300 | 450 | 600 |
| Maximum Pressure (MAWP) | 3000 psi (207 bar, 200 bar for CE orders) | ||||
| Maximum Pressure for HT (MAWP) | N/A | 2000 psi (138 bar) | |||
| Maximum Temperature | |||||
| with FKM O-ring | 225 °C | ||||
| with FFKM O-ring | 300 °C | ||||
| with PTFE Flat Gasket | 350 °C | ||||
| with Flexible Graphite Flat Gasket (HT) | N/A | 500 °C | |||
| Vessel Details | |||||
| Mounting Style | Moveable or Fixed Head | ||||

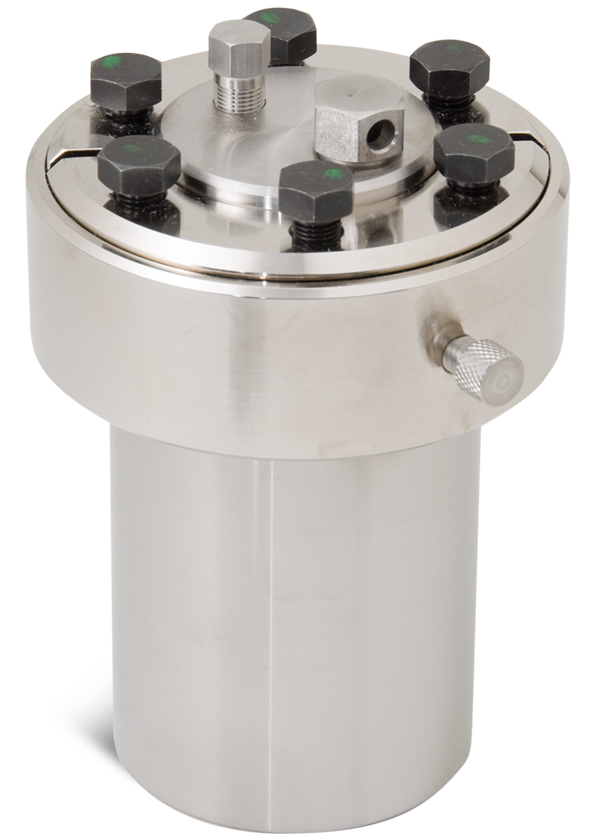

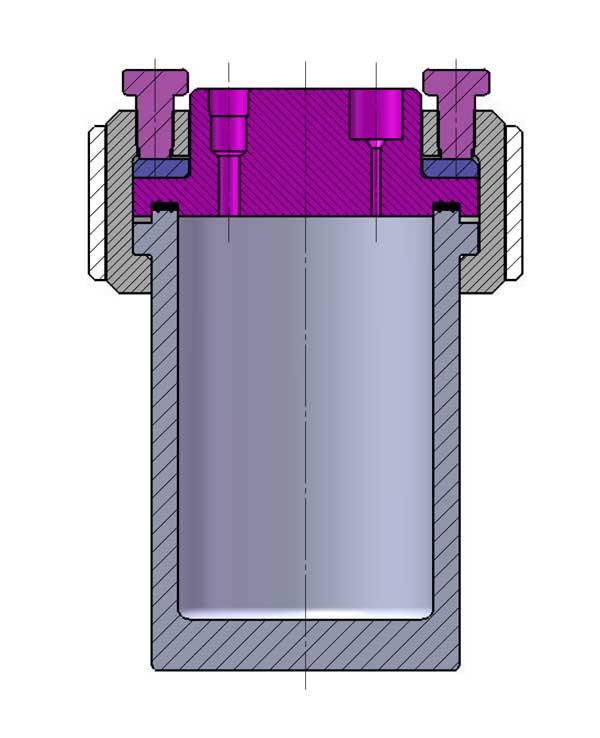

| Closure | Split-Ring (6 Compression Bolts for Flat Gasket, no Compression Bolts for O-ring) | ||||

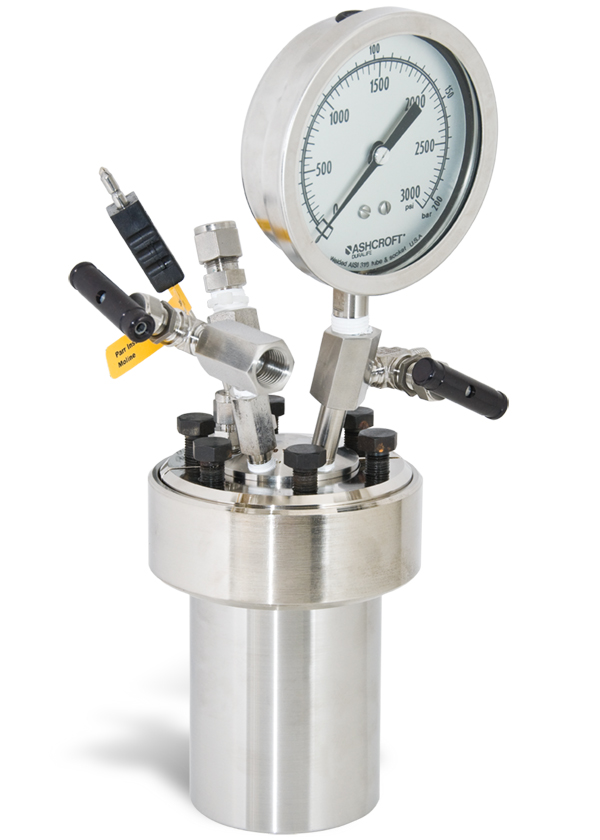

| Head Opening Options | One head opening (1/8″ NPT*, 1/4″ NPT*, “A” socket, or rupture disc assembly port) Ports for valve, gage, rupture disc, and thermocouple (VGR) Custom port option (Contact our technical sales department to discuss options) |
||||
| Maximum Head Openings | 7 (Dependent on opening size, and required fittings) | ||||
| Valve Connections | 1/8″ NPT Male, 1/8″ NPT Female for HT | ||||

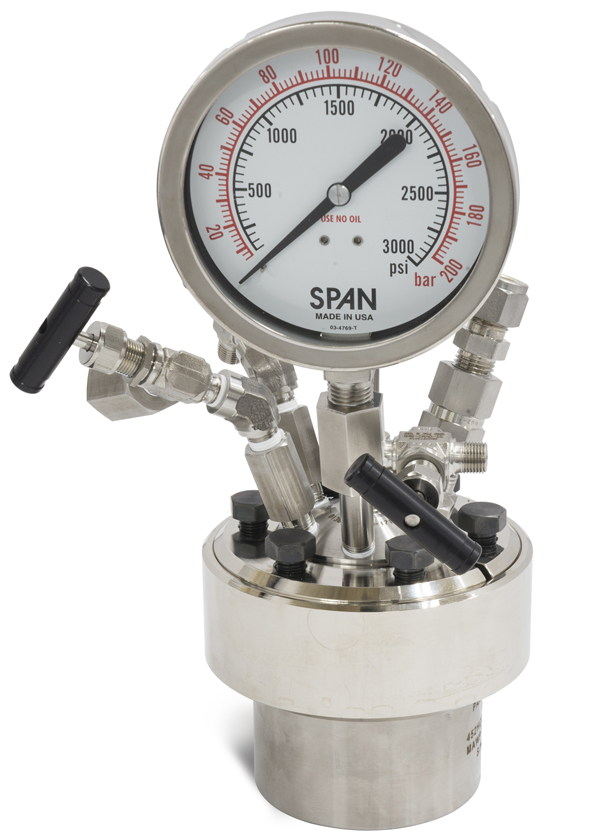

| Pressure Gage, Size | 3.5 inches | ||||
| Range, Standard Temp. | 0-3000 psi (207 bar) | ||||
| Range, High Temp. | N/A | 0-2000 psi (138 bar) | |||
| Temperature Measurement | Fixed Thermocouple (Thermowell for special alloys) | ||||
| Cooling Coil (optional) | N/A | Single loop | |||
| Bottom Drain Valve (BDV) (optional) | 1/4″ NPT (Not available on HT Models) | ||||
| * NPT ports are not available for vessels with a High Temperature (HT) rating. | |||||

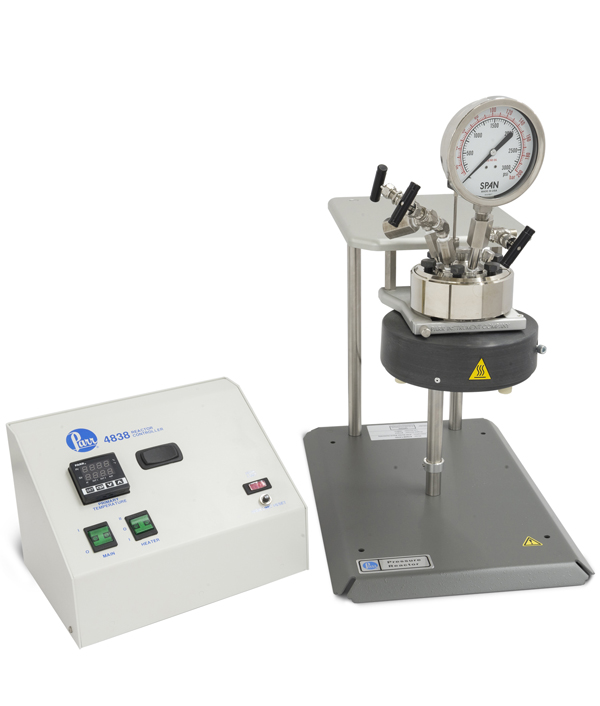

| Stand and Heater (optional) | |||||
| Stand Type | Heater Only (standard rated vessels only) and Bench Top Stand with Heater (standard rated vessels and high temp. rated vessels) | ||||
| Heater Style (Standard Temp.) | Clamp-on Band | Rigid Mantle | |||
| Heater Power, Watts | 525 | 510 | 590 | 780 | |
| Maximum Load, amps, 115V / 230V | 5/3 | 5/3 | 5/3 | 7/4 | |
| Heater Style (High Temp.) | N/A | Ceramic Fiber | |||
| Heater Power, Watts | 800 | 800 | 1100 | ||
| Maximum Load, amps, 115V / 230V | 7/4 | 7/4 | 10/5 | ||
| Weights & Dimensions | |||||
| Cylinder I.D. x Depth, inches | 2.0 x 2.0 | 2.5 x 2.0 | 2.5 x 4.0 | 2.5 x 6.0 | 2.5 x 8.0 |
| Vessel Assembly w/ Moveable Head Weight, pounds** |
14 | 13 | 14 | 15 | 17 |
| Vessel Assembly w/ Fixed Head Weight, pounds** |
15 | 14 | 15 | 17 | 18 |
| Cylinder Weight, pounds | 3.3 | 2.4 | 3.7 | 4.9 | 6.2 |
| ** Vessel Assembly weight varies based on head configuration choice and fitting options. Weights shown are based on vessels with valve, gage, rupture disc, thermocouple, and double valve assembly. | |||||
