ריאקטור מעבדתי לטמפרטורה ולחץ גבוה מסדרת 4530

תיאור

Series 4530 1-2L Floor Stand Reactors can be moved, modified to fit your needs, and configured for polymer studies. They are also available in high pressure versions.

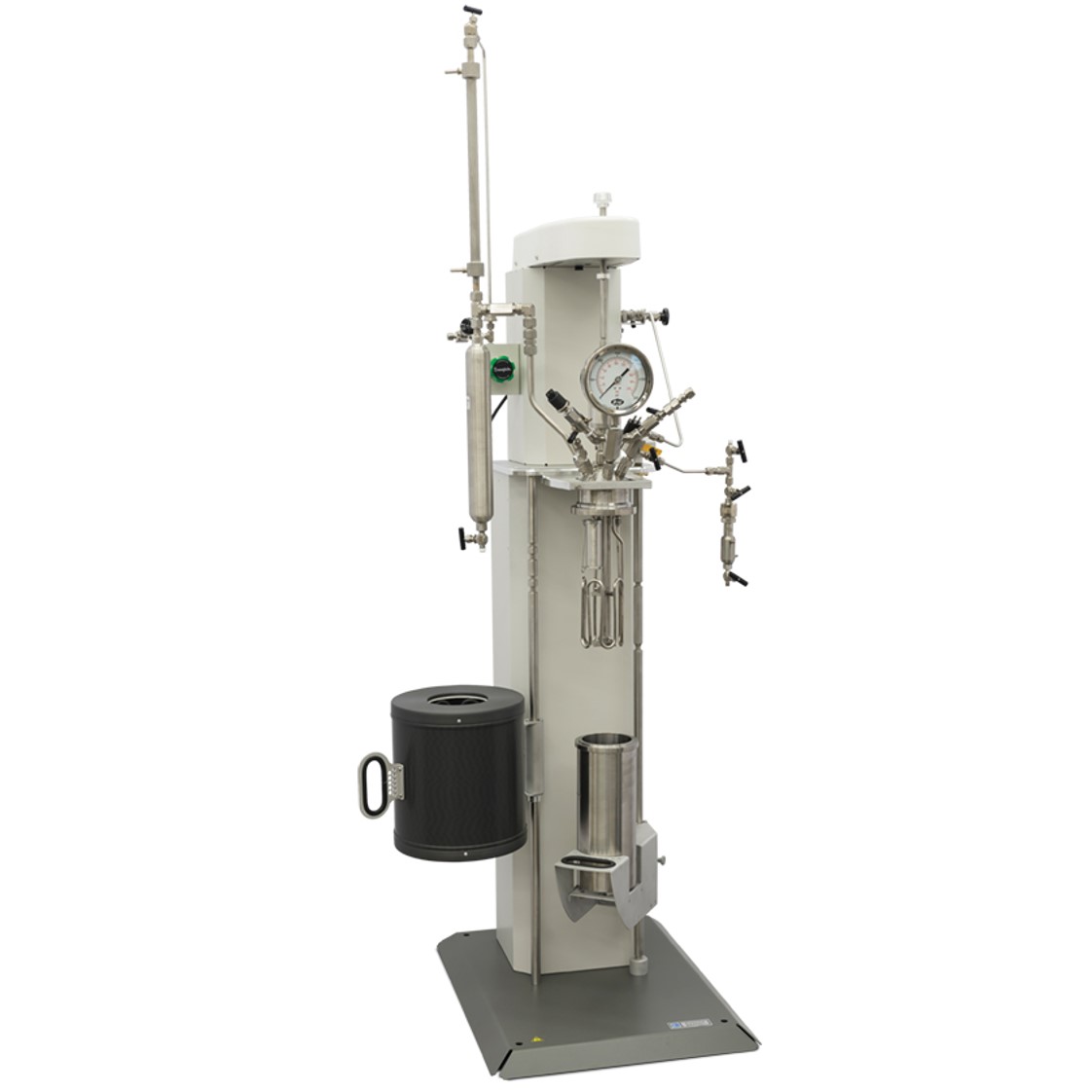

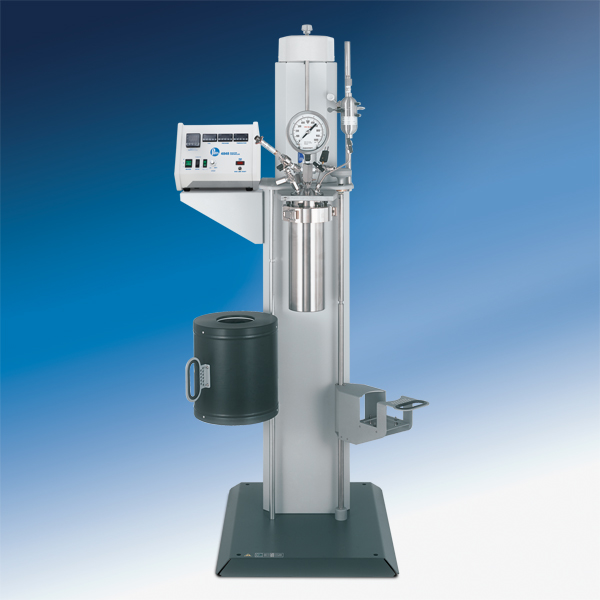

Reactors Configured for Polymer Studies. The floor stand reactors in this series are mounted on a sturdy stand which will accommodate larger stirrer drive motors and stronger power trains than are generally available for the bench top models. With these options it is possible to provide the high torque and low stirring speeds required for work with polymers and other mixtures with viscosity of 1 million centipoise and more. These mountings are also better suited for the installation of a drain valve in the cylinder bottom for convenient removal of the reaction mixture while it is still hot.

Reactors Requiring Extensive Modifications. Floor stand mountings provide a good base for reactor modifications and for the addition of accessories, such as: condensers, packed columns, special motors, special heaters, jacketed vessels, automatic valves or regulators, and many other fittings. Both fixed head and moveable vessel designs are available.

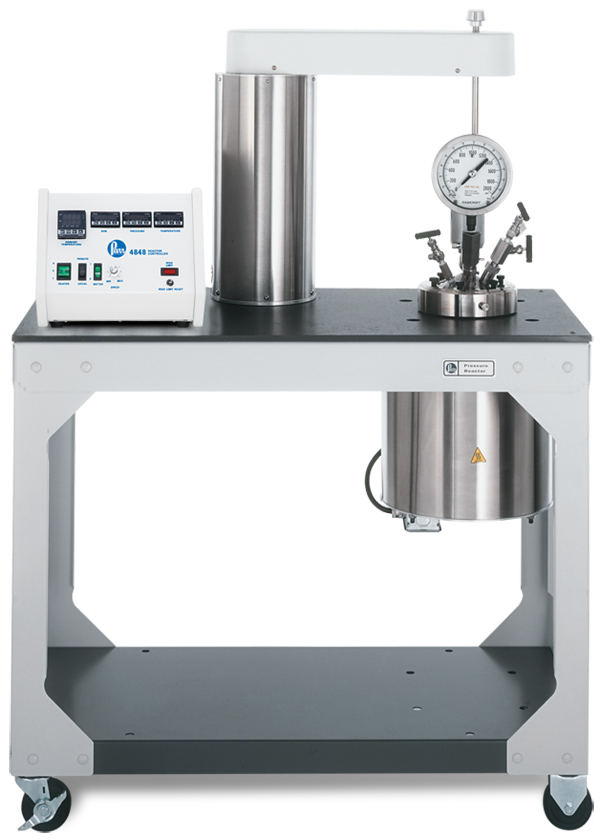

Reactors that Need to be Moved. These floor stand reactors are designed for use in an area where a bench top is not available. Users who wish to move the reactor to storage when not in use, will appreciate the movable cart design of the Series 4531 and 4532. All of the 1 and 2 liter reactors in this series can be furnished with either a self-sealing, O-ring closure for working temperatures up to 225 °C, or with a flat, PTFE gasket for higher temperatures to 350 °C.

High Pressure (HP) versions. These floor stand reactors are now available in an HP version up to 3000 psi (200 bar) at 300 °C.
