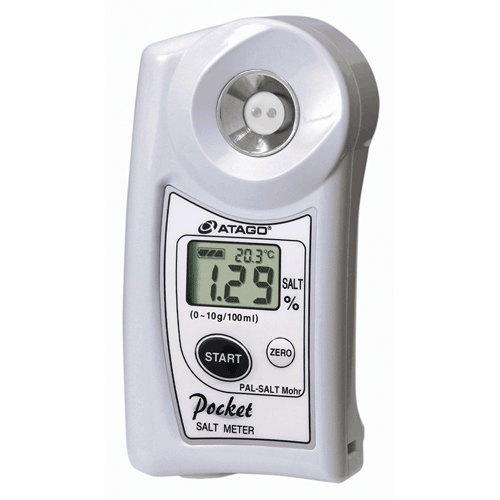

PAL-SALT Mohr gives a reading similar to those obtained from the Mohr’s method (titration). Like other ATAGO salt meters, PAL-SALT Mohr utilizes conductivity to measure samples. This unit also features an offset function which allows for readings to be compensated based on known standards. Additionally, when measuring a sample that has been diluted by 10 (ex. 10 grams of sample mixed with 90 grams of water), the salt concentration displayed will represent salt content before dilution.
Specifications
| Model | PAL-SALT Mohr |
|---|---|
| Cat.No. | 4251 |
| Scale | Salt concentration (g/100mL) Temperature |
| Measurement Method | Conductivity method |
| Measurement Range | 0.00 to 10.0% (g/100mL) of salt concentration 5.0 to 100°C |
| Resolution | 0.01% for salt concentration of 0.00 to 2.99% 0.1% for salt concentration of 3.0 to 10.0% 0.1°C |
| Measurement Accuracy | Displayed value ±0.05% (for salt concentration of 0.00 to 0.99%) Relative precision ±5% (for salt concentration of 1.00 to 10.0%) ±1℃ |
| Sample temperature | 5～100℃ |
| Ambient Temperature | 10～40℃ |
| Sample Volume | At least 0.6mL |
| Measurement Time | Approx. 3 seconds |
| Power Supply | Size AAA alkaline batteries × 2 |
| Offset feature | Yes |
| International Protection Class | IP65 Dust-tight and Protected against water jets. |
| Dimensions & Weight | 55(W)×31(D)×109(H)mm, 100g (Main Unit only) |
