APPLICATION
Ensuring the usage of certified compliant electrical equipment is vital for health and safety officers; operation directors; and any other decision makers in quality and safety control who play a role in inspecting or maintaining electrical installations in an explosive atmosphere.

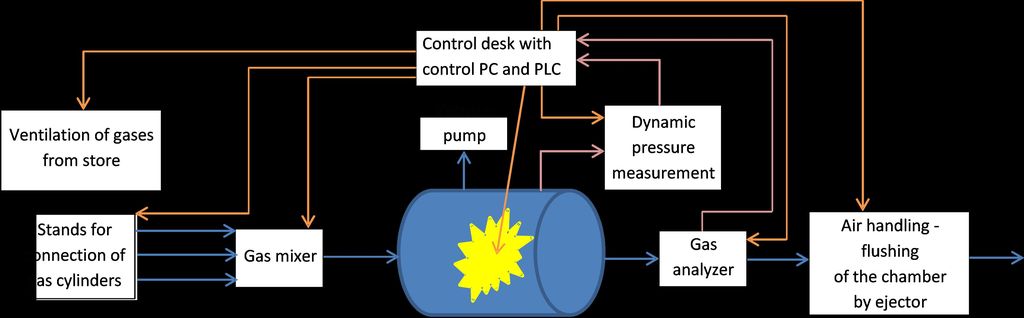

A schematic representation of the offered technology; the blue arrows indicate the direction of the gas flow; the purple arrows indicate the collection of data from the measuring device to the control PLC and PC the orange arrows show the direction of control commands.
ADVANTAGES & FEATURES
- Robust design of chamber with testing pressure of up to 70 barg
- Fully automated system equipped with the Swagelok instrumentation
- Sizes of the chamber can be customized according to client´s requirements
- Automatic generation of explosive atmosphere without loss of material through the PLC control
COMPLIANCE
- EN 60079-1. Technology enables testing of electrical device, which are intended for use in explosive gas atmospheres according to EN 60079-1 Electrical Apparatus for Explosive Gas Atmospheres – Part 1: Flameproof enclosure “d”
