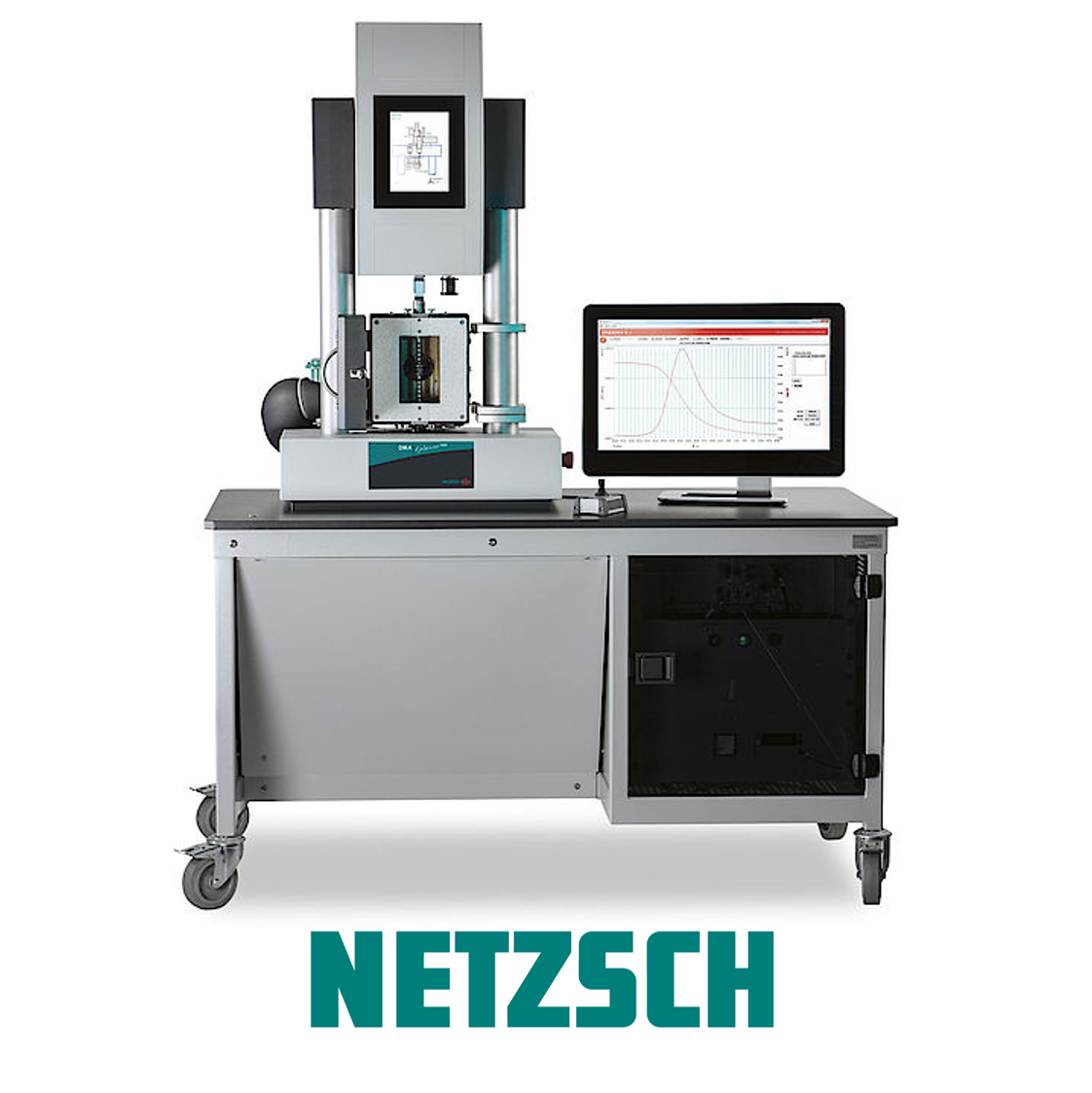

The modular design of the high-force DMA/DMTA systems allows for measurements in the tension, compression, bending and shearing modes. The testing machines in this series differ from each other mainly in terms of their maximum dynamic force ranges of ±25 N, ±100 N, ±150 N and ±500 N.
Various add-on options make these testing machines a safe investment for the long-term.
All testing machines in this series are conform to standards such as DIN 53513, ISO 6721/1, ISO 6721/4, ISO 6721/5, ISO 6721/6, ISO 4664, ASTM D4065, and ASTM D4473.
Flexible and Set for the Future
…by means of a variety of force and strain sensors as well as furnaces which allow for easy upgrades to the basic system at any time after the first installation
High Force Levels
…allowing for static loads up to 500 N (optional: up to 1500 N) and dynamic loads up to ± 500 N; especially meaningful for investigations on curable resins, elastomers, composites, metals, glasses or ceramics
Two Independent Drives
…featuring a servo motor for static and a shaker for dynamic loads
Interchangeable Force Sensors
…which can be easily changed out by the operator; nominal loads available ranging from ±10 N to ±2500 N
24/7 Operation via the Automatic Sample Changer
…for tension, compression and bending samples across the entire temperature range around the clock
Optimized for Temperature Sweeps on Large Samples
…thanks to uniform heating of even large samples with low thermal conductivity (e.g., large rubber specimens)
Highly Economic LN2 Cooling
…for low liquid nitrogen consumption
Simultaneous Determination of Dynamic Mechanical and Dielectric Material Properties
-
Temperature range:
-160°C to 1500°C (temperature range covered by three furnaces)
-
Frequency range:
0.01 Hz to 100 Hz; optional 0.0001 Hz and 200 Hz
-
Static force range:
up to 500 N and optional 1500 N
-
Dynamic force range:
± 500 N, ± 150 N, ± 100 N, ± 25 N
-
Force sensor:
interchangeable; nominal forces available from ±10 N to ±2500 N
-
Blade springs:
counteract the static forces and allow for independent superposition of the dynamic forces
-
Static displacement:
60 mm
-
Dynamic displacement:
available strain sensors: ± 1.5 mm, ± 3 mm and ± 6 mm (depending on the EPLEXOR model)
-
Supplementary analysis modes:
creep, relaxation, fatigue, heat build-up, curing, tensile tests, rolling resistance of tires, tackifying
-
Max. sample dimensions (inside the standard furnace):
- tension: 80 mm x 10 mm x 10 mm (80 mm length)
- shear: ∅ 4 mm to 20 mm (standard: 10 mm)
- 3-point bending: up to 70 mm free bending length (up to 120 mm sample length)
-
Sample holders:
3/4-point bending, tension, shear, compression, single/dual cantilever bending, asymmetric bending, curing/liquids, immersion tests, for fiber bundles; holder for T and H tests (tire cords)
- Automatic sample length detection or thickness determination possible in tensile, compression and bending geometries
