The electronics within the system automatically identify which furnace is currently in use.

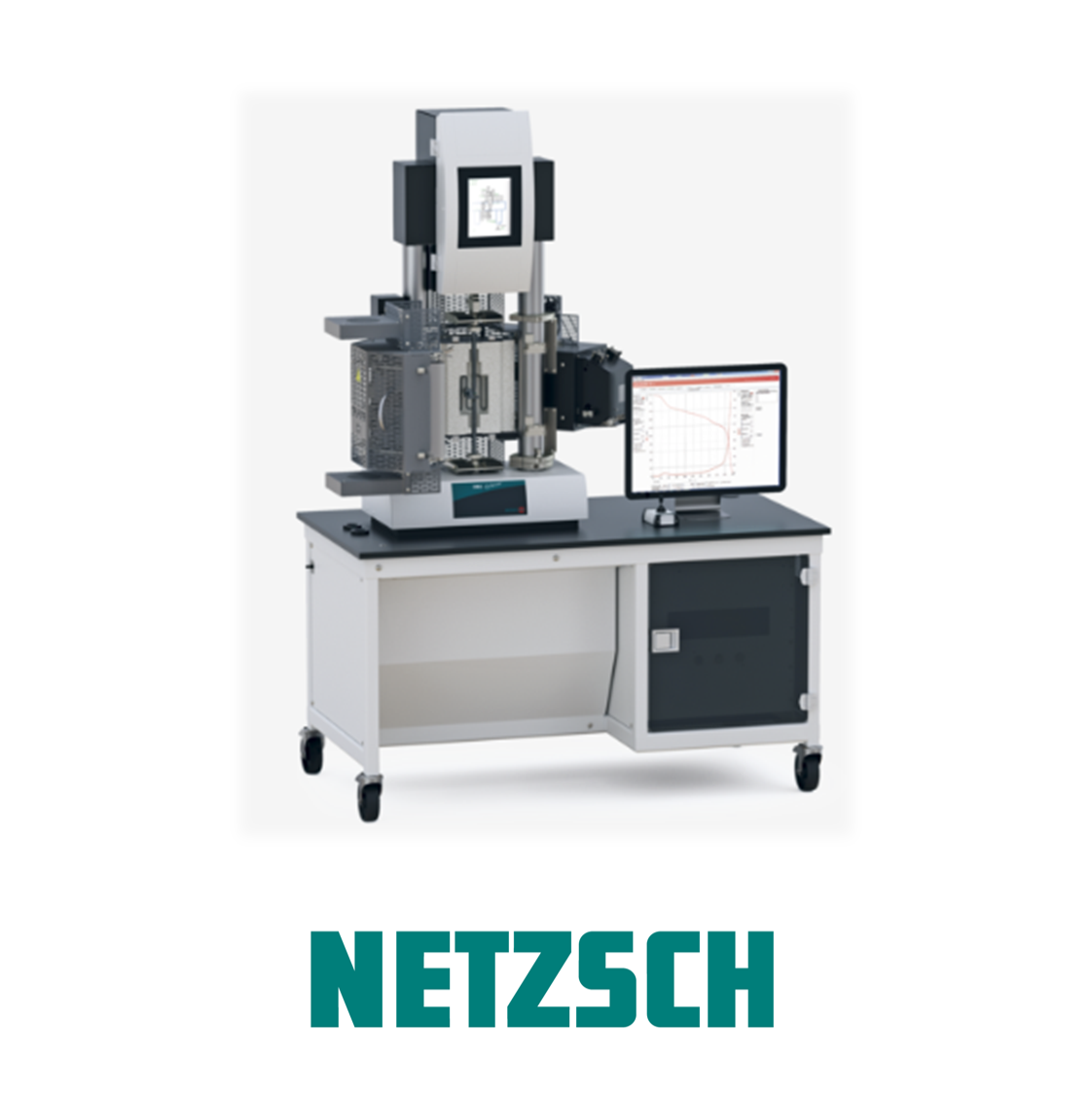

The following EPLEXOR® HT DMAs are available:
| Instrument Type | Max. Static Force | Max. Dynamic Force *) |
|---|---|---|
| EPLEXOR® 25N HT | 1500 N | ± 25 N |
| EPLEXOR® 100N HT | 1500 N | ± 100 N |
| EPLEXOR® 150N HT | 1500 N | ± 150 N |
| EPLEXOR® 500N HT | 1500 N | ± 500 N |
Key Technical Specificationis
(subject to change)
-
Temperature range:
-160°C to 1500°C; the full temperature range can be covered if the instrument is equipped with the low-temperature and one high-temperature furnace
-
Frequency range:
0.01 to 100 Hz; optional: 0.0001 Hz; 200 Hz
-
Static force range:
max. 1500 N
-
Dynamic force range:
from ± 25 N up to ± 500 N (depending on instrument type, see table)
-
Force sensor:
interchangeable; nominal forces available from 10 N to 500 N (depending on the instrument type and configuration)
-
Static displacement:
max. 60 mm
-
Dynamic amplitude:
from ± 1.5 mm up to ± 6 mm (depending on the instrument type and system configuration)
-
Measurement modes for applications above 500°C:
asymmetric and 3/4-point bending, compression
-
Work space of the high-temperature furnaces:
cylindrical chamber, diameter: 70 mm, height: 120 mm
