INTEGRA DOSE IT Peristaltic Pump
  • לקטלוג המוצר

  • לאתר היצרן

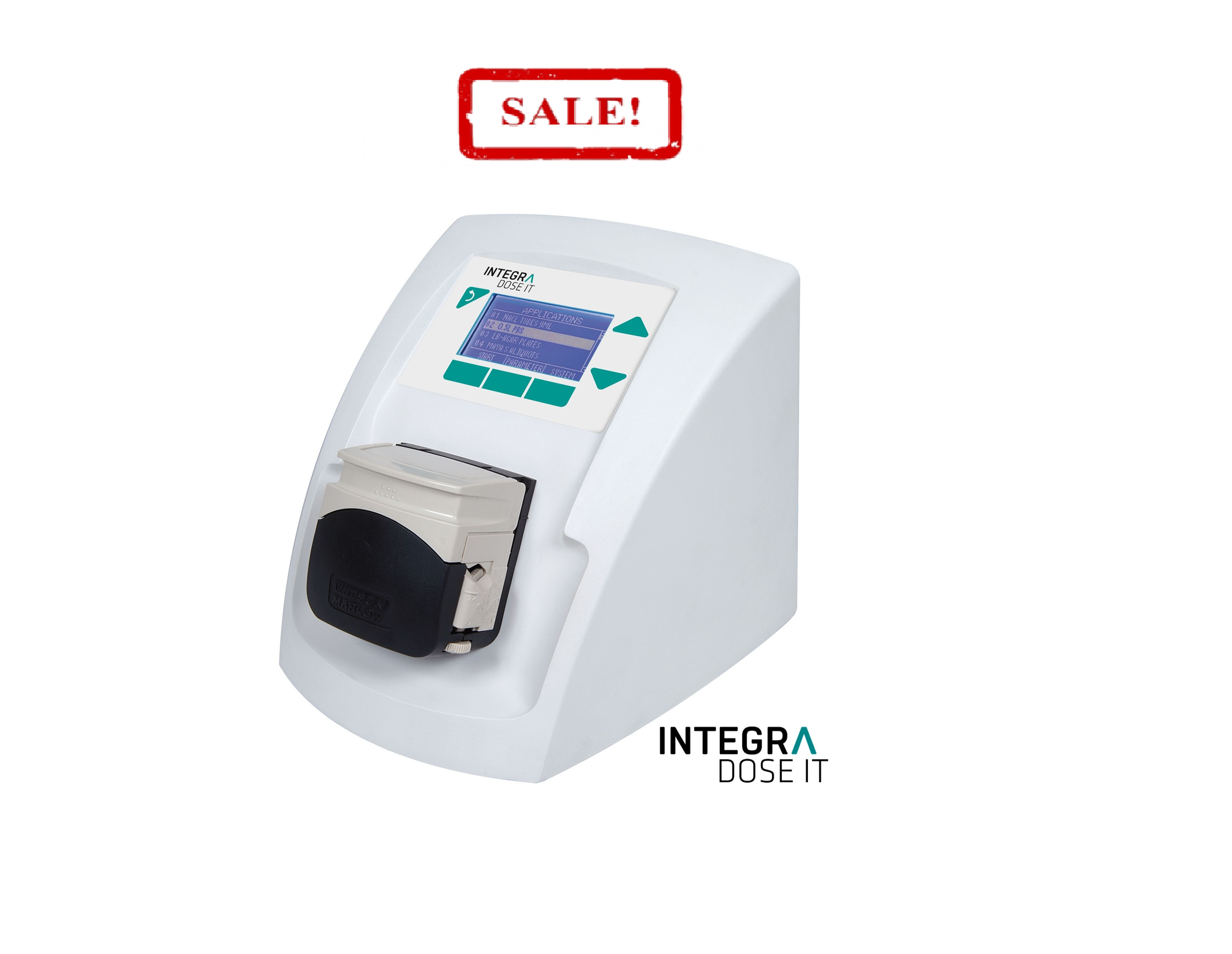

DOSE IT – Peristaltic Pump

DOSE IT offers easy handling and straight-forward setting of parameters.

It is light weight, fits everywhere in the lab and can bemoved easily.

The large display and the intuitive user interface make it very easy to set the parameters and operate DOSE IT.

Simply choose a dispensing protocol and press run.

DOSE IT LOGO

מק"ט: DOSE IT. קטגוריה: . תגיות: , .

תיאור המכשיר

Features

Easy handling

dose_it_2

The intuitive user interface coupled with the large display makes it extremely simple to program and operate the DOSE IT. Twenty different dosing protocols can be saved and recalled by pressing a button. The setting of all functions and parameters is self-explanatory so that with minimal learning time everybody can start working immediately. The flip-top pumphead for easy tube loading further reduces the time for preparation and set up of the pump.

Compact and portable

dose_it_3

With its very small footprint and light weight, DOSE IT fits everywhere in the lab and can be moved easily – no need to waste valuable bench space or to have a pump in every lab. The smooth and rounded surface makes it easy to clean. The position of the pumphead, display and keypad is optimal for ergonomic working.

Versatility

dose_it_4

The DOSE IT pumphead accommodates different tubing sizes (1 to 8 mm) so that a wide range of volumes can be dispensed with speed and precision. The dispensed volume can range from hundred microlitres to several litres – typical applications include the filling of tubes with liquid broth, the pouring of Agar plates, the filling of bottles with buffers or the aliquoting of stock solutions. The versatility of the DOSE IT reduces the need to have several single-purpose pumps in a lab.

Wide range of volumes: typical volume and flow values for different tubing sizes.
Tubing inner diameter (ID)
1 mm
2 mm
3 mm
4 mm
6 mm
Dose volume (ml) at CV* <1 %
>0.5 ml
>1 ml
>3 ml
>7 ml
>15 ml
Flow rate range (ml/min)
0.6 – 52
2.1 – 203
4.8 – 475
8.4 – 837
16 – 1’634

*Coefficient of variation (CV), a measure for the reproducibility of dosing.

8 mm ID silicone tubing recommended for pumping applications only.



Process documentation

dose_it_5

DOSE IT provides all features necessary to support the individual needs in quality control. All process relevant information can be documented using a standard label printer (e.g. the EPSON TM-U220) or by directly transferring the information to a personal computer.


Applications

Media dispensing

dose_it_6_gr

The peristaltic pump DOSE IT is designed to make the dispensing of culture media, buffers and other solutions easy and efficient. The simple programming and straightforward operation of the DOSE IT is ideal for laboratories where several different dispensing protocols are frequently used.

Customized Applications

DOSE IT allows the setup of complex dosing patterns. Customized applications may include:

Coating or washing of Petri dishes
Coating Petri dishes is a common task in tissue culturing laboratories. Using the CUSTOMIZE mode allows defining an efficient protocol for coating or washing a defined number of Petri dishes. Coating/washing solution can be added and removed in series, making the application fast and reliable.
Serial dilutions
Serial dilutions are extensively used in microbiological testing as part of the sample preparation for the total viable cell count in food. By programming an air gap before taking up the sample into the prefilled tubing system, the CUSTOMIZE mode allows you to efficiently carry out serial dilutions.

Filling of density gradient tubes
Density gradient centrifugation is frequently used to separate different cell types or cell organelles, ribosomes or DNA from crude cellular extracts. The CUSTOMIZE mode permits gentle and fast building of density step gradients. To avoid stirring up the different layers, dispensing starts gently at a low flow rate and then ramps up to the target speed.


Specifications

Dose volume  0.1 ml – 9’999 ml
Flow rate 0.6 ml/min – 5 l/min
Tubing inner diameter 1 – 8 mm
Tubing wall thickness 1.5 mm
Dimensions (H x W x D) 203 x 210 x 191 mm
Weight 3.5 kg
Interface 2x RS232
Input voltage 100 – 240 VAC 50/60 Hz

 Model Descriptions
Part No.
DOSE IT P910

Peristaltic pump complete with

1 Silicone tubing, inner diameter 4 mm, length 2.5 m

2 Aspiration / dispensing tubes, length 10 cm, stainless steel, one end dented

1 Aspiration / dispensing tube, length 35 cm, stainless steel, one end dented

1 Tube collar

1 Pipette-tubing connector

Mains adapter

171 000
 Model Descriptions Part No.
Foot switch
for hands-free operation, with connecting cable
143 200
Benchtop switch
for hands-free operation, with connecting cable
171 081
Retort rod with filling arm
retort rod diameter 10 mm
171 091
Extension pumphead
for double pumphead assembly
171 090
Silicone tubing set
for double pumphead, inner diameter 8 mm, length 3.0 m
171 088
Pipette-tubing connector for connecting pipettes to 2 – 6 mm inner diameter silicone tubing, autoclavable, 5-pack
171 077
ID (mm)
Aspiration / dispensing tube length 10 cm, stainless steel, one end dented
1
171 051
2
171 052
3
171 053
4
171 054
6
171 056
8
171 058
length 35 cm, stainless steel, one end dented
4
171 064
6
171 066
8
171 068
Tube collar

Used as a weight for the aspiration tube or as a clamp spacer for the dispensing tube
1 – 3
171 071
4 – 6
171 074
