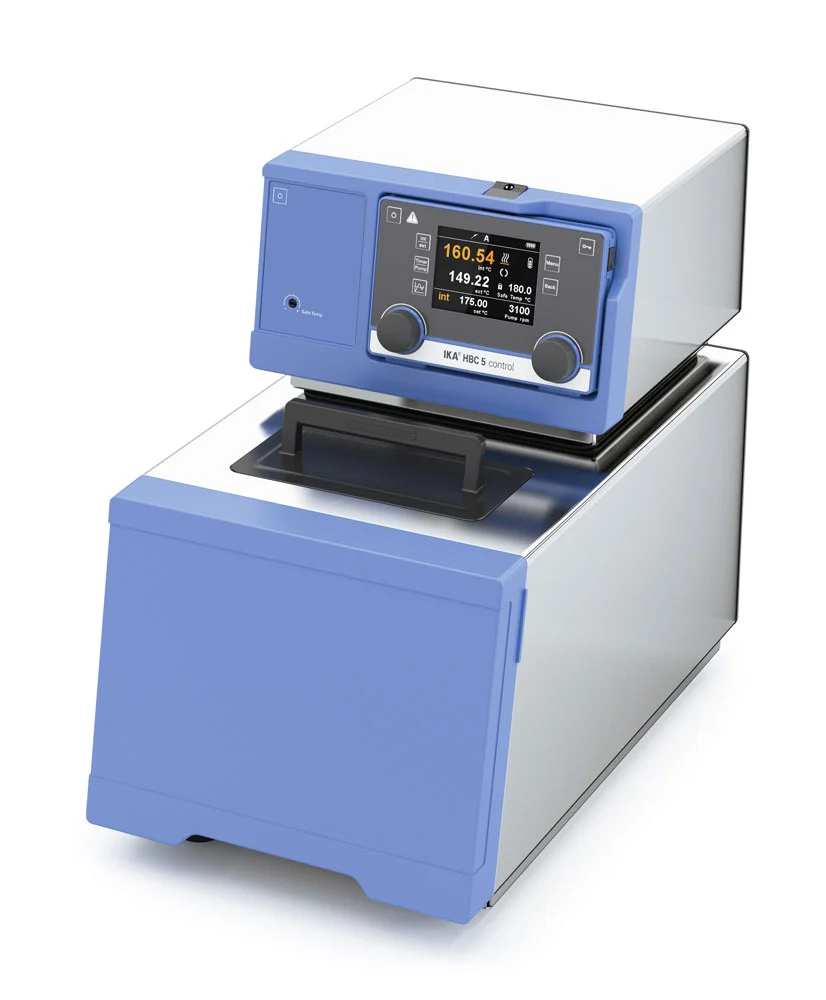

IKA HBC 5 control

HBC 5 control

The HBC 5 control heated bath circulator heats up to a max. temperature of 250 °C. It has a high quality stainless steel bath with a volume of 5 – 7 liters. The TFT display is in color and illustrates all relevant parameters. With just one key, the internal temperature regulation can be switched to external temperature regulation. The large surface of the radiator allows for an optimum heat exchange and a gentle heating process of the medium. Push and turn buttons allow for intuitive menu navigation. The menu comes in different languages. The bath has a front drain valve for safe emptying. In order to drain the bath, a hose is connected so there is no direct contact with the tempering fluid. With the unique WiCo Wireless Controller, the unit can be operated from a distance of up to 10 meters/3 ft.

תיאור

Temperature range: 20 – 250 °C
Temperature accuracy: ± 0.01 K
Wireless Controller (WiCo) enables safe operation, e.g. outside of a closed fume hood
Large easy to read TFT display for temperature, pump speed, filling level and safety temperature.
Integrated cooling coil
Powerful, speed controlled pressure/suction pump
Adjustable safety circuit
Safety classification III (FL) according to DIN 12876
Timer function: 0 – 99 h 59 min
Visual and acoustic safety warning
Connection of a magnetic valve possible
USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as updating the device software through our website

Scope of delivery

HBC 5 control
Hose olive NW 12 (2 pcs.)
CC1
Screwdriver (use for safety circuit)
OS 1.0 power supply (for WiCo)
USB Cable – USB A to Micro-B, 2 m
USB 2.0 cable Micro A – Micro B
