The high-quality Isolation of the 4 l bath allows fast heating and reduces heat input when cooling. Using the external temperature control circuit is possible for up to 2,5 l thermofluid without a refill.
The integrated hopper and drain valve ensure a safe and clean handling of the thermofluid. The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.There is a drain valve on the front side of the bath. A hose can be connected to empty the bath, so the user does not get in direct contact with the thermofluid.

• Speed-controlled refrigeration system unit with 400 W cooling capacity
• Speed-controlled PEEK pump (0,5 bar; 22 l/min)
• 1500 W heating capacity
• digital level indicator
• Safety classification III (FL) according to DIN 12876
• Adjustable temperature safety circuit

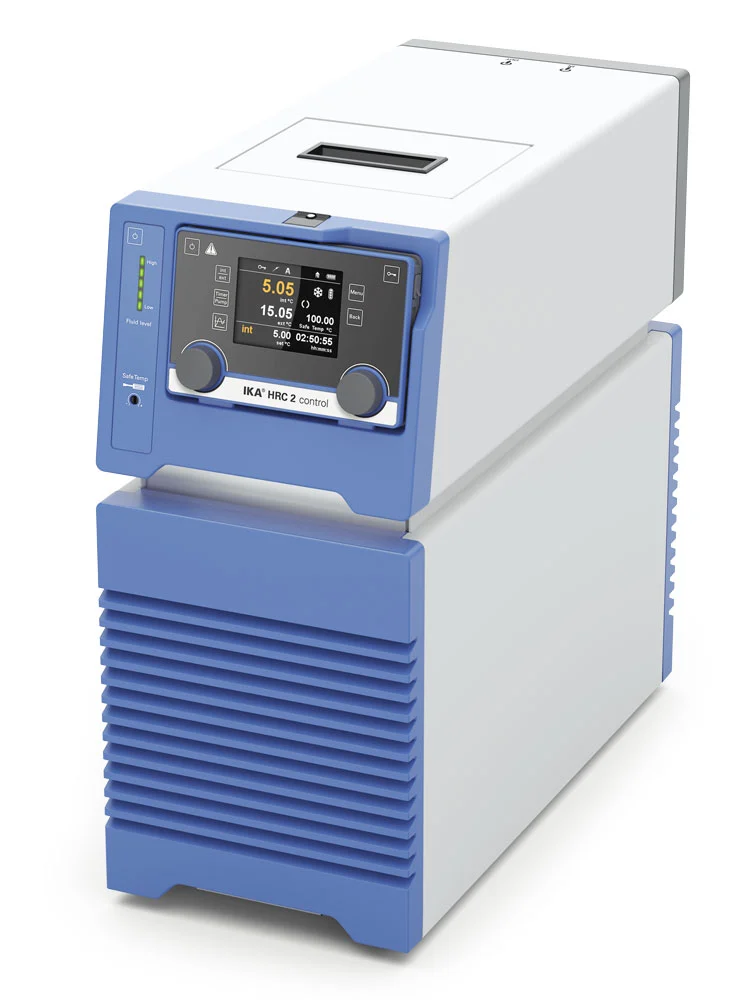

With the Wireless Controller (Wico) the HRC 2 control can be operated safely and conveniently everywhere. Processes can be automated and simplified through 10 freely programmable temperature ramps with each 10 steps.

Additional features of the control device:

• Operating Mode D (Confirmation Mode)
• Signal if Set Point is reached
• Timer/Counter
• outgassing function for Labreactors

Interfaces:

• Connection socket for external PT 100 temperature sensor (Accessory: PT100.30; Lemo connector)
• Connection of magnetic valves possible (Mulit IO)
• Alarm contact (Multi IO)
• Connector for Standby contact input (Multi IO)
• RS 232
• USB
