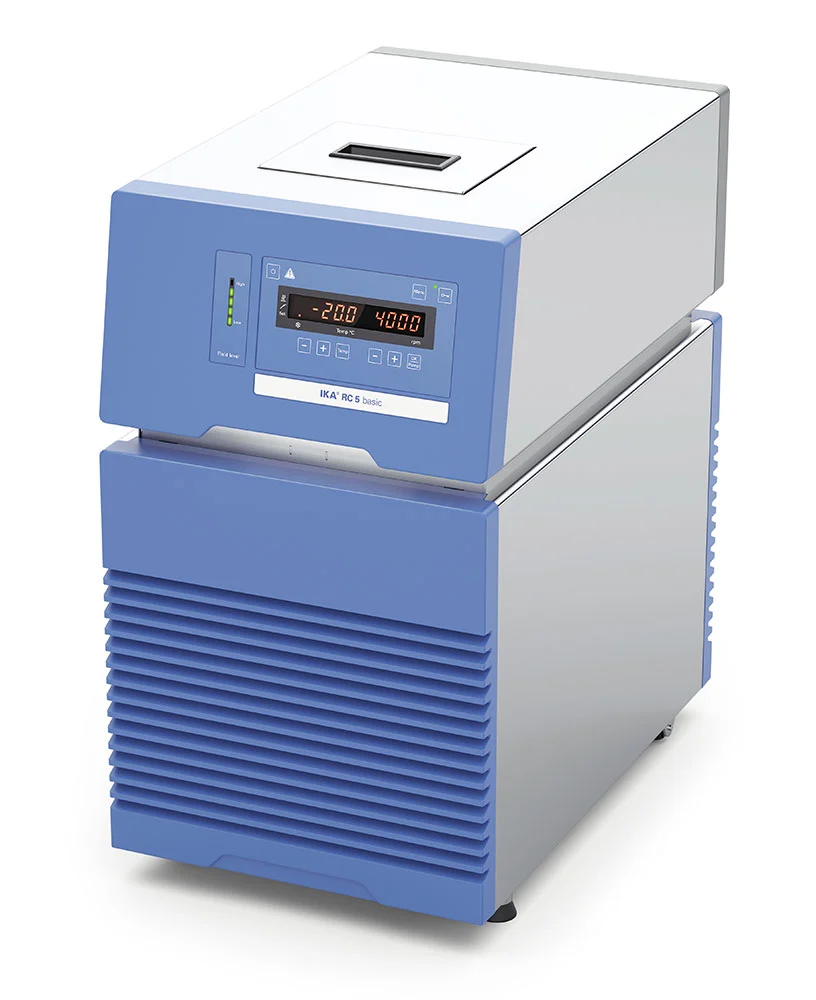

The speed-controlled PEEK pump allows an indirect, continuous adjustment of the maximum pressure and flow rate. Due to its excellent temperature stability of about ± 0,1 K, the RC 5 can handle even sophisticated applications. The isolated, high-quality 7l bath has an integrated hopper and drain valve, ensuring a safe and clean handling of the thermofluid. A hose can be connected to empty the bath in order to avoid direct contact with the thermofluid. The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.

Key Features

• Speed-controlled refrigeration system with 1400 W cooling capacity (@20°C)
• Natural thermofluid R290
• Designed for cooling applications up to -30°C – RT
• Extended operating temperature range until 80°C
• Excellent temperature stability of about ± 0,1K (@-10°C)
• Speed-controlled pump made of PEEK: (0,6 bar; 31l/min)
• Digital level indicator

Interfaces:

• RS 232 and USB

Scope of delivery

• RC 5 basic
• Hose olive NW 8 (2 pcs.)
• Hose olive NW 12 (2 pcs.)
• USB Cable – USB A to Micro-B, 2 m
